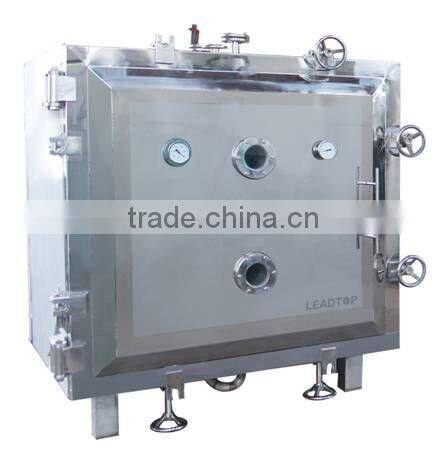

FZG-12 Vacuum Dryer
This machine special for drying of the raw materials which are easily damaged under high temperature. Because the machine is low temperature in vacuum situation drying.
If sterilized before drying, there will never get other object or bacteria contains in raw materials.
This machine is widely used in Chemical, pharmaceutical, food and electronic industry, because of its low temperature drying never destroy raw materials.
1. The machine adopts vacuum pump for sucking the air and moisture from the inner machine, make the raw materials are under vacuum situation for heating and fast drying.
2. When the temperature is fixed, and increases the vacuum rate of the inner machine, it will help to make the drying more faster.
3. When the temperature is fixed, and increase the vacuum rate, it will also make the drying faster.
4. If increase both vacuum rate and temperature degree, then the drying speed will be faster.
5. The machine can be equipped with condenser for Solvent recovery which contains in raw materials.
Model |
YZG-600 |
YZG-1000 |
YZG-1400 |
FZG-15 |
Inner Size |
Φ600×976 |
Φ1000×1527 |
Φ1400×2054 |
1500×1220×1400 |
Out Size |
1153*810*1020 |
1740*1226*1385 |
2386*1657*1800 |
2060*1513*1924 |
Shelves Layer |
4 |
6 |
8 |
8 |
interval of baking shelf |
81 |
98 |
102 |
122 |
Tray Size |
310×600×45 |
460×640×45 |
460×640×45 |
460×640×45 |
Tray QTY |
4 |
12 |
32 |
32 |
Capacity(kg) |
8 |
24 |
64 |
64 |
Presure in pipes |
≤0.784 |
≤0.784 |
≤0.784 |
≤0.784 |
Temperature (°C) |
≤150 |
≤150 |
≤150 |
≤150 |
Vacuum Rate |
-0.09~0.096 |
|||
Vacuum Pump |
SK-1.5 4kw |
SK-3 5.5kw |
Sk-6 11kw |
SK-6 11kw |
Machine weight |
250 |
800 |
1000 |
2100 |
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
