Silo Roll Forming Machine,steel Storage Producing Line,reinforcing Steel Cage Making Machine

Silo Roll Forming Machine,steel Storage Producing Line,reinforcing Steel Cage Making Machine thumbnail-1
Silo Roll Forming Machine,steel Storage Producing Line,reinforcing Steel Cage Making Machine thumbnail-2
Silo Roll Forming Machine,steel Storage Producing Line,reinforcing Steel Cage Making Machine thumbnail-3
Silo Roll Forming Machine,steel Storage Producing Line,reinforcing Steel Cage Making Machine photo-1
Silo Roll Forming Machine,steel Storage Producing Line,reinforcing Steel Cage Making Machine photo-2
Silo Roll Forming Machine,steel Storage Producing Line,reinforcing Steel Cage Making Machine photo-3
US$ 80,000 - 120,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Wall Panel Machine
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
Jiangyin Bangnuo Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Wall Panel Machine
Automatic Grade Automatic
Production Capacity 10~15m/min
Place of Origin Jiangsu, China
Brand Name Bangnuo
Model Number TYF
Voltage 380V
Power(W) 37KW
Dimension(L*W*H) 30m*3.0m*1.5m
Weight 15 T
Features Automatic
Certification ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Company Profile

            Jiangyin Bangnuo Machinery Co., Ltd. is a professional manufacturer dedicated Color light steel construction, C, Z steel equipment and rolling, bending molding equipment enterprises, with the design and manufacture of various types of steel sheet thickness roll forming production line strength. Pressed tile color steel plate and C, Z purlin products are widely used in various types of large and small industrial plants, warehouses, residential and high-rise buildings. Company specializing in the production of Dagong machines, floor plate machine, guardrail plate machine, corrugated tile machine, shearing machine, sub-board machine, highway guardrail, tile machine equipment, automatic tile press, iron Piva machine, iron tile machine, all automatic C-shaped steel machine, glazed tile machine.

Product Description

Composition of machine:

1. 10T hydraulic decoiler
2. Decoiler →Feeding→guide→feeding→roll forming→punching→cut to length→auto stacker
3. Staker
4. Hydraulic station
5. Control desk
6. Spare part list

Profile, layout & production flow:

Material of the profile: 195-235Mpa GI or carbon steel
Steel thickness (t): from 3 mm to (at least) 4 mm;
 Coil width: 1000mm
 Profile height (h): from 13±1mm
 Effective width (b): 912±4mm
 Flange height (c): 76±2mm
 Perforated round or oval holes for at least the following screw diameter must be confirmed by customer before order
 Length tolerance: ±1.5mm per each pieces

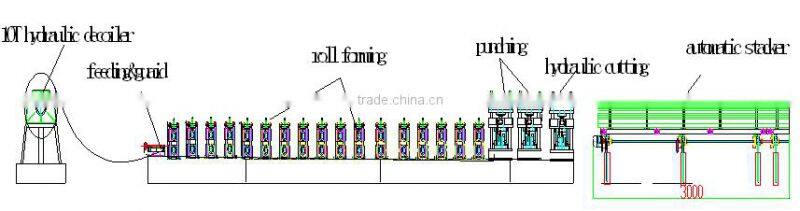

 Layout of machine（only for reference, the exactly one will be send to customer in 20 days after confirmed order）

Working direction base on customer request:

The production flow of equipment:

Hydraulic decoiler→ Feeding→roll forming→punching1→punching2→cutting→auto staker

Machine Composition

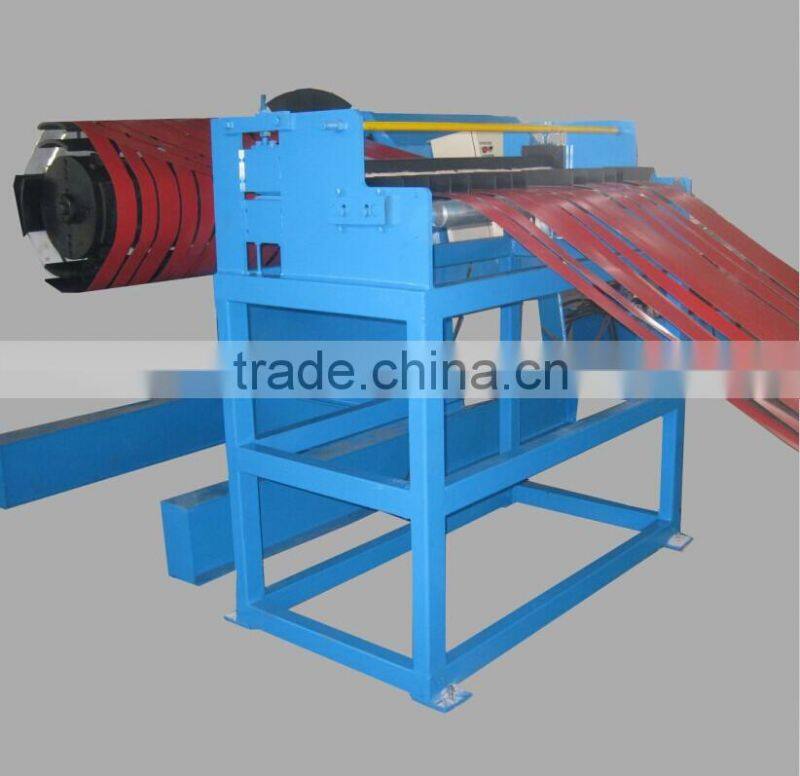

1: 10T hydraulic decoiler
The feeding unit is mechanically separated from the rest of the production line
Steel coil width
from 1250 mm to 1500 mm
 Internal diameter of coi
variable, from 470 mm to 620 mm
Maximal out diameter
1600mm
Maximum coil weigh
10000 Kg
 Oil cylinder dia
120mm
Working speed
0-15m/min adjustable
 Main motor power
7.5KW AC motor
Hydraulic power
5.5kw
 Speed controlled by frequency converter brand: Yaskawa
Color
Blue (or base on customer request)
Quantity
1

2: Feeding→flatten→punching→ pre-cutting→forming station→correction adjust→post cutting

 Feeding
Adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener
Feeding type
adjustable
 Feeding width range
980-1200mm
 Entrance and guide roller
diameter is ￠65mm, material is SAE1045, HRC48-52° surface with chrome
Quantity
1

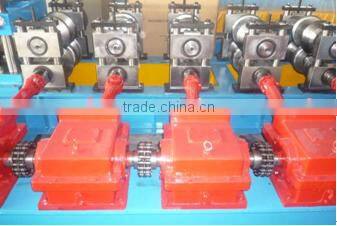

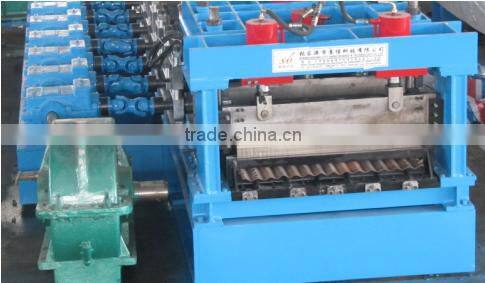

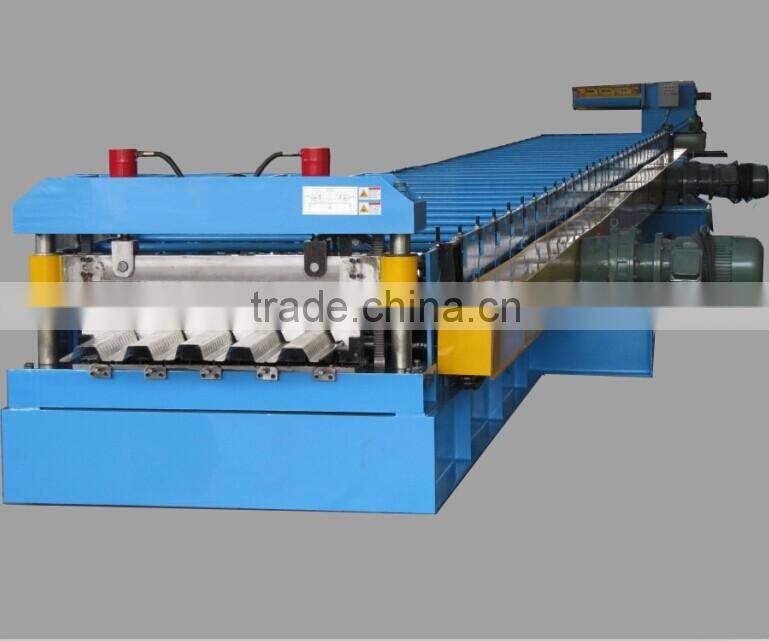

 Forming Section
 Material of the profile
195-235Mpa GI or carbon steel
Thickness range
3.0-4.0mm
 Maximum production speed
not less than 18 meters per minute (for non-perforated profiles, excluding cutting)
 Main motor power
60kw, AC motor, motor inside of main machine (Brand: Guomao of China)
Machine Voltage,Frequency, Phase
380 V, 50 Hz, 3Phase
 Roll station
20 stations
 Roller material
Gcr15 bearing material chrome plated surface with hardness 58-62 degree ,CNC,
 Shaft diameter
￠150mm material: SAE1045 with quenching and tempering
 To avoid accidents,all of drive part adopt protect cover
Color of machine
Blue and yellow (or base on customer request)
 Quantity
1
 Punching:
Base on customer provide punching drawing, this machine need adopt two units hydraulic punching system
The punches and dollies will be CR-12, hardness HRC 58-62 and chrome coating both punches and dolies should be easily replaceable without requiring disassembly of complete units.
The whole punching operation should be automated and controlled by a program installed in the PC which is located in the operator's console.
 Hydraulic power
5.5kw
Working pressure
12-16Mpa
Post Cutting:
Machine adopt hydraulic cutting
Cutting after forming
Cut the sheet after roll forming to required length
Cutting motion
The main machine automatically stops and the cutting will take place.
Material of blade
CR12with heat treatment
Length measuring:
Automatic length measuring
Tolerance of length
4700mm+/- 2mm

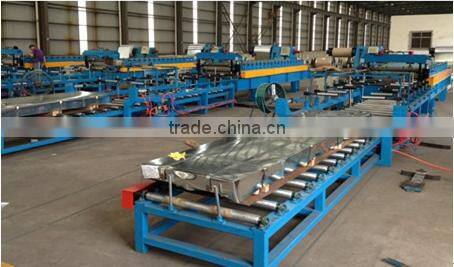

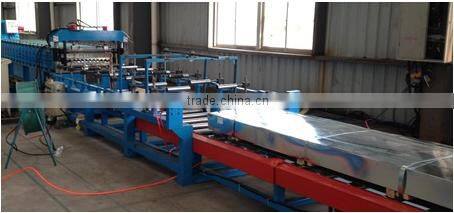

Auto stacker and transmission table
 Stacking principle
the top sheet will not damage the sheet below, the profile of the sheet below will match the profile of the top sheet
Air cylinder swing arm size
40mmx80mm
Transmission power
4kw AC motor
 Stacker length in 12m, transmission table length in 25m
Transmission roller
ASTM1045 with chrome, diameter of roller is in 80mm
 Carrying capacity
maximal 5000Kgs
 Length of capacity
500-12000mm
 The maximal stacker height
300mm
 Color
blue or base on customer request
 Quantity
1
Hydraulic station
Hydraulic power
11kw
 Working pressure
20-25Mpa adjustable
 Solenoid valve
3 groups (1 for cutting and 2 for punching)
 Hydraulic oil
46# hydraulic oil
 Color
Blue (or base on customer request)
Quantity
1

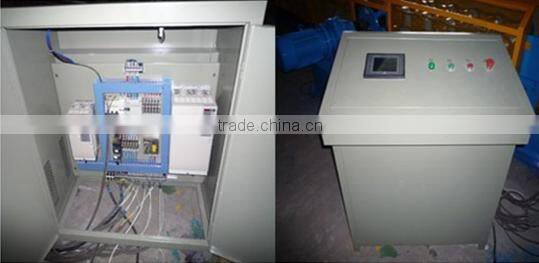

Control desk
Programmable setting of profile dimensions
to be provided
 Operating system language
English and Russian.
 Voltage, Frequency, Phase
380 V, 50 Hz, 3Phase
Length inaccuracy can be amended easily
 Control panel
Button-type switch and touch screen
 Unit of length
millimeter (switched on the control panel)
PLC brand
Panasonic
Frequency converter brand: Yaskawa, quantity
2
Touch screen
Taiwan Weinview

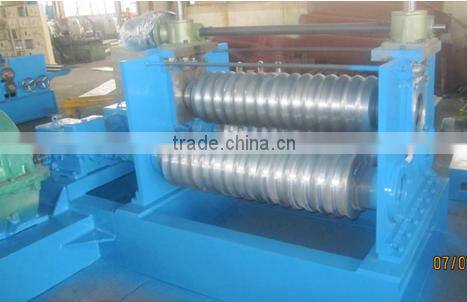

 Station Curving Machine
 Main spec of machine
Thickness
3-4mm
Maximal feeding width
1000mm (design base on YX13-76-912 corrugated pipe roll forming machine)
 Roll speed
0—10m/min
Main power
30KW
 Roll station
3 stations
 Shaft material
45# forge steel, polished and coated with chrome
 Diameter of shaft
180mm
 Material of roller
Gcr15 steel, polished and with HRC58-62°
 Adjust angle motor power
3KW
 Dimension of machine
2000 mm×1200 mm×1300 mm
 Drive
by gear box
 Curving mode
horizontal
Curving diameter
≥800mm
Certifications
Our Service

Pre-sales service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-sales service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
