Hot Selling Deck Floor Roll Forming Machine With Low Price

Hot Selling Deck Floor Roll Forming Machine With Low Price thumbnail-1
Hot Selling Deck Floor Roll Forming Machine With Low Price thumbnail-2
Hot Selling Deck Floor Roll Forming Machine With Low Price thumbnail-3
Hot Selling Deck Floor Roll Forming Machine With Low Price photo-1

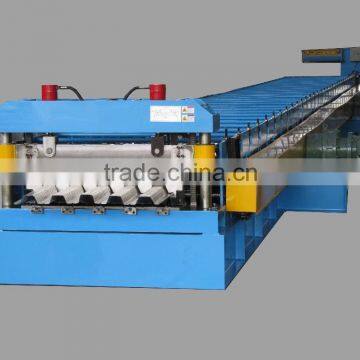

Hot Selling Deck Floor Roll Forming Machine With Low Price photo-2
Hot Selling Deck Floor Roll Forming Machine With Low Price photo-3
US$ 36,000 - 48,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Building Materials Machinery
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
Jiangyin Bangnuo Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Building Materials Machinery
Automatic Grade Automatic
Production Capacity 10~15m/min
Place of Origin Jiangsu, China
Brand Name Bangnuo
Model Number YX51-324-972
Voltage 380V
Power(W) 22KW
Dimension(L*W*H) 25m*1.7m*1.9m
Weight 15 T
Features Automatic
Certification ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Company Profile

            Jiangyin Bangnuo Machinery Co., Ltd. is a professional manufacturer dedicated Color light steel construction, C, Z steel equipment and rolling, bending molding equipment enterprises, with the design and manufacture of various types of steel sheet thickness roll forming production line strength. Pressed tile color steel plate and C, Z purlin products are widely used in various types of large and small industrial plants, warehouses, residential and high-rise buildings. With economic development, building light steel building applications on the growing popularity of the increasing demand for production equipment, production equipment automation requirements are also increasing, company investment, research and development of various types of color steel pressure plate (W) production line and C, Z-beam (purlin) production equipment, the use of simple, improve productivity, reduce production costs. Various existing models of steel pressure plate (W) C, Z-beam (purlin) automatic control production line are at the leading position at home and abroad, with a compact structure, reasonable design, constantly updated progress and much Strut Builders and products the favor and praise.
            Company specializing in the production of Dagong machines, floor plate machine, guardrail plate machine, corrugated tile machine, shearing machine, sub-board machine, highway guardrail, tile machine equipment, automatic tile press, iron Piva machine, iron tile machine, all automatic C-shaped steel machine, glazed tile machine.

Product Description

Composition of machine:

1. 5T manual decoiler
2. Feeding→forming station→Post cutting system
3. Output table
4. Hydraulic station
5. Control desk
6. Spare part list

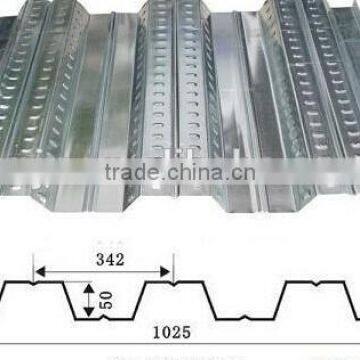

Profile, layout & production flow:

 Material of the profile: Q195, Q235, GI or color steel
 Thickness range: 0.5-1.2mm
 Coil width: 1220mm
 Height: 51±1，effective width: 972±5mm
 Finished product length: from 500 mm to (at least) 12’000 mm

Layout of machine （only for reference, the exactly one will be send to customer in 20 days after confirmed order）

 Working direction base on customer request:

The production flow of equipment:

Decoiler→ Feeding→roll forming→post cutting →out table

Machine Composition
5T manual decoiler
Dimensions: 1700mm*1000mm*800mm
 Width of feeding:1300mm
Internal diameter of coil: variable, from 480 mm to 570 mm
 Maximum coil weight: 5000 Kg
Mode of expand & fight :inner expand &fight by manua
Way of feeding: manual
 Uncoiled metal compensator: included, assures even feeding at all production speed
 Color: Blue (or base on customer request)
Feeding
Adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener.
Feeding type: adjustable
Feeding width range:1220
 Entrance and guide roller: diameter is ￠65mm, material is SAE1045, surface with chrome
Quantity: 1
Forming Section
Material of the profile: Q195, Q235, GI or color steel
Thickness range: 0.5-1.2mm
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station:30 stations （according the final design）
Roller material:ASTM1045 chrome plated surface with hardnesss,CNC,
Shaft diameter: ￠85mm material: SAE1045
Machine roll forming speed:not less than 15m/min
Transmission: by chain, one inch, double line
 Post cutting system
Profile transversal cutting device units allowing to cut the bent profile without damaging the metal coating and to assure a smooth cut included;
Feeding of the last cut profile from the equipment: automatic if the length of the last profile is not less than 2000 mm;
 Cutting after forming: Cut the sheet after roll forming to required length
 Uses two hydraulic cylinders for operation shall include a flow regulator to achieve a uniform lowering knife.
 Material of blade:Cr12, 58-62 HRC hardness
Output table:
 Frame: welding by tube
Size: about 1.0m long*1.0mwide*0.9mhigh
 One out table with some support roller
Supporter roller: ASTM 1045 with chrome
 Diameter of rollers: 55mm
 Color: Blue
Quantity: 2units
Hydraulic station
 Hydraulic power: 5.5kw
Working pressure: 12Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
 Color； Blue (or base on customer request)
 Quantity :1
 Control desk
 Programmable setting of profile length and quantity
Programmable cutting unit, various lengths in one programming cycle without
quantity restrictions (without stopping the operating equipment): will be provided.
5groups datas canbe set in one time
Automatic stopping of the equipment after completion of the cutting programme:
will be provided.

Operating system language: English and Chinese
Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
Unit of length: millimeter (switched on the control panel)
 Frequency converter brand: Yaskawa
Touch screen: Taiwan Weinview
 Color: gray
Certifications
Our Service

Pre-sales service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-sales service

S* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
