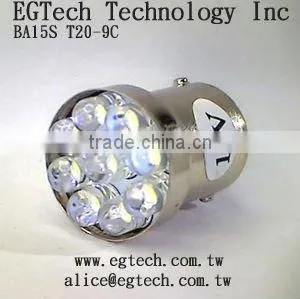

BA15S T19-9C LED Lamp

Name: BA15S T19-9C LED Lamp
Brand: EGTech
SKU: 132946969
Availability: InStock

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Taiwan, China

Brand Name:

EGTech

Model Number:

BA9S T19TL-9C

Egtech Technology Inc.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tauyeng

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Taiwan, China

Brand Name EGTech

Model Number BA9S T19TL-9C

Car Signale Indicators 1156 LED lamp

EGTech Technology products BA15S T19-9C 24V DC LED Lamp on web

BA15S T19-9C 24V DC LED Lamp Electrical and Optical Characteristics

Type	Red	Yellow	Blue	Green	White	White
LED DIP Type	3mm round top	3mm round top	3mm round top	3mm round top	3mm rounf top	3mm rounf top
LED Quantity	9	9	9	9	9	9
Single Intensitv(mcd)	1650	1650	1350	5500	5650	4000
Color Temperature(K)	1001	1537	>100000	7349	6500	2700
View Angle(Degree)	45	45	45	45	45	45
Wave Length(nm)	630	592	470	525	X:0.29, Y:0.29	X:0.29, Y:0.28
Voltage DC(V)	12	12	12	12	12	12
Current(mA)	45	45	45	45	45	45
Power consumption(W)	0.54	0.54	0.54	0.54	0.54	0.54
Luminance(LM)	2	2	1.5	6	5.5	4.5
Operating Temperature(Degree C)	-20 ~ +50	-20 ~ +50	-20 ~ +50	-20 ~ +50	-20 ~ +50	-20 ~ +50
Storage Temperature(Degree C)	-40 ~ +80	-40 ~ +80	-40 ~ +80	-40 ~ +80	-40 ~ +80	-40 ~ +80

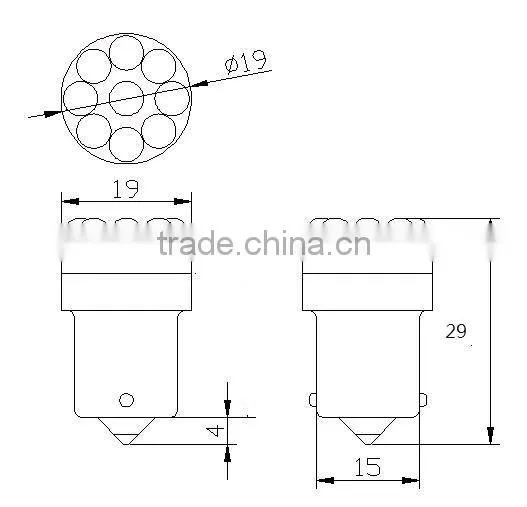

Dimension(DxH mm)	19x29	19x29	19x29	19x29	19x29	19x29
Life Cycle(hrs)	30000	30000	30000	30000	30000	30000
