Indicators BA9S T10-HP6 LED Bulb
- Keelung Taiwan
- Money Gram
You May Like
Product Details
| Type | Interior Lamp | Voltage | Other, 6V, 6V/12V/24V AC/DC, 110V/120V AC | |
| Lamp Type | LED | Certification | RoHS | |
| Place of Origin | Taiwan, China | Brand Name | EGTech | |
| Model Number | BA9S T10-HP6 |
Product Description
Indicators BA9S T10-HP6 LED bulb
. Base for BA9S, T10 Wedge and E10
. High brightness Lamp embedded with 6 emitting dices
. DC input for 6.3V, 12V, 24V and 48V DC, AC input avaliable 110V , 120V
. Automotives, Boat, Industrial, Motocycle and somewhere indicator signal applications
. Avaliable colour for Red, Yellow, Blue, Green and White
Specifications
Electrical and Optical Characteristics:
Type | Red | Yellow | Blue | Green | White |
LED Quantity | 1HP6 | 1HP6 | 1HP6 | 1HP6 | 1HP6 |
Single LED intensity (mcd) | 2045 | 1487 | 700 | 2454 | 4834 |
Color Temperature (K) | 1001 | 1407 | >=100000 | 7381 | 4000~9000 |
View Angle (degree) | 120.2 | 121.3 | 1143.4 | 121.7 | 109.5 |
Wave Length (nm) | 624~635 | 595~600 | 455~462 | 525~532 | X: 0.292, Y: 0.300 |
Luminance (LM) | 14.24 | 10.19 | 4.355 | 16.42 | 27.51 |
Voltage (DC) | 6 | 6 | 6 | 6 | 6 |
Current (mA) | 35 | 35 | 35 | 35 | 35 |
Power consumption (W) | 0.21 | 0.21 | 0.21 | 0.21 | 0.21 |
Operating Temperature(oC) | -20 ~ +50 | -20 ~ +50 | -20 ~ +50 | -20 ~ +50 | -20 ~ +50 |
StoreTemperature(oC) | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 |
Dimension (DxH)mm | 11x27 | 11x27 | 11x27 | 11x27 | 11x27 |

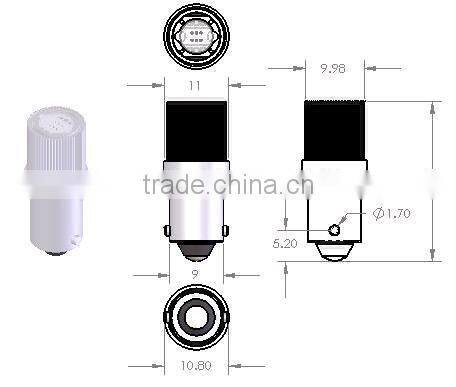

Drawing:
