BA15D T20-15SMD LED Lamp

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	3528 LED	Type	Corn Lights
Input Voltage(V)	24	Lamp Power(W)	1.5
Lamp Luminous Flux(lm)	51	Lamp Luminous Efficiency(lm/w)	50
Color Temperature(CCT)	Cool White	Working Temperature(℃)	-20, +50
Working Lifetime(Hour)	50000	Lamp Body Material	Aluminum Alloy
Certification	CE, Energy Star	Base Type	BA15d
Place of Origin	Taiwan, China	Brand Name	EG-Tech
Model Number	T20-15SMD 3528

BA15D T20-15SMD LED Lamp

Base: BA15D

Voltage: 110V/220V AC or 12V/24V DC

Colors: Red, Yellow, Blue, Green, White or warm White

LED numbers: 15 SMD LED chips

Specification

EGTech Technology products Bayonet 15 dual contacts T20-15SMD 28V on web

BA15D T20-15SMD 28V LED Bulb Electrical and Optical Characteristics

Type	Red	Yellow	Blue	Green	White
LED SMD Type	3528	3528	3528	3528	3528
LED Quantity	15	15	15	15	15
Single Intensitv(mcd)	1326	609	851	2229	3548
Color Temperature(K)	1001	1541	>=100000	7540	7280
View Angle(Degree)	179	180	180	180	180
Wave Length(nm)	630	594	471	528	X:0.299, Y:0.326
Voltage(V)	28	28	28	28	28
Current(mA)	38	38	52	52	52
Power consumption(W)	1.06	1.06	1.46	1.46	1.46
Luminance(LM)	20.807	9.2868	11.765	33.047	51.352
Operating Temperature(Degree C)	-20 ~ +50	-20 ~ +50	-20 ~ +50	-20 ~ +50	-20 ~ +50
Storage Temperature(Degree C)	-40 ~ +80	-40 ~ +80	-40 ~ +80	-40 ~ +80	-40 ~ +80
Dimension(DxH mm)	20x45	20x45	20x45	20x45	20x45
Life Cycle(hrs)	30000	30000	30000	30000	30000

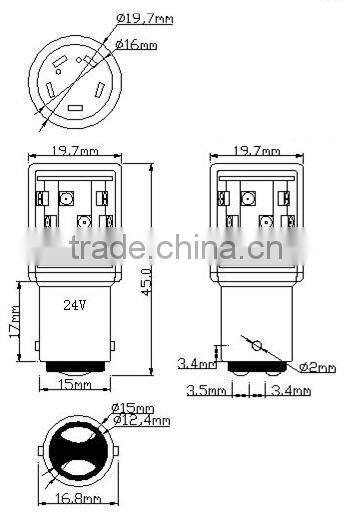

Outline Drawing

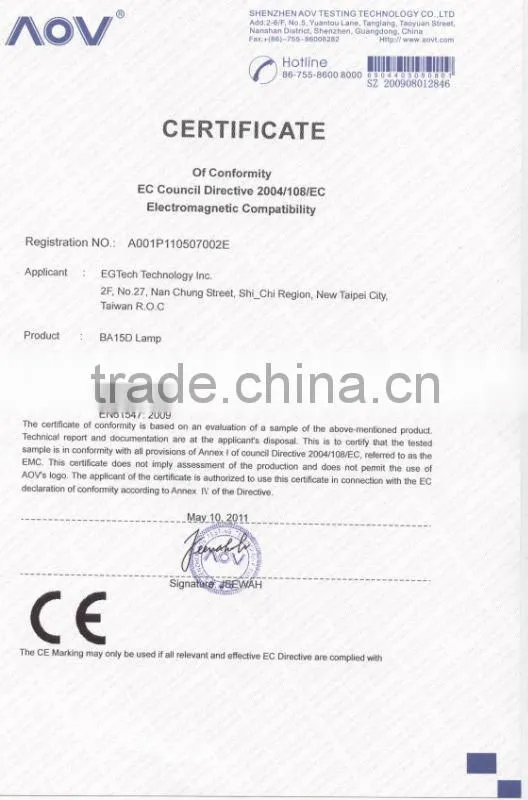

Certification
