Blister Packaging machine for PVC blister

Application and usage:

     The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in large & medium pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce large quality and single product. Both Alu Alu and Alu PVC are available by changing mould!

Model:

DPP-140

Sheet’s quantity of one blanking:

2sheets   (standard size 80*56mm)

Adjustable scope of feed travel:

10-110mm

Power Supply:

380V 50Hz 9.5Kw (optional)

PVC:     160×(0.15-0.5)mm

PTP:      160*(0.02-0.035) mm

Alu Alu: 160*(0.125-0.180)mm

Overall Dimensions:

2100*650*1600mm

Weight:

850Kg

1. Travel scope can be adjusted.

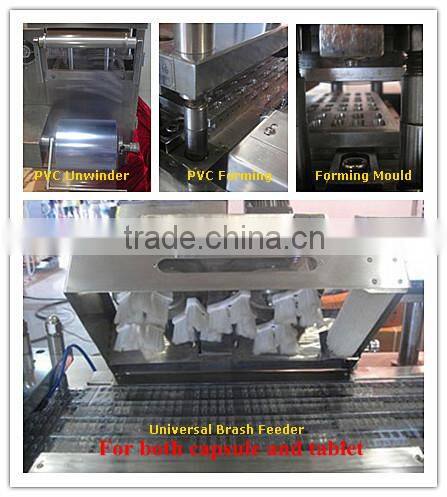

2. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.

3. The material is fed automatically. The mould and feeder can be designed as user’s requirements.

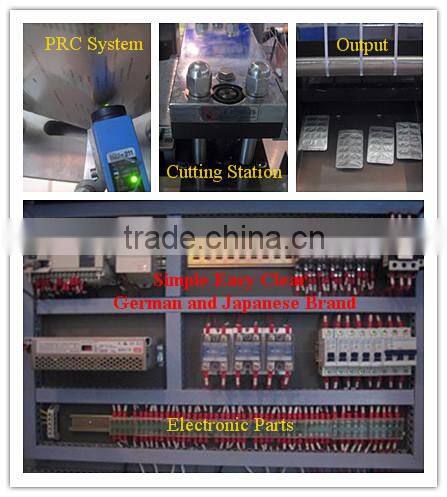

4. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.

5. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.

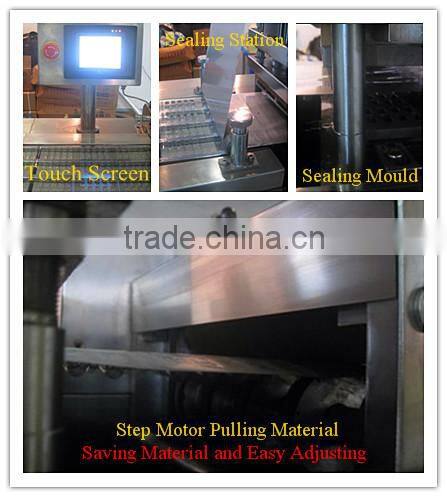

6. Step Motor For Pulling material, more saving material and adjusting time.

7. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
