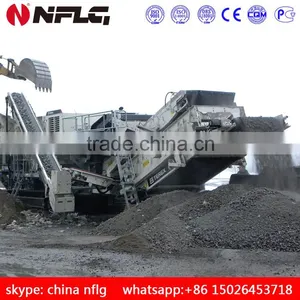

made in 2011 low price used mobile impact crusher
Price Service Product Service Technology Service
Terex®NFLG I-130 crawler type mobile impact crusher stationis designed for quarrying, mining, solid waste recycling and reusedesign. I-130RS can be used for crushing and screening, on the basis ofI-130, it’s added a quick-release single-layer mesh screen box with 4270x1520mm.

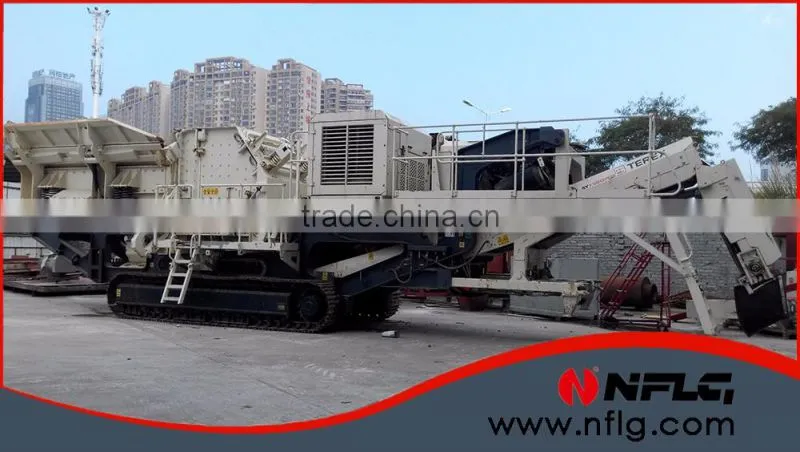

This is a used mobile impact crushing station which was made in 2011, the model is: I-130RS, machine mass: 59000kg. By now, the equipment is in good working condition and excellent performance. Because of the customer business restructuring, NFLG has recovered the mobile impact crusher station. The impact crusher is imported from Terex in USA.
Quotation: 2,900,000RMB
Sets:1
I-130 RS tracked mobile crusher station configuration checklist
No. |
configuration checklist |
Remark |
1 |
Caterpillar C13 328 kW (440hp), Rotating speed (1700 rpm -2100 rpm) |
Standard |
2 |
Terex IP1313 impact crusher (4 plate hammer rotor), tool steel hammer with 2 High 2 Low |
Standard |
3 |
Hydraulic drive with coupling direct |
Standard |
4 |
Hydraulic auxiliary back plate adjusting device |
Standard |
5 |
9m³ capacity hopper |
Standard |
6 |
Hydraulic folding side panels |
Standard |
7 |
Heavy vibrating feeder |
Standard |
8 |
Back feed belt conveyor: 500mm (1 '8 ") bandwidth folded transport |
Standard |
9 |
Fines belt conveyor: 1400mm (4 '7 ") of bandwidth, unloading height 3.2 m |
Standard |
10 |
Filters: 4.27mx 1.52m, fast and fines separating screen to accommodate more conditions, the screen angle of 17 to 25 degrees, with a standard 40mm bore single screen |
Standard |
11 |
Transmission belt conveyor: belt width 500mm |
Standard |
12 |
With pre-screening system, standard 50mm gap stepped grate feeder |
Standard |
13 |
Belt conveyor can be used for unloading |
Standard |
14 |
Feeder mesh grate: 38mm |
Standard |
15 |
Rip-stop 1000mm total length of the belt |
Standard |
16 |
High strength drive roller blade |
Standard |
17 |
Dust watering tube |
Standard |
18 |
Hanging separator line |
Standard |
19 |
Soft-start, the crawler with two kinds of travel speed |
Standard |
20 |
Hydraulic oil temperature sensor |
Standard |
21 |
Handheld Track Controller with 5m long term |
Standard |
22 |
Remote grease lubrication system |
Standard |
23 |
With grab bars, pedals and ladders galvanized walkway |
Standard |
24 |
Bandwidth 500mm heavy crawler |
Standard |
25 |
Six emergency stop devices |
Standard |
26 |
The standard paint and decals -RAL 1013 Terex white, gray frame, Terex NFLG decals |
Standard |
27 |
Wireless remote control system: the machine's operational control (automatic start and stop) and tracked mobile |
Optional |
28 |
Bandwidth flat side of the belt conveyor |
Optional |
29 |
Hanging separator (250mm suspension height) with stainless steel bezel and stainless steel discharge chute |
Optional |
30 |
Hydraulically driven pumps (requires an auxiliary drive) |
Optional |
