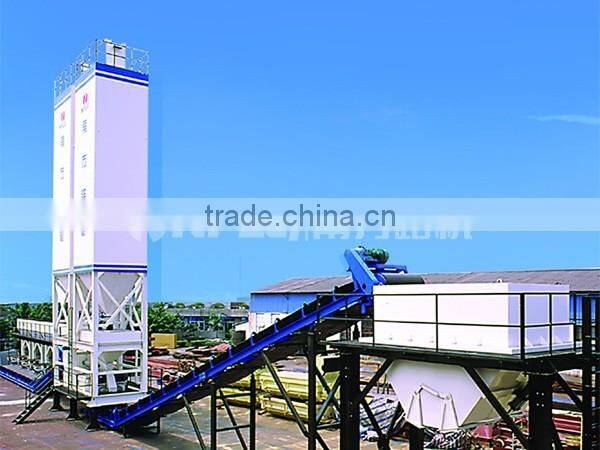

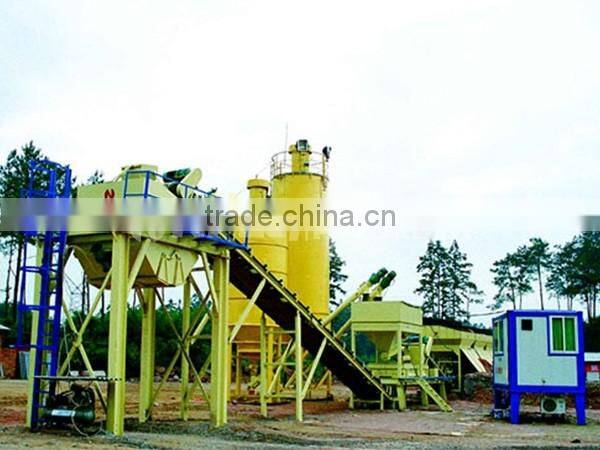

YWCB Mobile Stabilized Base Mixing Plant
Price Service Product Service Technology Service
Feeding, weighing, conveying, mixing, storing integrated into a compact structure
Accurate weighing, high mixing performance and great mobility
YWCB Stabilized Course Mixing Plant is a brand-new plant. Feeding, weighing, conveying, mixing, storing are integrated into a compact structure, of high performance in accurate weighing, high quality mixing and mobility.
Mixer
Non-liner technology initiate in China, reduce the wearing of paddles, scuffing of the paddles and the materials jam.
Two discharging doors at the bottom of mixer make cleaning work easy.
Paddles of high strength and high wear-resistance
Remote-control water-flow system
1. Consist of the target flow meter and the motorized valves;
2. Control the setting and adjustment of water flow by simply touching the buttons on the control panels with high accuracy and quick response
Electrical Control System
Of powerful management functions, user-friendly interface and excellent human-machine interacting function;
Store the data like recipes and output and print statistic reports;
Automatic warning;
Full-enclosed air-condition
Discharge hopper
The mixed materials is delivered to the discharge hopper by the high-dip trough belt conveyor
The discharge hopper is of simple structure, convenient maintenance, low breakdown rate, huge conveying capacity and long life.
Cement Monitor Device
Control the cement output strictly to guarantee the quality of the mixed materials
Main Technical Parameters:
Model |
Production (t/h) |
Storage Hopper (m3) |
Discharge Height(m) |
Ag Size(mm) |
Proportion |
Accuracy |
Weight (t) |
Power (kw) |
Speed (km/h) |
||
Aggregate |
Cement |
Water |
|||||||||
YWCB200 |
200 |
3.4 |
2.6 |
≤60 |
4 |
±3% |
±1% |
±1% |
22 |
64 |
15 |
YWCB300 |
300 |
3.4 |
2.8 |
≤60 |
4 |
±3% |
±1% |
±1% |
28 |
82 |
15 |
