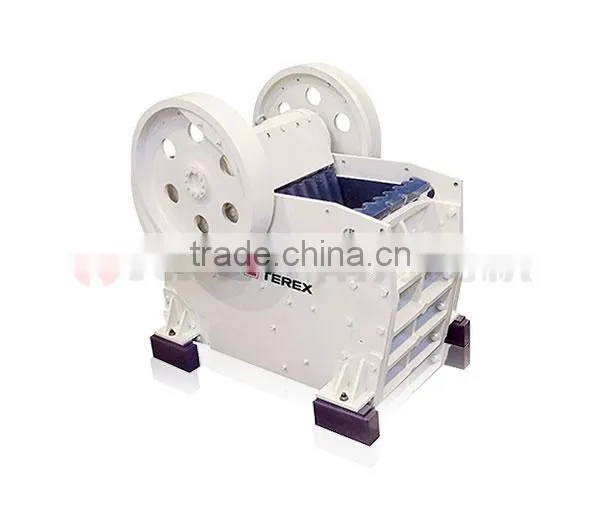

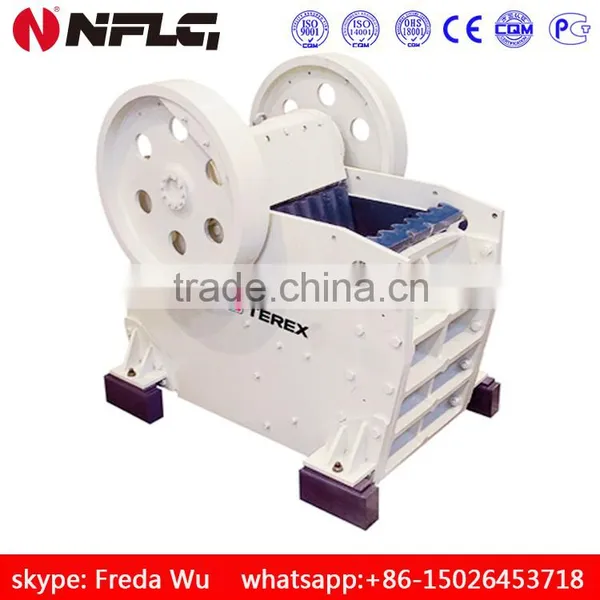

Large capacity 85-680tph fixed jaw crusher on sale

        JW series jaw crushers developed by Terex® NFLG feature light weight and easy operation. These durable crushers designed by the Terex MP (material processing department) use the hydraulic control system to easily and quickly adjust the sizes of pilled-in selvedge discharge openings. To make the design applicable to the caterpillar structure, wheel structure and stationary assembly model, these crushers also use heavy-component assembly to simplify(optimize) operations and extend the service life.

1. Parameter for fixed jaw crusher

2. Characteristics for fixed jaw crusher

Advantages and Characteristics for fixed jaw crusher

1. Long service life, low maintenance rate and low operation cost: The solid(strong) frame design, the large-diameter forged shaft, and the main shaft with no thread and processed with sharp radius minimize stress concentration.
2. Quick to install: High assembly and applicability facilitate fixed and mobile structure installation. (facilitate installation for fixed and mobile structure)
3. Easy adjustment: The main crusher frame is internally equipped with hydraulic wedge blocks to adjust the sizes of discharge openings.
4. Easy maintenance: The jaw plates are secured(fixed) by the mechanical wedge block system to prevent operators from touching the front and rear bolts on the main crusher frame(of the main crusher).
5. Stable operation and short downtime: The high-precision (casting) movable jaw support plate, the toggle(rib) plate non-lubrication, and the self aligning roller bearing and high-strength main shaft design ensure equipment stability, which is widely known in the industry.
6. Evenly distributed crushing force of jaw plates and machined jaw plate positioning.

01

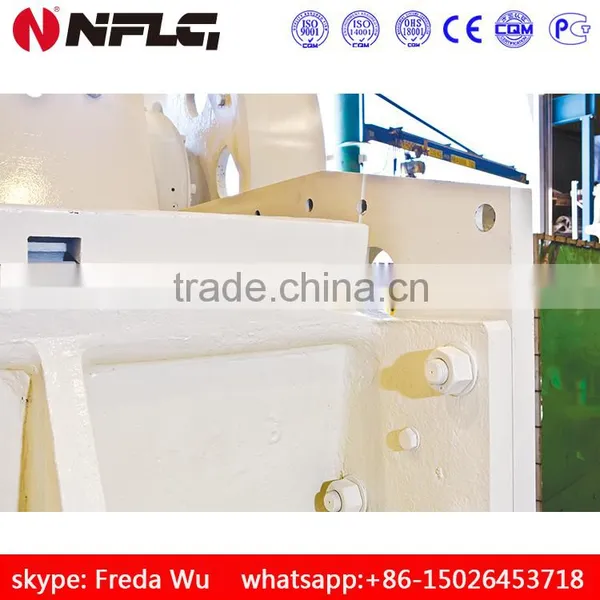

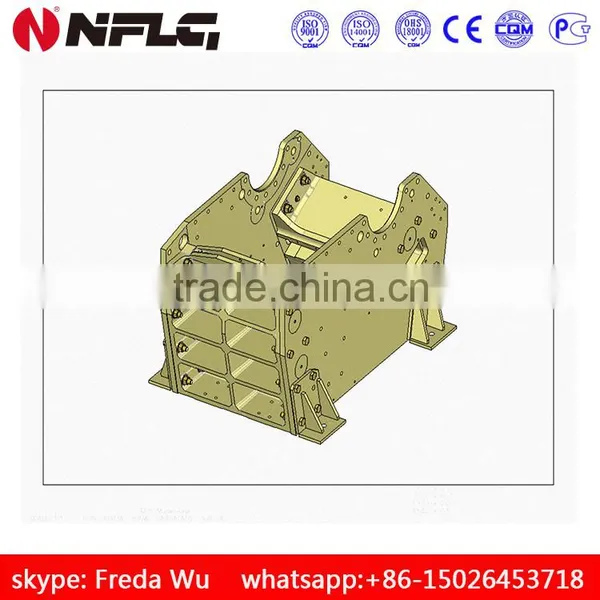

Main Frame Structure for fixed jaw crusher

        High-strength main frame structure design can undergo tests under various severe conditions. The main structure is a full-bolt-locked, dowelled joint and 4-piece structure. All structures at the front and rear ends are made of high-strength cast steel, while the lateral plates are made of high-strength structural steel plates. The high-load solid design without welding can accurately arrange key parts.

Adjustment of Pilled-in Selvedge Discharge Openings for fixed jaw crusher

        The pilled-in selvedge discharge openings of crushers achieve infinitely variable control through the hydraulic-driven wedge block system and the tensioning lever spring, with no gasket used. The wedge block system is installed in the crusher frame, while the hydraulic station with control buttons is located beside the crusher.

Main Shaft for fixed jaw crusher

The large-diameter main shaft made of hardened and tempered steel alloy is applicable to heavy equipment. Surface finishing prevents thread line and sharp radius due to stress concentration. The main shaft has high fatigue resistance.

Bearing for fixed jaw crusher

Both the movable jaw support plate and the main structure use the high-strength bearing design with self-aligned double row rollers.

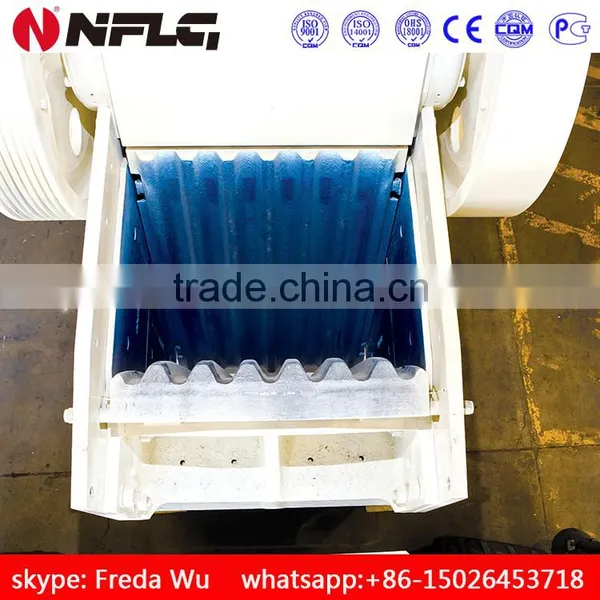

Jaw Plate for fixed jaw crusher

High-quality manganese steel casting and jaw plate bilateral replaceable ensure the service life of jaw plates. The machined jaw plate back can firmly support these jaw plates. All series of jaw plate profiles have matched manganese alloy content to ensure the maximum crushing performance and the longest service life of jaw plates and to reduce the operation cost.

Jaw Plate Fixing for fixed jaw crusher

        Jaw plates are secured(fixed) by the wedge block locking system to prevent operators from touching the front and rear ends of the main machine when the jaw plate bolts are locked.

Equipment Strength for fixed jaw crusher

        The JW series single-toggle jaw crushers designed by TEREX based on its many years of production experience are applicable to heavy and continuous load operations in the mining and quarrying industry. The movable jaw and the main structure, which use the heavy bearing design with self-aligned double row rollers, include the heavy alloy forged shafts, the movable jaw support plates for casting, and the main structure with heavy bolt assembly and dowelled joint.

Toggle Plate for fixed jaw crusher

        The toggle plate traversing the bracket flat surface produces no friction or polishing to ensure minimum friction. The toggle plate system has the following characteristics:

1. Require no lubrication.
2. Process high crushing force.
3. Extend the service life of the jaw plate and bracket.

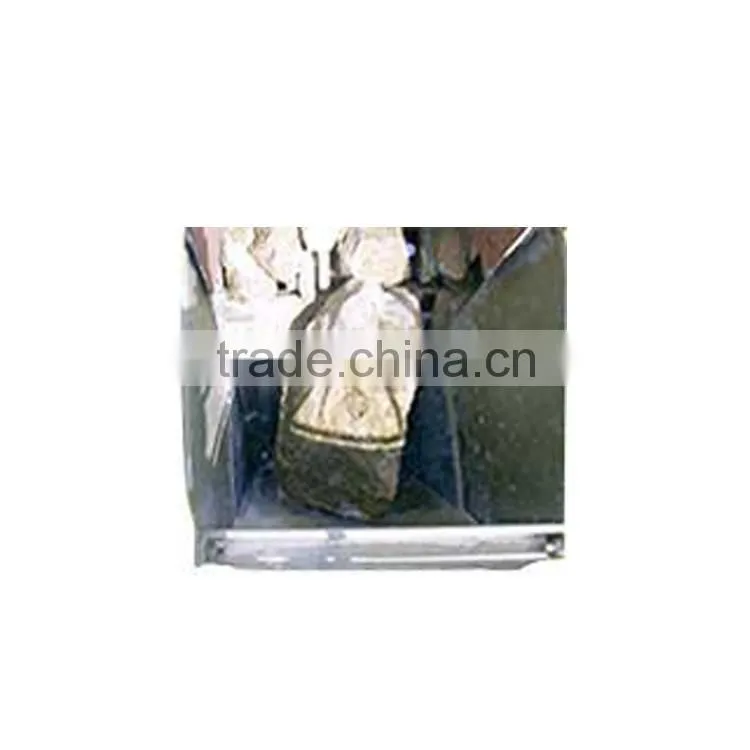

In addition, the jaw plate provides the fuse protection function to automatically disconnect for protection when the materials that cannot be crushed enter the crushing cavity.
