plastic machinery /HDPE pipe making machine
contact person:Tracy Guan
Skype:tracyroseguan
Mobile:+8613864850419
|
Item | SJDRM75 | SJDRM125 | SJDRM250 | SJDRM630 | SJDRM800 |
Max Dia. Of pipe(mm) | 75 | 125 | 250 | 630 | 800 |
Main machine | SJ65/30 | SJ75/30 | SJ90/30 | SJ120/30 | SJ120/33 |
Motor power(kw) | 60 | 75 | 160 | 260 | 600 |
Motor type | Direct current model | Direct current model | Direct current model | Direct current model | Direct current model |
Max. capacity(kg/h) | 160 | 260 | 400 | 900 | 1150 |
Traction speed(m/min) | 0.5DRM8 | 0.3DRM4 | 0.2DRM2 | 0.1DRM1 | 0.15DRM1.5 |
Max. traction(N) | 10000 | 15000 | 30000 | 40000 | 50000 |
Cutting type | Disc type cutting | Disc type cutting | Planet cutting | Planet cutting | Planet cutting |
length(mm) | 22000 | 34000 | 44000 | 58000 | 60000 |
16-75mm PE pipe machine/pp pipe machine-Main Composition of Production Line
| Item | Quantity |
SJ-65×30 Single Screw Extruder | two set |
Die And Mould | one set |
Vacuum Calibration Device | one set |
Spray Cooling Tanks | one set |
Tractor | one set |
No Dust Cutting Device | one set |
Stacker | one set |

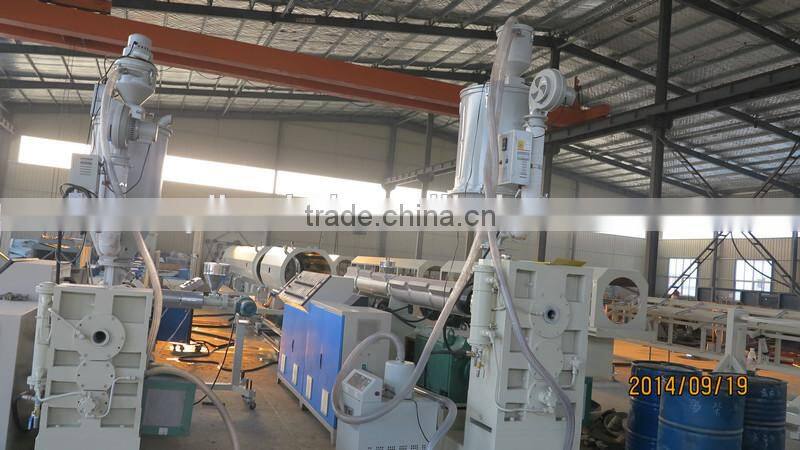

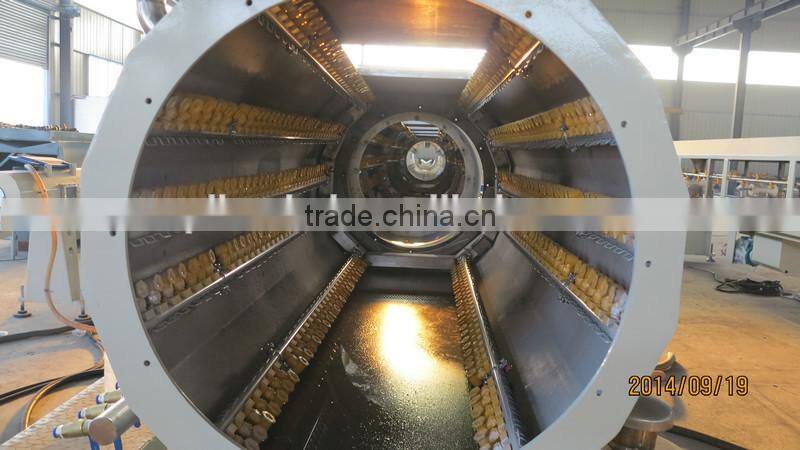

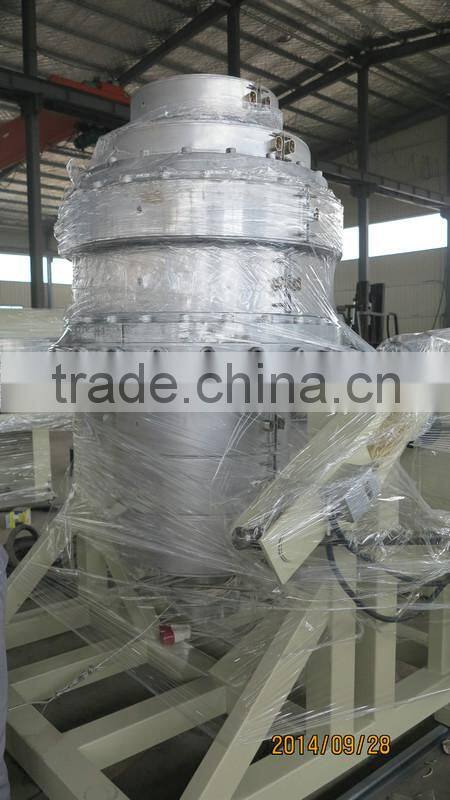

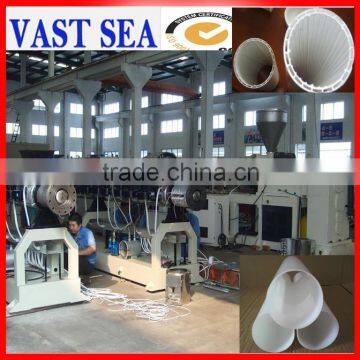

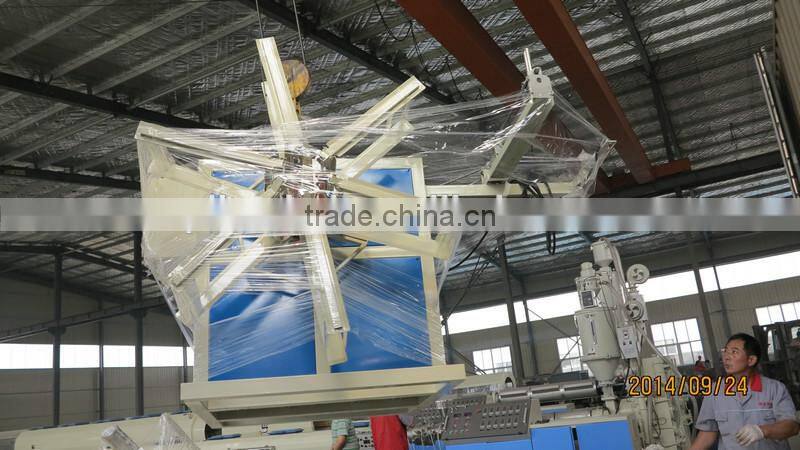

Reference pictures:
Turn key project.
Technical documents
We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
Arrangement for inspection, installation and testing work
a.After being informed machines ready for inspection, customer can send engineers to our factory.
b.After the machines are delivered to customer’s factory;We will send one or two technicians to the factory after preparation work is completed;Technicians will be responsible for guide on-site installation and testing machines.
c.Meanwhile technicians will give free training lessons to labors in customer’s factory
Qingdao Hanhai Plastic Machinery Co.,Ltd. is located in Jiaozhou city, Shandong province, China. It’s high-tech manufacturer specializing in research & development and producing extrusion equipment. Company has good R & D employees and experienced mechanical , electrical commissioning engineers. The main products are including:
UPVC, PPR small diameter pipe extrusion line.
Large diameter PE water pipe, MDPE gas pipe, UPVC pipe extrusion line.
PVC,PP,PE,ABS,PC,PS sheetboard extrusion line.
PVC window profile, ceiling , window sill, siding plate extrusion line.
PVC, PP, PE wood plastic door panel extrusion line.
PE-RT hot water pipe, PEX underground warm pipe, PP-R, PP, PP-B new water pipe extrusion line.
PE Collective fiber glass pipe, PVC-C high voltage cable protective pipe, PE/PVC cross-section communication cable pipe extrusion line.
All kinds of conical twin screw extruders, parallel twin screw extruders,single screw extruder.
We have more than 15 years producing experience . Can supply all technology information you need.
For more information pls contact :Tracy Guan
Mobile/whatsapp/viber /wechat:+86-13864850419
skype:tracyroseguan
