Extrude Plastic for PVC/WPC Profile
- Qingdao Port
- T/T
You May Like
Product Details
| Condition | New | Application | Profile | |
| Plastic Processed | WPC | Screw Design | Double-screw | |
| Automatic Grade | Automatic | Place of Origin | Shandong, China | |
| Brand Name | Hanhai | Model Number | SJSZ65/132 | |
| Voltage | 380V 50HZ | Power(W) | 150KW | |
| Dimension(L*W*H) | 23*3*3 | Weight | 4000kg | |
| Certification | CE and ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
extrude plastic for PVC/WPC profile
WPC Extrusion Machine Plastic features:
1) Mainly used to produce the PVC window profiles, plastic decorative plates and PVC
foam profiles
2) Use frequency conversion for speed regulation
3) Has super-taper twin-screw extruder with temperature controlling instrument in the screw core
4) Saves power by 30% - 40%
5) The rigid gear surface of the reducer can be operated continuously for a long
time without trouble
6) Operation and mold changing are smooth and steady
7) Long usage life
8) Can produce steel plastic profiles by changing the wood imitation foaming profile
mold, combines with one set of steel liner conveying devices
II WPC Extrusion Machine Plastic lists

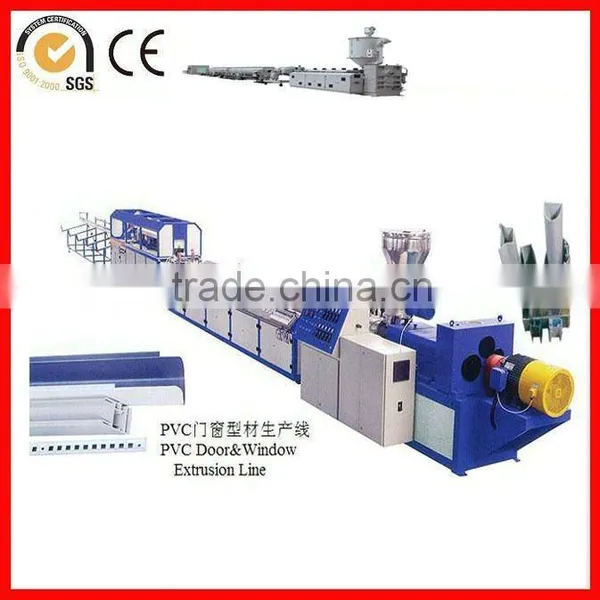

PVC Profile Production Line
Item | Name | Model | Qty | Details |
1 | Conical twin screw extruder | SJSZ65-132 | 1Unit | With automatic spring loader |
2 | Vacuum calibrating platform | ZK-6000 | 1Unit |
|
3 | Caterpillar haul off | QY-300 | 1Unit |
|
4 | Cutting unit | QG-300 | 1Unit |
|
5 | stacker | FL-5000 | 1Unit |
|
III WPC Extrusion Machine Plastic description
Description | Parameters |
Product size | customized |
Material | PVC powder+ additives |
Production line speed | 0.5-1.5m/min |
Max. output | 150-240kg/h |
Overall dimensions | 25m×2.5m×3m (L×W×H) |
Weight(Approx) | 13T |
Total installed power | 120kw |
Actual energy consumption power | 80kw |
Gas consumption | 0.4m3/min |
Air pressure | 0.6mpa |
Water circulating device | 0.5m3/min |
Electric condition | 380V/3P/50Hz |
Water supply | Water used for industry, no impurities, by filtrating, water pressure: 0.4mpa water temperature14~25°C |
Work environment temperature | 0-40°C |

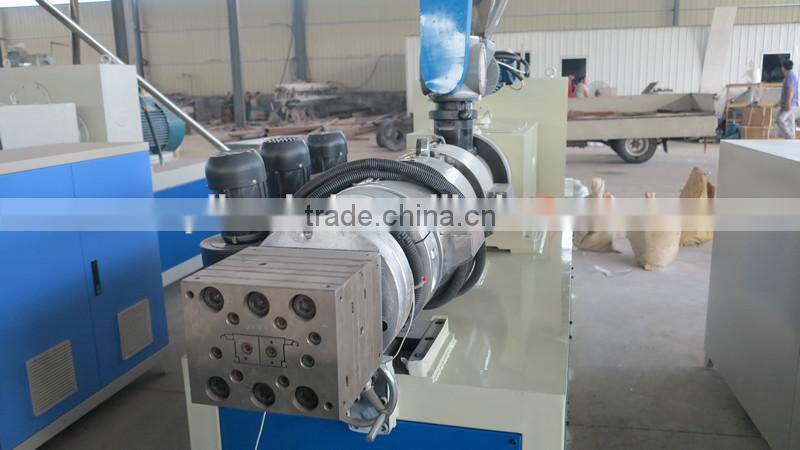

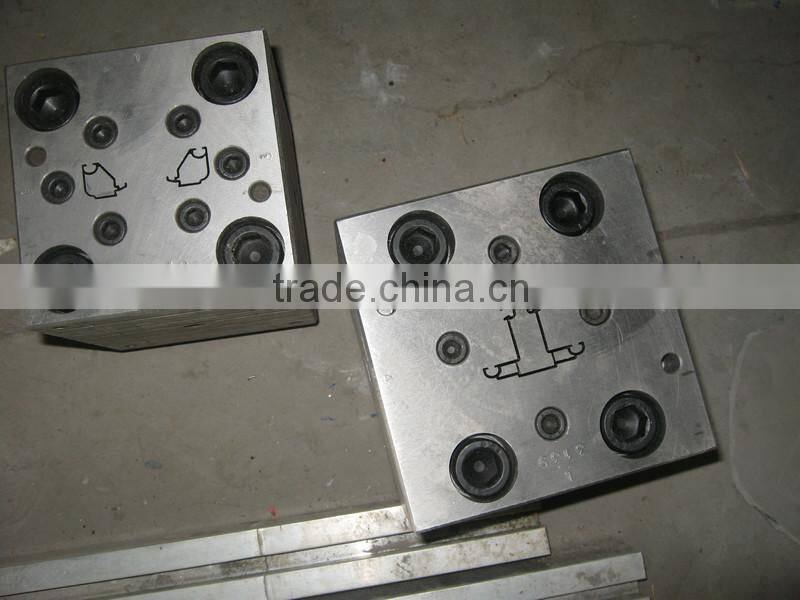

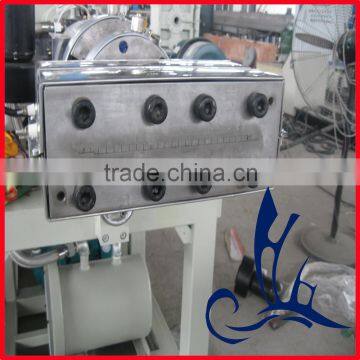

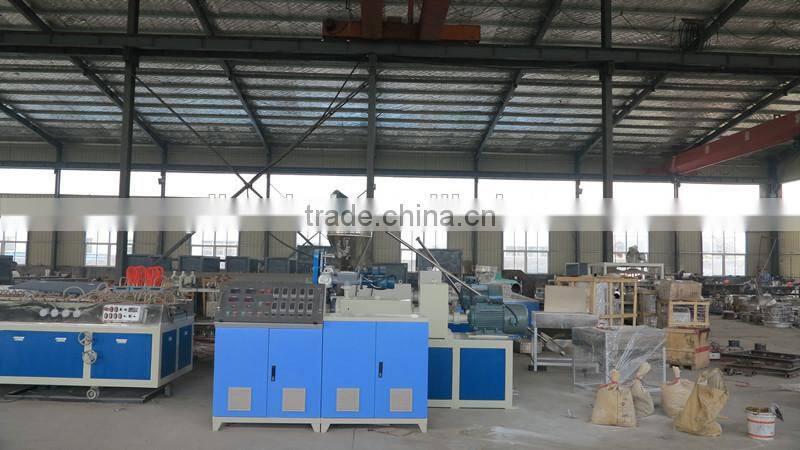

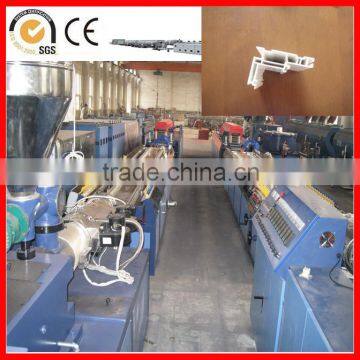

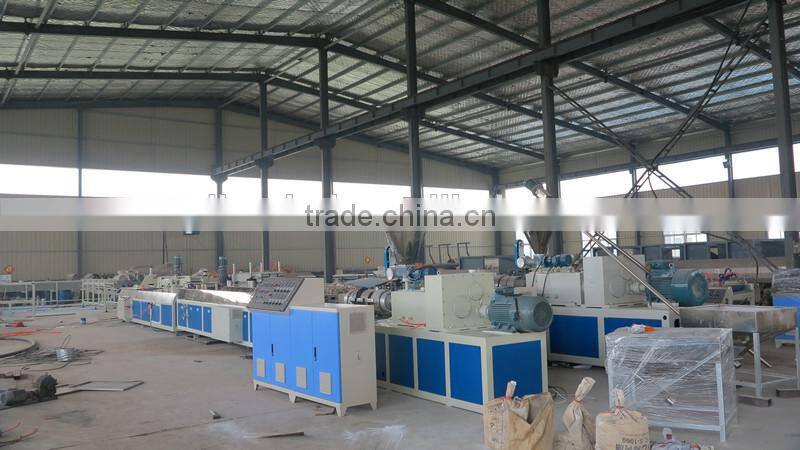

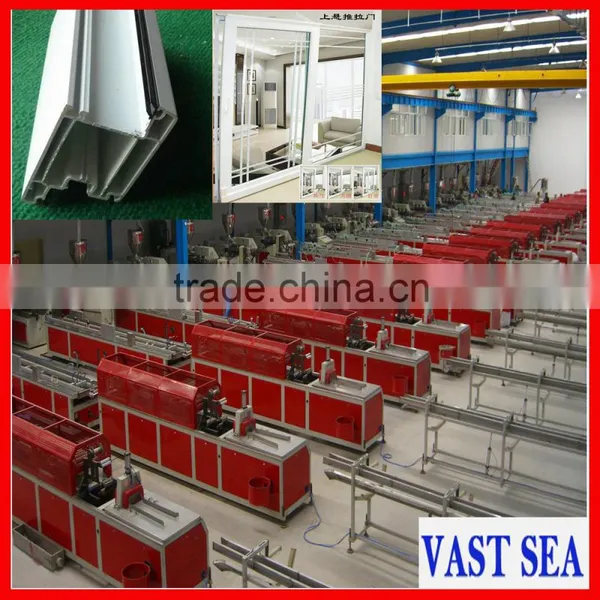

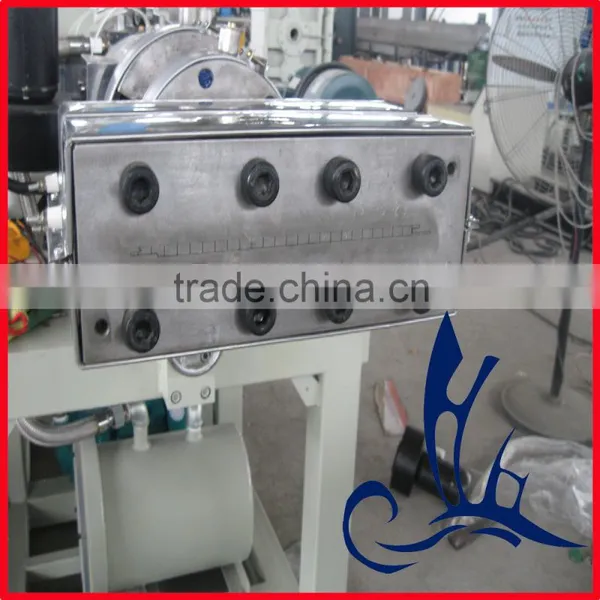

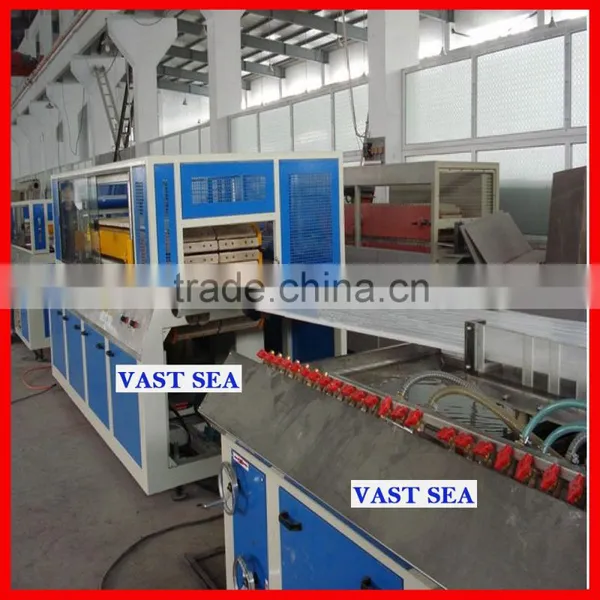

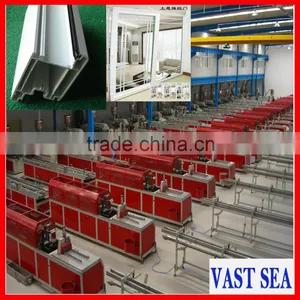

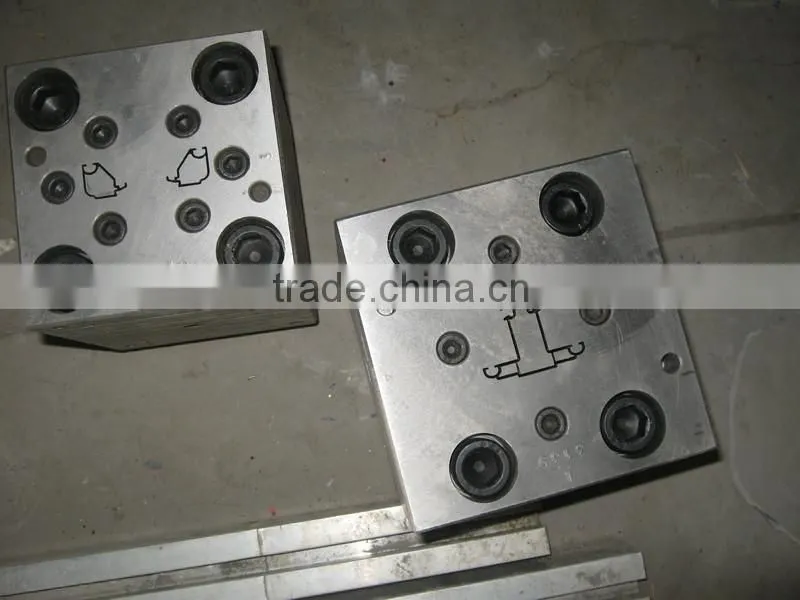

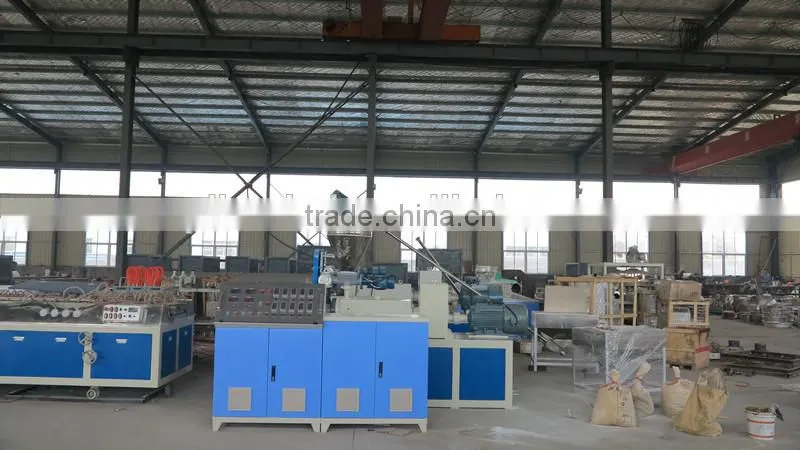

Reference pictures:
Turn key project.
Technical documents
We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
Arrangement for inspection, installation and testing work
a.After being informed machines ready for inspection, customer can send engineers to our factory.
b.After the machines are delivered to customer’s factory;We will send one or two technicians to the factory after preparation work is completed;Technicians will be responsible for guide on-site installation and testing machines.
c.Meanwhile technicians will give free training lessons to labors in customer’s factory.
Qingdao Hanhai Plastic Machinery Co.,Ltd. is located in Jiaozhou city, Shandong province, China. It’s high-tech manufacturer specializing in research & development and producing extrusion equipment. Company has good R & D employees and experienced mechanical , electrical commissioning engineers. The main products are including:
UPVC, PPR small diameter pipe extrusion line.
Large diameter PE water pipe, MDPE gas pipe, UPVC pipe extrusion line.
PVC,PP,PE,ABS,PC,PS sheetboard extrusion line.
PVC window profile, ceiling , window sill, siding plate extrusion line.
PVC, PP, PE wood plastic door panel extrusion line.
PE-RT hot water pipe, PEX underground warm pipe, PP-R, PP, PP-B new water pipe extrusion line.
PE Collective fiber glass pipe, PVC-C high voltage cable protective pipe, PE/PVC cross-section communication cable pipe extrusion line.
All kinds of conical twin screw extruders, parallel twin screw extruders,single screw extruder.
We have more than 15 years producing experience . Can supply all technology information you need.
For more information pls contact :Tracy Guan
Mobile/whatsapp/viber /wechat:+86-13864850419
skype:tracyroseguan
