Home > Products > 01.Plastic extruder > Plastic Machine for Pvc Pipes
Plastic Machine for Pvc Pipes
- Qingdao Port
- T/T
You May Like
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | Automatic | Place of Origin | Shandong, China | |
| Brand Name | Hanhai | Model Number | SJSZ80/156 | |
| Voltage | 380V 50HZ | Power(W) | 150KW | |
| Dimension(L*W*H) | 23*3*3 | Weight | 4000kg | |
| Certification | CE and ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
plastic machine for pvc pipes
http:///en
contact person:Tracy Guan
Skype:tracyroseguan
Mobile:+8613864850419
A. What is the feature of our PVC Pipe Machine
1.High efficiency twin screw extruder.
2.It can produce pvc pipes.
3.The pipe diameter range:16-630mm or customes request.
4. The pvc pipe is mostly used in construction industry water supply, drain,electrical cable coating and under ground sweage treatment and so on.
B. Technical Parameters
Model number | PVC-16/63 | PVC-20/110 | PVC-50/160 | PVC-75/250 | PVC-110/315 | PVC-200/450 | PVC-315/630 | PVC-500/800 |
Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm | 500-800mm |
Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h | 650kg/h | 800kg/h | 1400kg/h |
Production rate | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min | 0.1-1m/min | 0.07-0.7m/min | 0.05-1 m/min |
Extruder model | SJZ-51/105 | SJZ-51/105 | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | SJZ-92/188 | SJZ-105/220 |
Installed power | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw | 305kw |
Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm | 1350mm |
Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m | 38*3.2*2.8 m | 42*3.5*3.2 m |
C. Main Composition
| Item | Quantity |

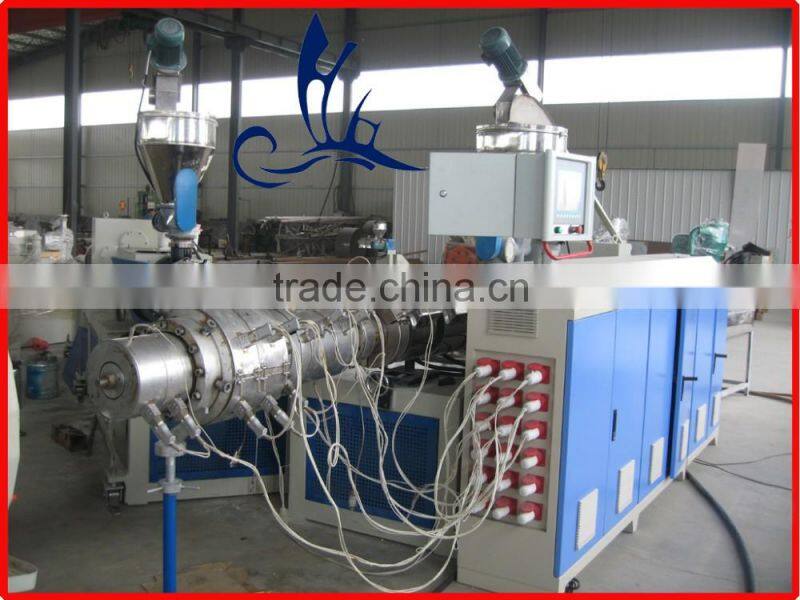

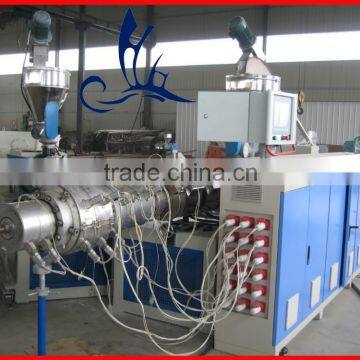

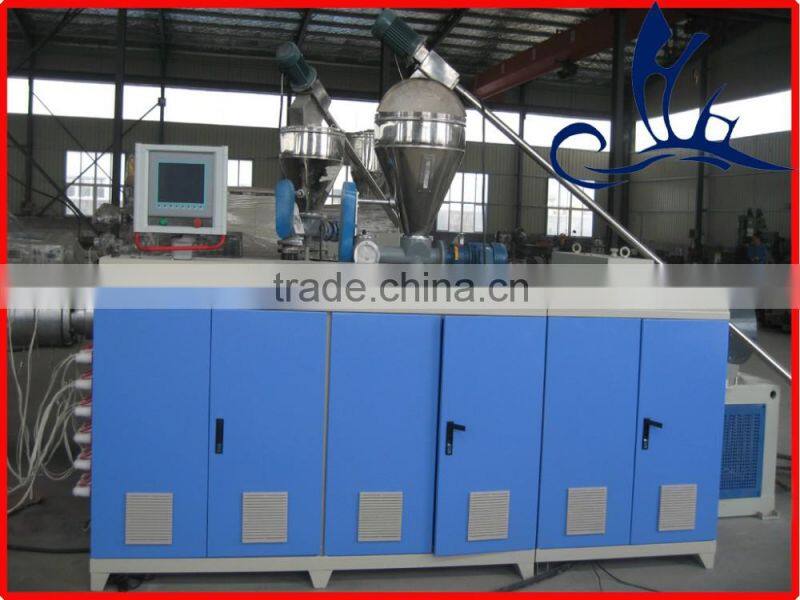

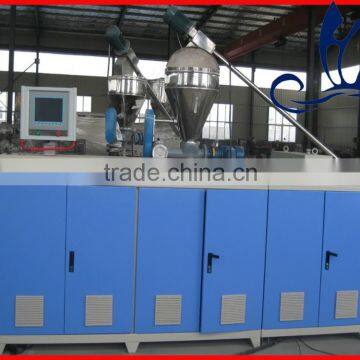

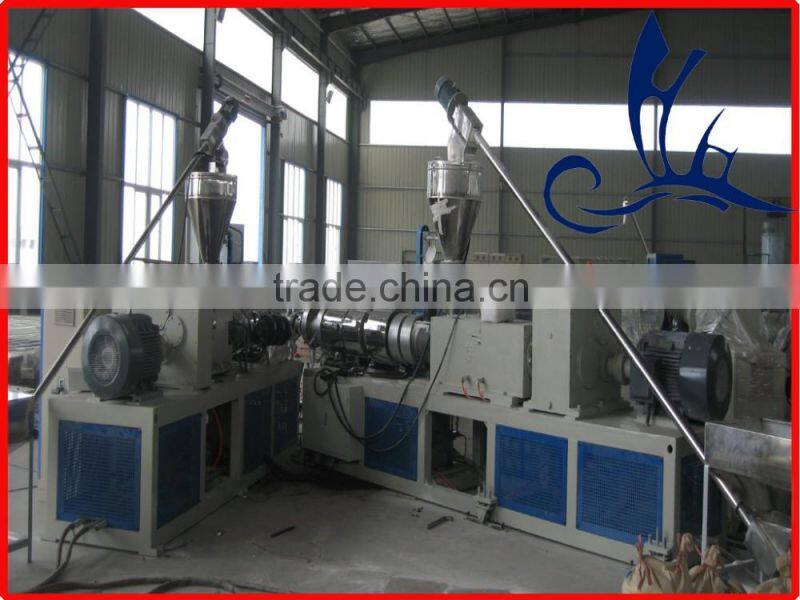

| conical twin screw extruder (Equipped with automatic feeding unit) | Two sets |
| Die and Mold | One set |

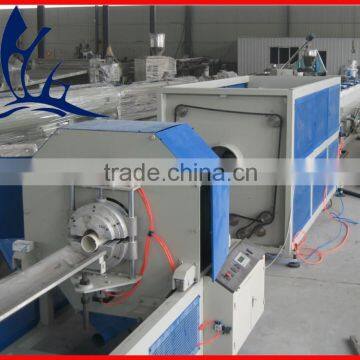

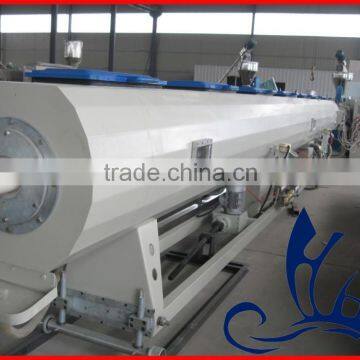

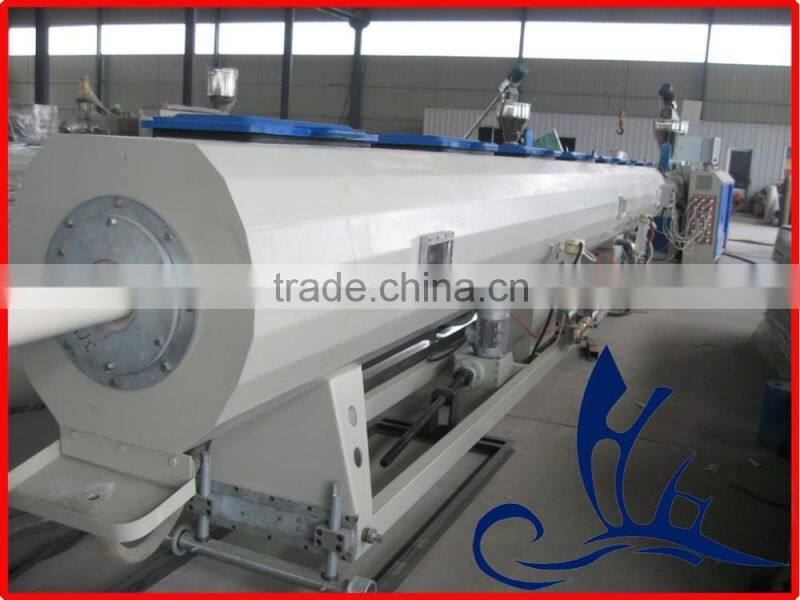

| Vacuum calibration unit | Two sets |

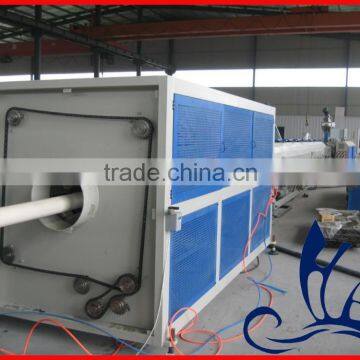

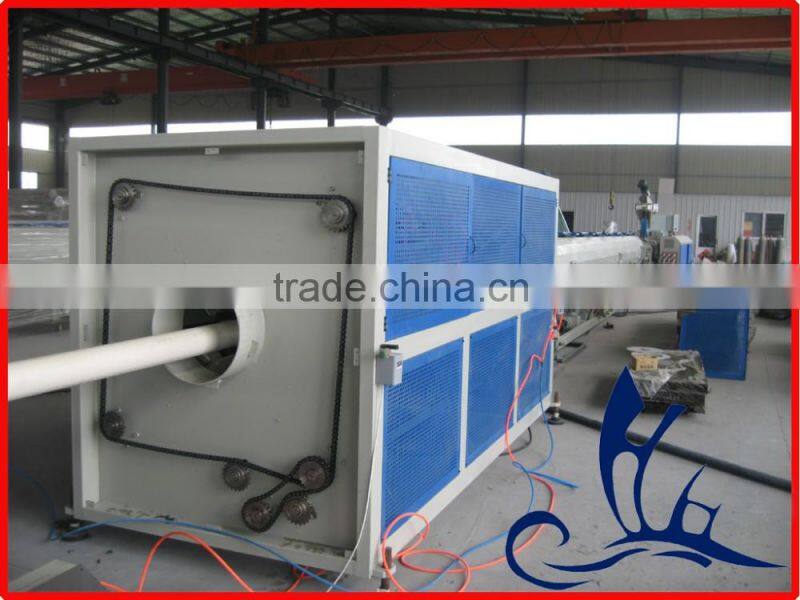

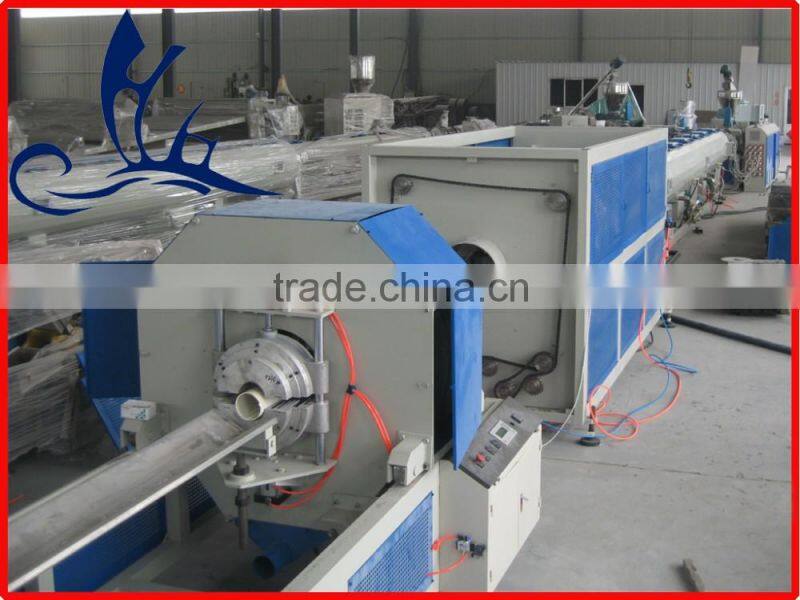

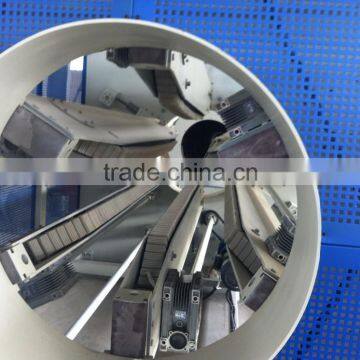

| Haul-off unit | One set |

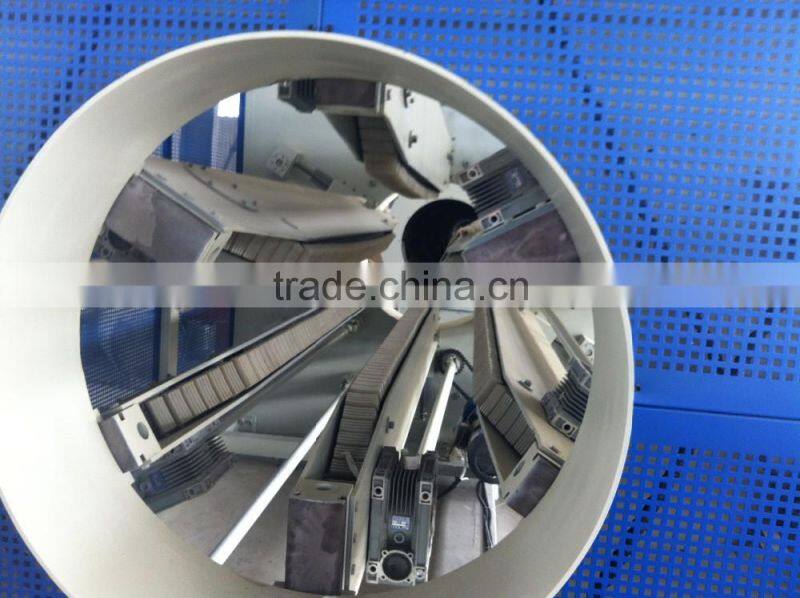

| Cutter Unit | One set |
| Stacker | One set |
Reference pictures:
Turn key project.
Technical documents
We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
Arrangement for inspection, installation and testing work
a.After being informed machines ready for inspection, customer can send engineers to our factory.
b.After the machines are delivered to customer’s factory;We will send one or two technicians to the factory after preparation work is completed;Technicians will be responsible for guide on-site installation and testing machines.
c.Meanwhile technicians will give free training lessons to labors in customer’s factory.
Qingdao Hanhai Plastic Machinery Co.,Ltd. is located in Jiaozhou city, Shandong province, China. It’s high-tech manufacturer specializing in research & development and producing extrusion equipment. Company has good R & D employees and experienced mechanical , electrical commissioning engineers. The main products are including:
UPVC, PPR small diameter pipe extrusion line.
Large diameter PE water pipe, MDPE gas pipe, UPVC pipe extrusion line.
PVC,PP,PE,ABS,PC,PS sheetboard extrusion line.
PVC window profile, ceiling , window sill, siding plate extrusion line.
PVC, PP, PE wood plastic door panel extrusion line.
PE-RT hot water pipe, PEX underground warm pipe, PP-R, PP, PP-B new water pipe extrusion line.
PE Collective fiber glass pipe, PVC-C high voltage cable protective pipe, PE/PVC cross-section communication cable pipe extrusion line.
All kinds of conical twin screw extruders, parallel twin screw extruders,single screw extruder.
We have more than 15 years producing experience . Can supply all technology information you need.
For more information pls contact :Tracy Guan
Mobile/whatsapp/viber /wechat:+86-13864850419
skype:tracyroseguan
