Help CenterDKW-25TD Extrusion Blow Moulding Machine
Related Products
Specifications
1)Single to eight multi-heads2)Double station
3)de-flashing

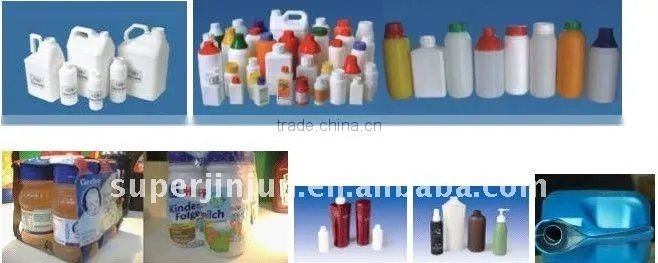

4)make from 0.4 to 12L containers
5)Flat movement line near
20 years experience of blow moulding industry

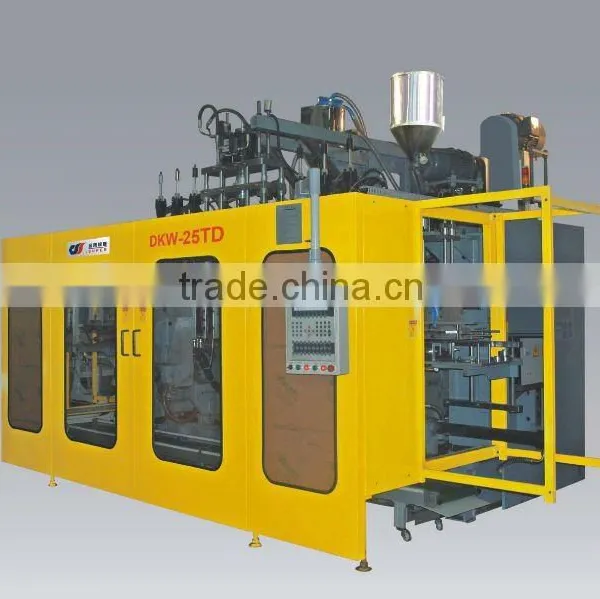

DKW-25TD flat movement track-moving Double Station extrusion blow molding machine
Product introduction:
DKW series model is one of our JinJun’s outstanding fruit from many years major in research & develop blow molding machine. We always service the market as our guide idea, design aim at each industry character, meet our greatness customers suggestion, to seek for more reasonable automatic production effect, and this model is fast, steady, reasonable, multilayer, multi head, high grade automatic, will be have more stronger competition in the sample line business.

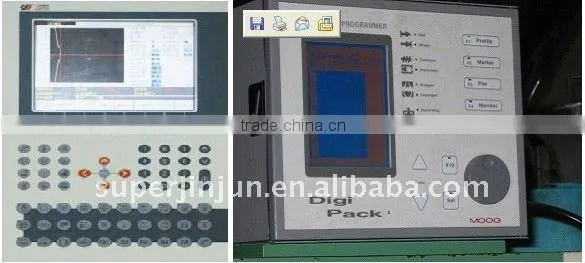

Control System
The whole machine is control by Austria B & R series PLC and exceed 10 inch man-machine interface display, B & R 100 point parison controller, can achieve system high reliability, multi function and intelligent.
1.display supervise function for the real time machinery movement
2.100 point parison thickness control can be enactment at will
3.simulation flux precision can be reach 16 digit
4.display cycle time automatic movement
5.display real time trouble alarm information and reason
6.display and amend heating zones, temperature, pre-heat settings, alarm for low temperature and high temperature
7.including many kinds of safe lock function
8.parameter can be set in the touch screen
9.display many kinds of language, such as English, Spanish, Chinese ect.
Optimize Extrusion System
A. Optimization of screw, barrel, with the following characteristics:
B. Using variable frequency speed regulation motor drive
C .forced cooling of the slotted forced feeding section design, extrusion rate high, produce each product weight stability.
D.The temperature control precision by PCC
E. Screw design can meet the high yield, but also can ensure the plasticizing uniform.
F. The screw and screw head for a variety of commonly used thermoplastic plastic, such as PE, PP, PETG, PA ... ...

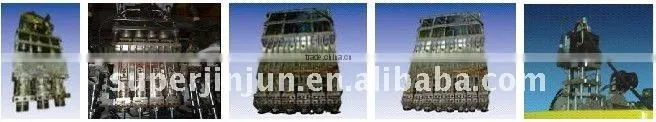

Optimize mould head
A. Multiple channel die center distance, can accommodate more cavity.
B. With central feeding type and core shaped complementary channel type, the parison wall thickness more uniform, color changing fast.
C. From single layer to a six layer co-extrusion, meet the needs of different users.
D. All kinds of die are equipped with mold wall thickness control system and can adjust the die and the
mandrel, the products of the wall thickness was optimized, and plastic raw materials saving.
E. All of the die can be added with an eye device.

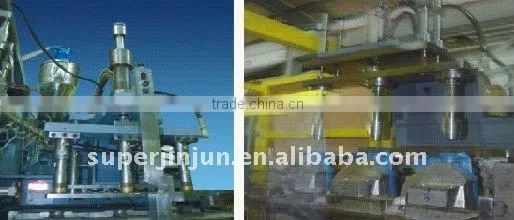

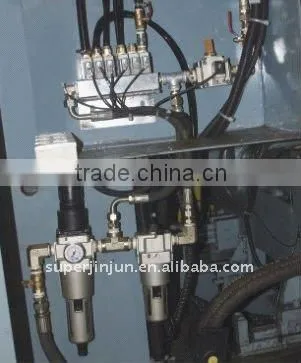

Pneumatic System
We use Germany FESTO and Japan SMC pneumatic parts, according to our many years blow experience, we design different blow techniques system, such as clearance exhaust, air drying, low temperature control.Blow System
Introduce into Europe design idea, it’s tightness and durable, can be adjusted outside the safe door, can be choose adjustable angle slant blow function if request.

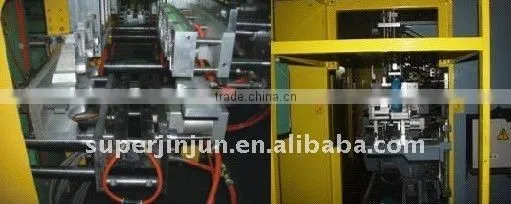

Automatic removal of trimming system
Precision machinery hand bottle fetching device, the finished container upright on a carousel.
Lubrication system
Without staff, fully automatic timing for mechanical parts increased lubrication, prolong the service life of the equipment

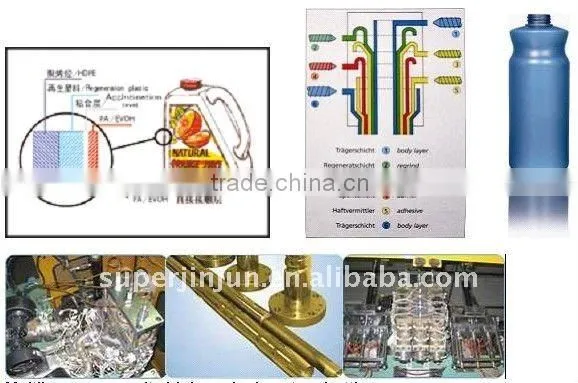

Multilayer composite high vaginal septum bottle
Technical characteristics:
Composite high barrier bottles is a kind of high density polyethylene as base, the current world barrier organic solvent quality synthetic polymer inner layer, intermediate bonding layer and to strengthen to a high-tech products. It can effectively overcome the single-layer HDPE bottles to organic solvent, easy deformation and easy penetration of monolayer PET bottles easily permeable, not high DMF, high temperatures and other shortcomings, is currently the most innovative high-grade food, medicine, chemical products, pesticides and other industries packaging bottle.
1. with the United States FDA and European EEC standard, can be in direct contact with food
2. in conditions of high humidity, still maintain excellent oxygen gas barrier properties
3. it was neutral on packing taste without effect
4. the smallest fragrance collection after long-term preservation packaging after fragrance is not reduced
5. excellent surface gloss
6. to below 300 nm ultraviolet complete barrier
7. good scratch resistance
