Specifications
AAC Block manufacturers1.ISO9001/CE
2.pure Germany technology
3.50 lines overseas
4.3 offices abroad
aac block machine industrial steam autoclave for Light weight block machine
aac block equipments AAC Block manufacturers
AAC Aerated Autoclaved Concrete Block Machine production line plant
Welcome Visiting Dongyue Machinery Group
Dongyue Machinery Group Com.,Ltd is specialising in AAC Plant for more than 18 years,with good quality and competitive price,have office in India,Indonesia,Vietnam,more than 30 lines overseas.And we are cooperating with German Company.
Our company video Introduction:http://youtu.be/TF6TeRBr9XE
1.introduction
Areated concrete block (light weight block ) is the light and porous buidling material. It has light weight, keeping temperature cant burn and other advantages.it can be made into many kinds of bricks for example:600×200×100,80×80×180,240×115×53,600×200×125),they could be used industry building and common building.they are more and more popular in the world.in the future,they will replace the Clay brick completely.
2.AAC block machine/lightweight block machine Advantages
(1)light weight
Areated concrete block density is usually 400-700kg/m3,(according the market in produce ),same as
1/3 of clay brick and 1/5 common concrete.So use the aerated block can reduce the weight of the
build more,and also reduce the beam of roof and pillar press best, then you can see,it can save the
material and cost,it also fighting shaking.
(2) keeping temperature
It has many are porous,the delivery hearting coefficient is 0.9-0.22W/(mk),the same as 1/4 or
1/5 of clay brick,so it is best materials now in the world.There are many kinds material,have
lowest waste.
(3)High Strength
High pressure steam-curing autoclaving process gives AAC unmatchable strength to weight ratio, higher than even M150 concrete and far exceeds the Indian Building code requirements
(4)Cost saving
Being lightweight AAC drastically reduces the dead weight of building, resulting into reduction in steel (up to 27%) and cement (up to 20%) structural cost saving.
Being 8 times the size of a clay brick, AAC wall construction involves 1/3 the joints, thus an overall mortar saving up to 66%
3. equipment industriel from china for autoclaved aerated block machinery DESCRIPTION
1 Product weight is according to 600kg/m3 to control.
2 annual capacity 200,000M3
3 set raw material proportion: cement 6.5%, raw lime 23%, flyash 68%, gypsum 3%, aluminum paste
powder 350g/M3.
4 water and material rate 0.631
5 one mould product 2.88M3
6 Casting slurry cycle time 5-6 minutes, cut cycle time 5 minutes.
7 casting slurry temperature 38-42 degree
8 body quiet stop. Time is 1.5-2.5housr, temperature 50-90 degree, after quiet stop body strength is 0.15- 0.18Mpa
9 Steam curing cycle time, come in and out autoclave about 0.5hour, steam curing cycle time about is 6 hours/1.6Mpa, total 6.5 hours.

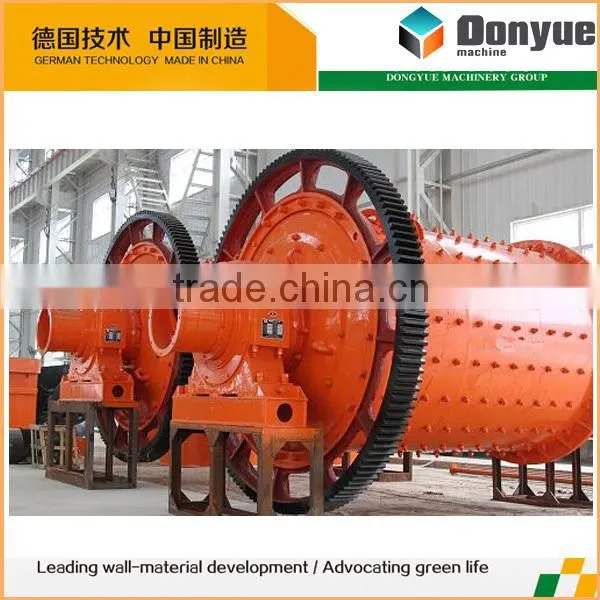

AAC block ballmill

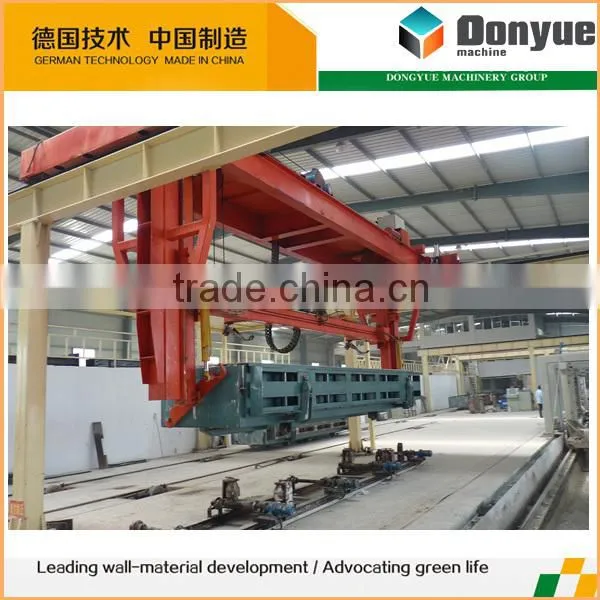

AAC reversal crane

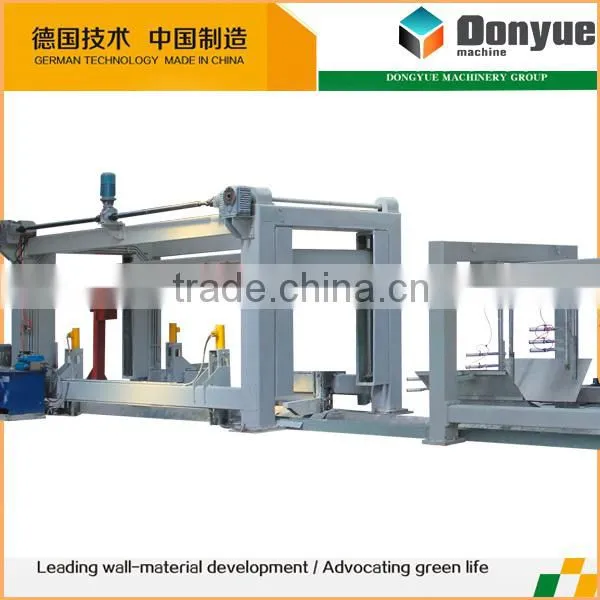

cutting machine

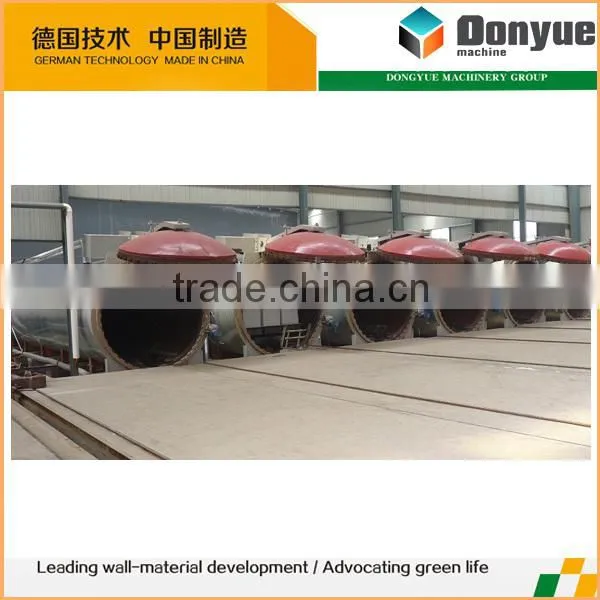

autoclave

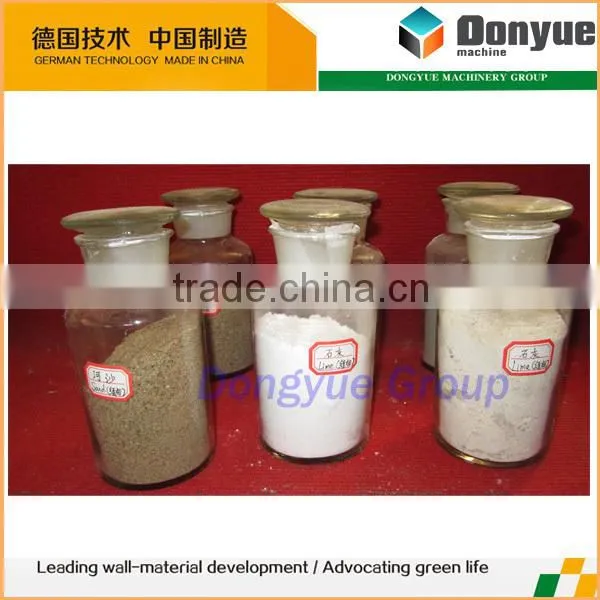

4.AAC block raw material proportion
a. Fly ash stype aerated block
name |
unit |
Cement lime fly ash |
flash |
% |
65-70 |
cement |
% |
6-15 |
lime |
% |
18-25 |
gypsum |
% |
3-5 |
Aluminum powder paste(600kg/m3) |
1/10000 |
8 |
Water & material rate |
0.60-0.65 |
|
Casting system |
OC |
36-40 |
Aluminum mixing time |
S |
30-40 |
Name |
Unit |
Cement Lime Sand |
Sand |
% |
55-65 |
Cement |
% |
10-20 |
Lime |
% |
20-30 |
Gypsum |
% |
2-3 |
Aluminum powder paste(600kg/m3) |
1/10000 |
8 |
Water & material rate |
0.65-0.75 |
|
Casting system |
OC |
35-38 |
Aluminum mixing time |
S |
30-40 |
5. AAC block Market Analysis
AAC is becoming more and more popular around the world, from western countries and then to developing countries. Below Properties make AAC have unmatchable property, especially for high buildings:
1) Extreme Light Weight
2) Large Variety of Sizes
3) High Fire Resistant
4) Excellent Thermal Insulation
5) Great Sound Insulation
6) Moisture Protection
7) Termite Resistant
8) High Workability and Easy Processing

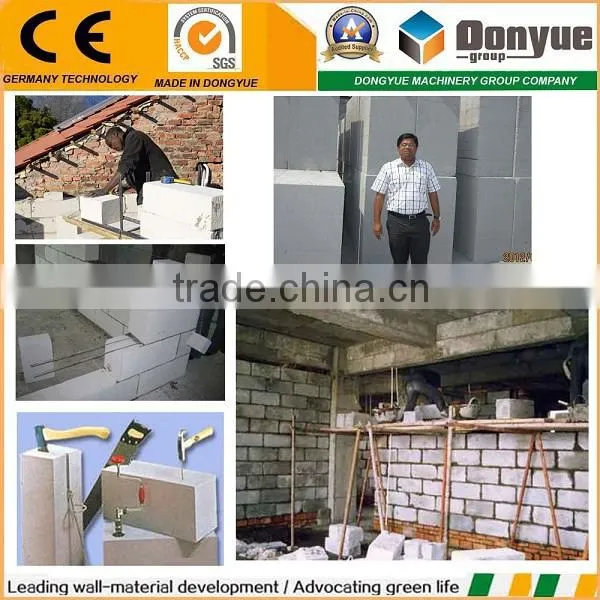

AAC block used in construction:

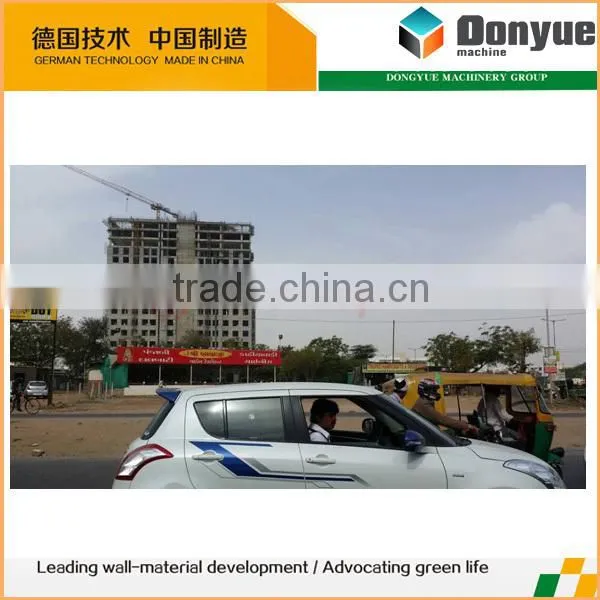

AAC block use in India for building
We are the top leader in China on manufacturing the Autoclaved Aerated Concrete Line(AAC) with 65% market share. We have exported our lines to different countries -- Russia, Thailand, Ukraine, Middle East and so on.And we have more than 30 AAC production lines in abroad.We also have office in India and in Indonesia.
Cooperation with Germany Gmbh
We can supply our customer for designning, production, installation, commissioning, training and good after-sale service. Capacity: from 50000 cubic meter to 300,000 cubic meters per year.

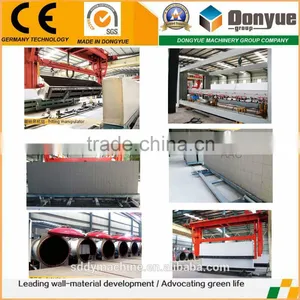

Equipments: stocking raw materials, mixing, molding, forming, cutting, evaporating and curing, crane cramp, transporting etc,

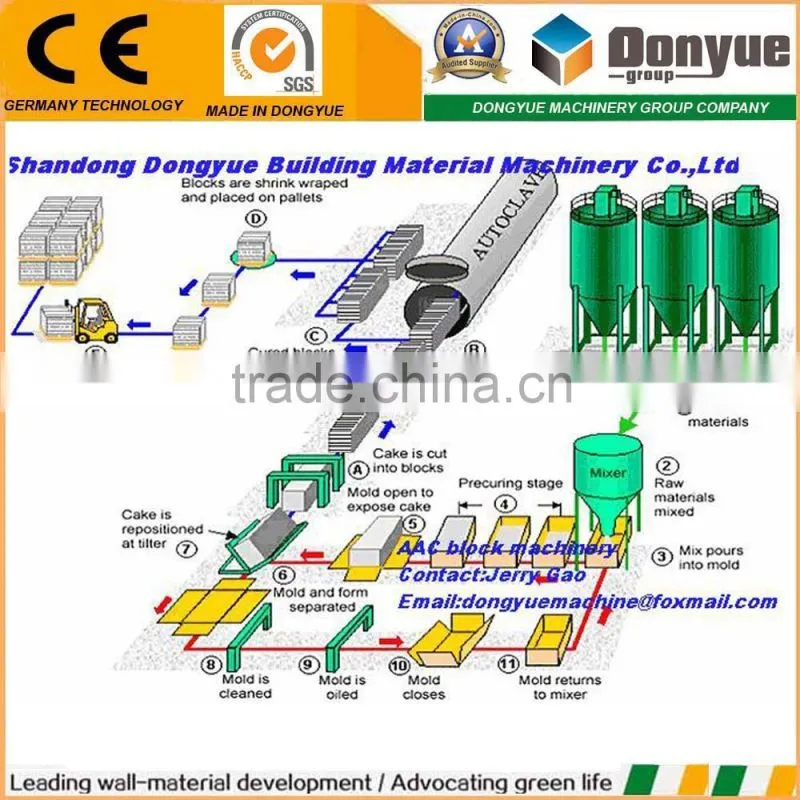

AAC block production flowcharts :
For better understanding,please click below video to see its working :
AAC block machinery working video : http://youtu.be/El0lv8Not2I
Sincerely hope we can cooperate with each other
Contact : Jerry Gao
whatsapp/viber/wechate/Cell phone :0086 15054985958
Skype: Brick-machine
