Specifications
1.automatic concrete block production line2.Chinese famous brand
3.ABB/SIMENES MOTOR
4.Control by PLC
5.Min order qty:1

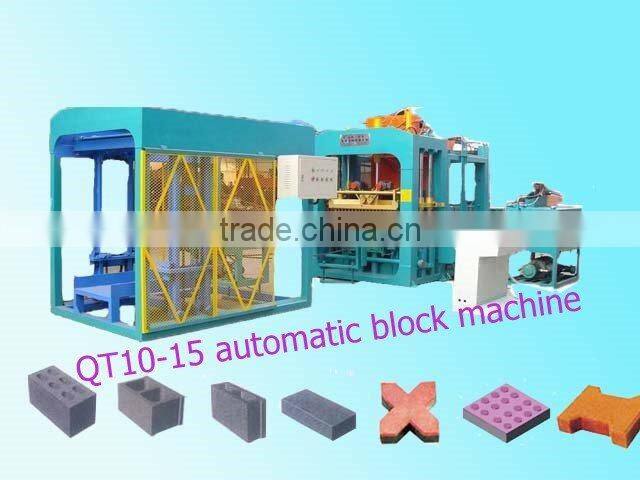

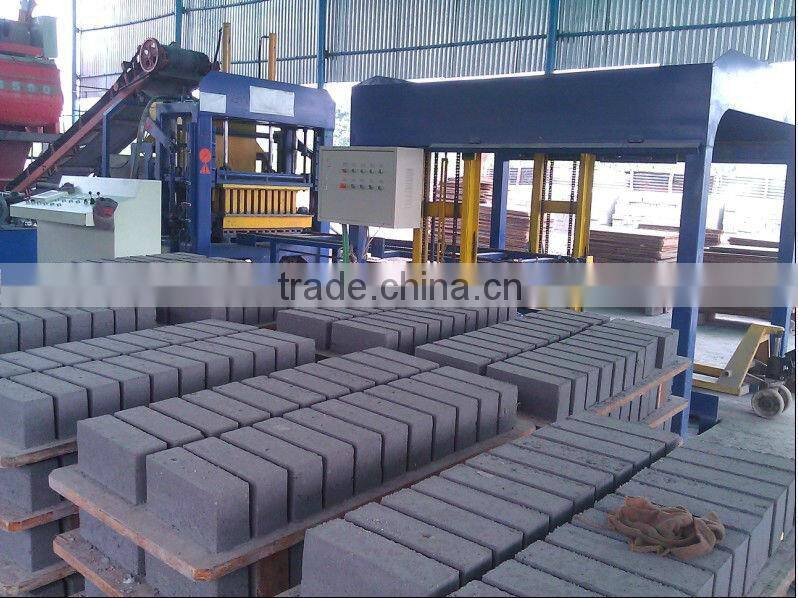

QT10-15 Concrete automatic concrete block production line price
ncrete automatic concrete block production line --- China Manufacturer Dongyue Machinery Group Co.,Ltd Simple Introduce
Our company was incorporated in 1994 under the former name of DONGYUE Building Material Machinery. We now have a registered capital of 53.5 million RMB and total assets amounting to 380 million RMB. Our current staff roster exceeds 1500 employees. Each year we assemble more than 5000 sets of block-making machines and over 500 autoclaved aerated concrete / autoclaved lightweight concrete panel production lines. The annual production capacity of our AAC block production line ranges between 100 to 400 thousand cubic meters. Similarly, our autoclaved aerated panel equipment can yield up to 300 thousand cubic meters each year.
Now we set up office in India, Indonesia,Vietnam, can supply the best after-sale service for customers
2 QT10-15 automatic concrete block production line --- production capacity
Size(LxWxH):mm |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8 Hr |
230X110X70 |
42 |
7500-8800 |
60000-70400 |
400X100X200 |
20 |
3000-3600 |
24000-28800 |
400X150X200 |
14 |
2100-2520 |
16800-20160 |
400X200X200 |
10 |
1500-1800 |
12000-14400 |
400X250X200 |
8 |
1200 |
9600 |
|
Paver:200X100X60
|
35 |
5250 |
42000 |
|
Paver:200X165X60
|
20 |
3000 |
24000 |
3.QT10-15 automatic concrete block production line ---main technical parameters
Dimension of host machine |
3500×2220×2850mm |
Moulding area |
1025×810mm |
Moulding period |
15-25S |
The size of the pallet |
1300×900×30mm |
Weight of the host machine |
14T |
Host machine power |
45.38KW |
Vibration force |
100KN |
Mixer model |
JS750 |
General water Consumption |
12T/every day |
Voltage |
380V,according to client local voltage |
4.QT10-15 automatic concrete block production line ---product introduction
Our machine,with harmonic cooperation between electric and hydraulic machines functions, guarantee a reliable and high output production of concrete blocks
1.Use Janpan Mitsubish PLC control system and Siemens Motors:
A.Mitsubish PLC, with great adaptability,guarantee the stability and reliability of the machine
B.Visualization touch screen with easy operation
C.Siemens Motors, Higher degree of protection, to ensure the use of safe and reliable for customers, improve parts connection reliability

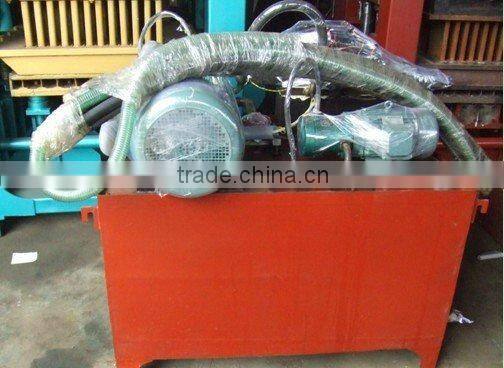

2.Hydraulic system
Hydraulic components made in Taiwan, we use high-dynamic proportional and directional
valves, which automatically adjust the oil flux and pressure as per specific working requirements, this design greatly prevent the cylinder from damage
3.360° Multi-Shaft Rotating and Compulsory Feeding
A.Speedy and rotating feeding, with uniform mixing, to make sure that the density and intdensity of the products are guaranteed
B.This uniform feeding is applicable for different kinds of raw materials and moulds
4.Use heat treatment on moulds and main parts of the machines
A.Heavy duty machine structure and wear resistant moulds
B.This greatly improves the using lifetime of the machine moulds

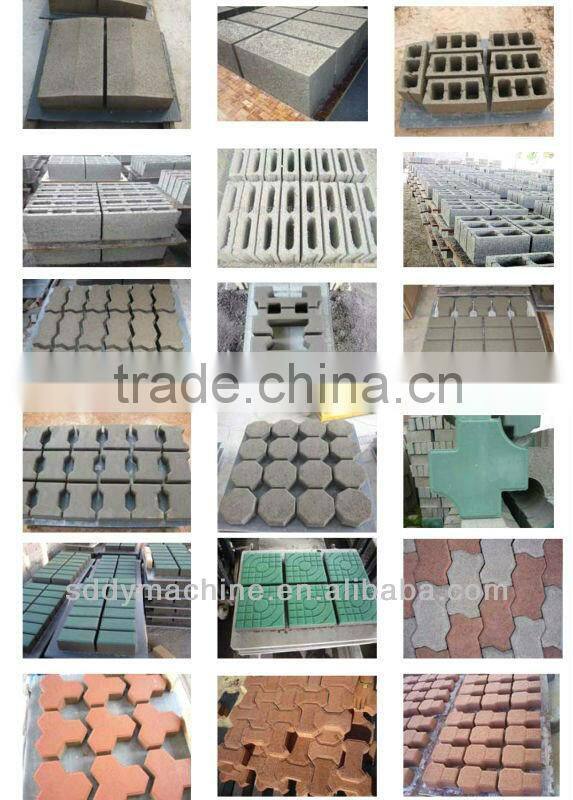

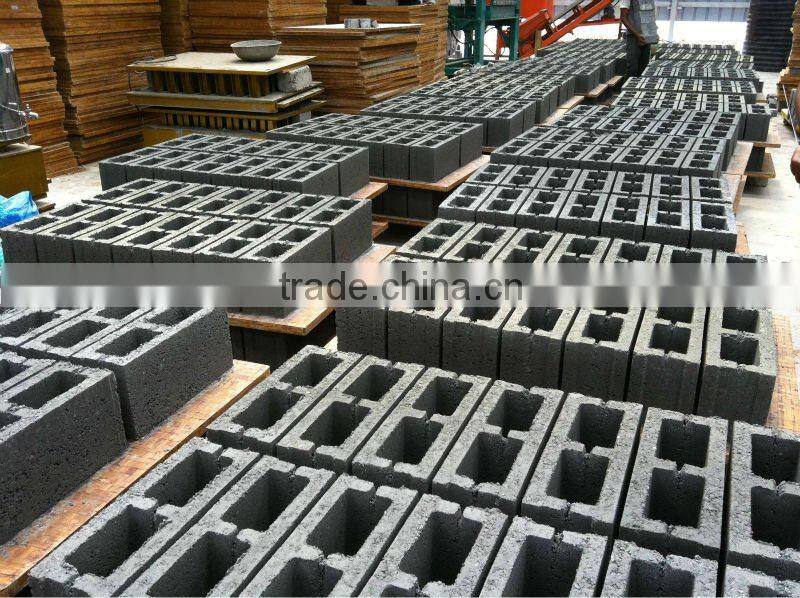

5.Block Sample--- QT10-15 automatic concrete block production line
Contact ways:
contact person: Emily Dai
Mobile no.:+86 13508996452
Skype: emilydai09
