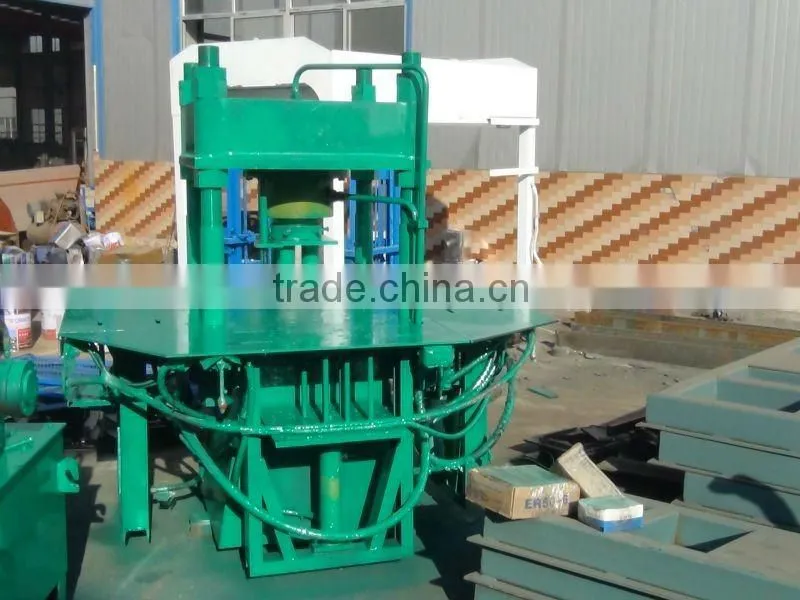

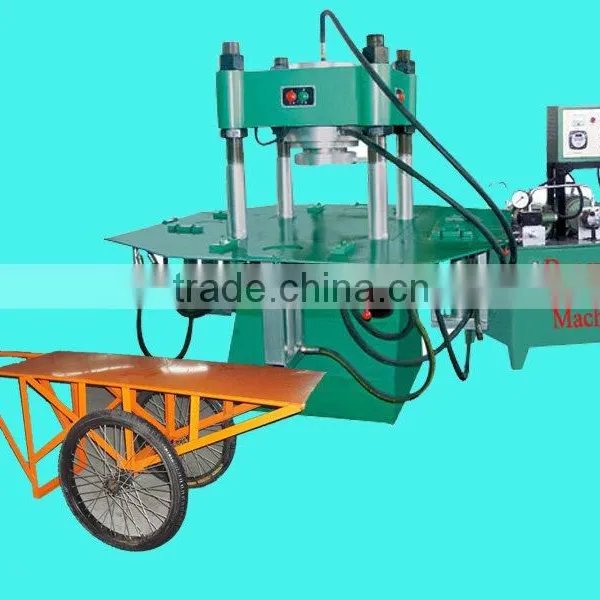

Interlocking Paving Stone Making Machine

Interlocking Paving Stone Making Machine photo-1
US$ 6,000 - 8,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paving Block Making Machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Paving Block Making Machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 2500-3500 blocks/8 hours
Place of Origin Shandong, China
Brand Name DONGYUE
Model Number DY-150T paver machine
Voltage clients industrial voltage
Power 11kw
Dimension(L*W*H) 2390*2200*2550mm
Certification CE, ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

interlocking paving stone making machine
Heat treatment mould
ISO9001/CE/SG
Siemens motor
Better after service ,low price



interlocking paving stone making machine

paving stone making machine

paver brick/block machine





1.Product introduction



Our products are mainly producing color blocks/bricks,paver,interlock,etc.

With high pressure,the blocks are of high-density.



1..DY-150TB paver machine main technical parameter



Max  pressure

1500KN

Total power

11kw

Production

1500-2000 blocks/day

Machine weight

3200kg

Machine size

2390x2200x2550mm

Maximum specification(block)

500x500x150mm

Working position

Two working positions

blocks

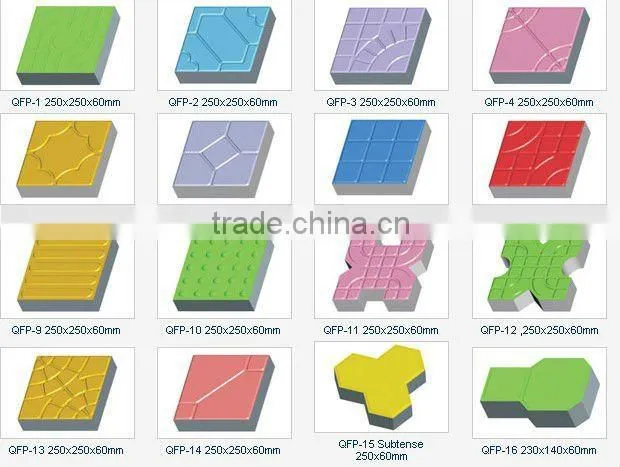

Can make all kind of paver block,kerbstone,lawn block

workshop area : 200m2 , need about 3-4 workers .the office , curing area and stacking area to arrange according your fact status.



2..production capacity

Size(LxWxH)

Pcs/ 8 Hr

Size(LxWxH)

Pcs/ 8 Hr

Paver:200*100*60

1800-2000pcs



Paver:250x250x60

1800-2000pcs

Paver:200*165*60

1800-2000pcs



paver



3600-4000pcs

Paver:225*112.5*60

1800-2000pcs

paver

1800-2000pcs



Rmarks: we can produce different size blocks according to clients' requirments.







Model

name


size

production/day



DT-150T

Bloated brick



200*100

2 pcs /mould

10 hours

4000 pcs

Maple leaf brick



2500-3500 pcs

Brick-shaped



2500-3500 pcs

Octagonal-shaped brick



2500-3500 pcs

Rocket brick



2500-3500 pcs

Tri-Brick



2500-3500 pcs

Butterfly Grass brick



1800-2000 pcs

Favi



2500-3500 pcs

Dutch brick



200*100*60

3500-4000 pcs

Blind brick



200*100*60

2pcs/mould

3500-4000 pcs

Blind brick



250*250*50

2400 pcs

Blind brick



250*250*50

2400 pcs

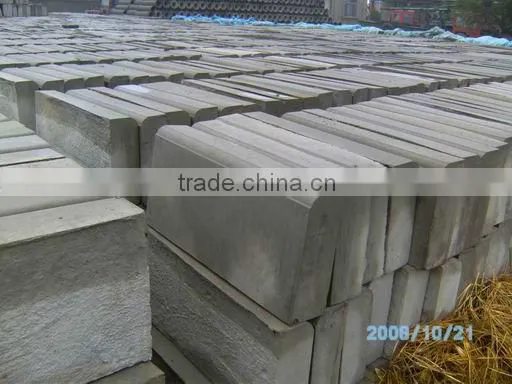

Curbstone



1200 pcs



interlocking paving stone making machine



  interlocking paving stone making machine



interlocking paving stone making machine



If you have any question about paver block machne .please do not hesitate contact me .



Sincerely hope we can cooperate with each other.
