Paving Bricks/ Brick Paving Machine/ Pavers
- 300 Set / Sets per Month
- QingDao China
- T/T Credit Card
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 11520-13440 blocks/8hours | Place of Origin: | Shandong, China | Brand Name: | DongYue |
Model Number: | QT6-15 | Voltage: | 220/240/380/440V | Power: | 27KW |
Dimension(L*W*H): | 35000*2300*2930mm | Certification: | ISO9001 CE SGS | Warranty: | One year |
After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
brick making machine concret block machinemultifuctional, produce various bricks
pass ISO9001 and CE

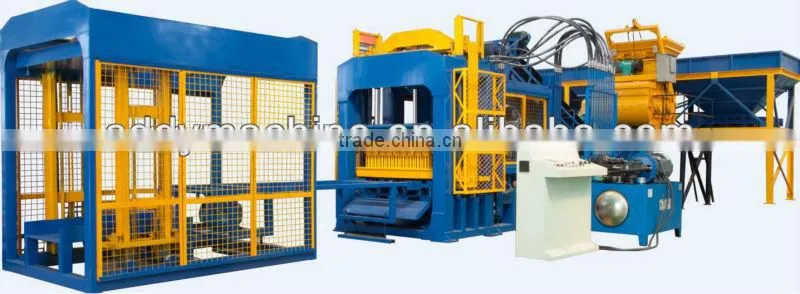

QT Automatic Concrete Brick Machine Production Line / Fly Ash Brick Machine
1. burning-free granite Paving Bricks/ Brick Paving Machine/ Pavers mainly advantage:
(1).Automatic concrete brick machine production line using Germany Siemens Motor, which is the best motor brand in the world. Its lifespan is 1.3 times than that of common motor.
(2).Automatic concrete block machine production line using Japan Mitsubishi PLC control system and Omron travel switch, achieving dialogue and exchange between man and machine. Dozens of mechanical action of different products could be adjusted through the menu to select the addition and subtraction without needing professionals.

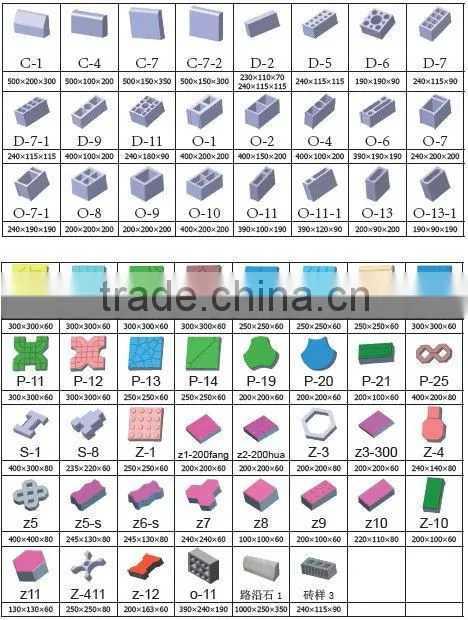

(3).Automatic fly ash brick machine production line as a multi-purpose machine, exchangable mould can produce normal bricks, hollow bricks, multi-holes' bricks,paving bricks, interlocking brick etc..
(4).Automatic concrete brick machine production line scatter material through revolving 360 degree , this process likes to mix the material again after the mixer, the technology makes the blocks evenly and high density.
(5).Automatic concrete brick machine production line mould got heat treatment and carburization technology, making the antiwear ability 1.2 times as the normal mould.
(6). Automatic concrete brick making machine production line hopper installed a swing-type cutting device, it can put the materials into the molding box uniformly by adjusting the swinging fork.
2. Detals instroducing of burning-free granite Paving Bricks/ Brick Paving Machine/ Pavers
A. Paving Bricks/ Brick Paving Machine/ Pavers Main Technical Parameter
Host machine demension: | 2800*1800*2700mm |
Rated pressure: | 40Mpa |
Main vibration form: | platform vibration and hyraulic pressure |
Vibration frequency | 4600(r/min) |
Pallet size | 1050*550*25mm |
Molding cycle: | 15-25s |
Power | 25KW |
Weight of Machine | 7.5T |
Production capacity | 10m³/h |
(2). burning-free Paving Bricks/ Brick Paving Machine/ Pavers Production capacity
Size | Quantity | Shaping Cycle | Per hour | |
Hollow block | 400*200*200mm | 4 | 15-25s | 750pcs |
Hollow block | 400*100*200mm | 8 | 15-25s | 1500pcs |
fly ash brick | 230*110*76mm | 24 | 15-25s | 4000pcs |
color brick | 200*100*60mm | 16 | 15-25s | 2800pcs |

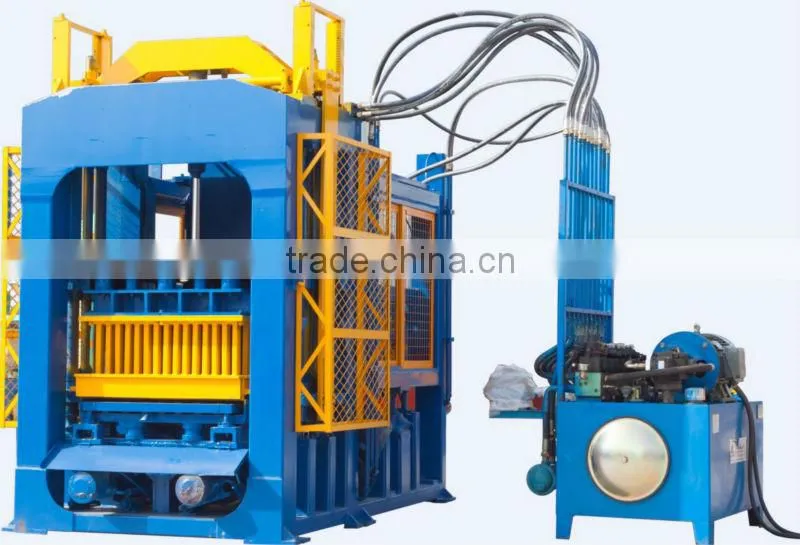

B.QT6-15 automatic concrete brick machine production line
(1). Main Technical Parameter
Host machine demension: | 2850*2200*2850mm |
Rated pressure: | 60Mpa |
Main vibration form: | platform vibration and hyraulic pressure |
Vibration frequency | 4600(r/min) |
Pallet size | 940*830*25mm |
Molding cycle: | 15-25s |
Power | 35KW |
Weight of Machine | 11.5T |
Production capacity | 20m³/h |
(2).Production capacity
Size | Quantity | Shaping Cycle | Per hour | |
Hollow block | 400*200*200mm | 6 | 15-25s | 1100pcs |
Hollow brlock | 400*100*200mm | 12 | 15-25s | 2100pcs |
fly ash brick | 230*110*76mm | 30 | 15-25s | 5000pcs |
color brick | 200*100*60mm | 24 | 15-25s | 4000pcs |
C.QT10-15 automatic concrete brick machine production line
(1). Main Technical Parameter
Host machine demension: | 3500*2200*2850mm |
Rated pressure: | 100Mpa |
Main vibration form: | platform vibration and hyraulic pressure |
Vibration frequency | 4600(r/min) |
Pallet size | 1300*900*30mm |
Molding cycle: | 15-25s |
Power | 45KW |
Weight of Machine | 14T |
Production capacity | 30m³/h |
(2).Production capacity
Size | Quantity | Shaping Cycle | Per hour | |
Hollow block | 400*200*200mm | 10 | 15-25s | 1100pcs |
Hollow brlock | 400*100*200mm | 14 | 15-25s | 2100pcs |
fly ash brick | 230*110*76mm | 42 | 15-25s | 7500pcs |
color brick | 200*100*60mm | 35 | 15-25s | 6000pcs |
