long full-insulating middle joint flexible pipeline insulating joints
Products Description
1 Brief Introduction of Insulating Joint
To perform insulation and seclusion amony each section of steel pipe, pipelines and equipments to avoid flowing off of electricity because of cathelic protection; to reduce galvanic corrosion and disturbance of disorder current etc. The Joint can effectively protect steel pipelines from electrochemical sorrosion, extend their using lifespan and prevent electric components of equipments from disturbance of disorder current.
2 Material performance of Insulating Joint
| No. | Item | Data |
| 1 | Insulated Material |
Bending Strength: A)Vertical≥390MPa B)Horizontal≥290MPa; Tensile Strength: A)Vertical≥340MPa B)Horizontal≥240MPa; Resistor after the invasion of water ≥5 x 108Ω Compressive Strength≥340MPa Hydroscopicity≤30mg Sealing materials:FPM Puncture Voltage≥35KV |
| 2 | steel matrix | 20#/16Mn Forging |
| 3 | filling material | Cold stream of thermosetting resin |
| 4 | Short Pipe | Intensity is higher than pipeline |
| 5 | Insulated Coating | Imported liquid epoxy resin |
| 6 | anticorrosive material | Heat shrinkable anticorrosive material |
3 Application
• Size Range:DN25(1")-DN1200(48")
• Working Temperature:-10 ~ + 90℃
• Suitabe Meida:Gas ,Oil ,Water
• Pressure Class:ANSI 150-ANSI 600(Up to ANSI1500)

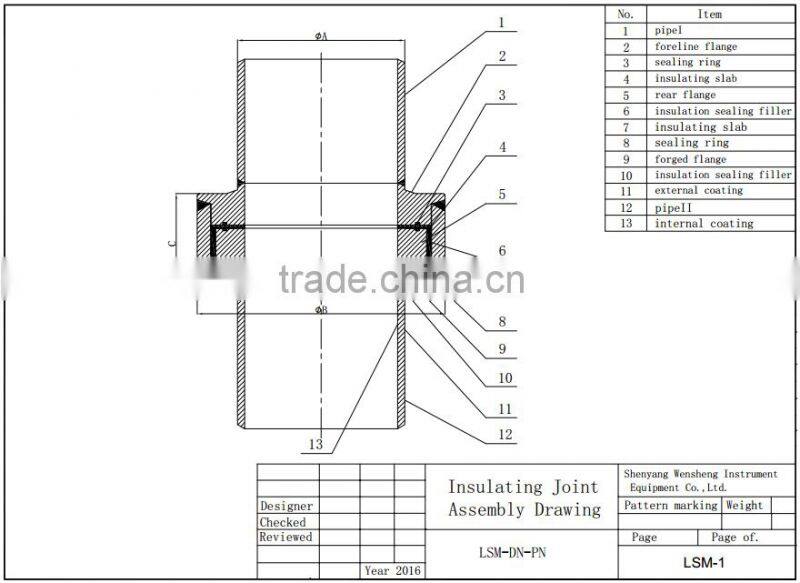

4 Composition of Insulating Joint

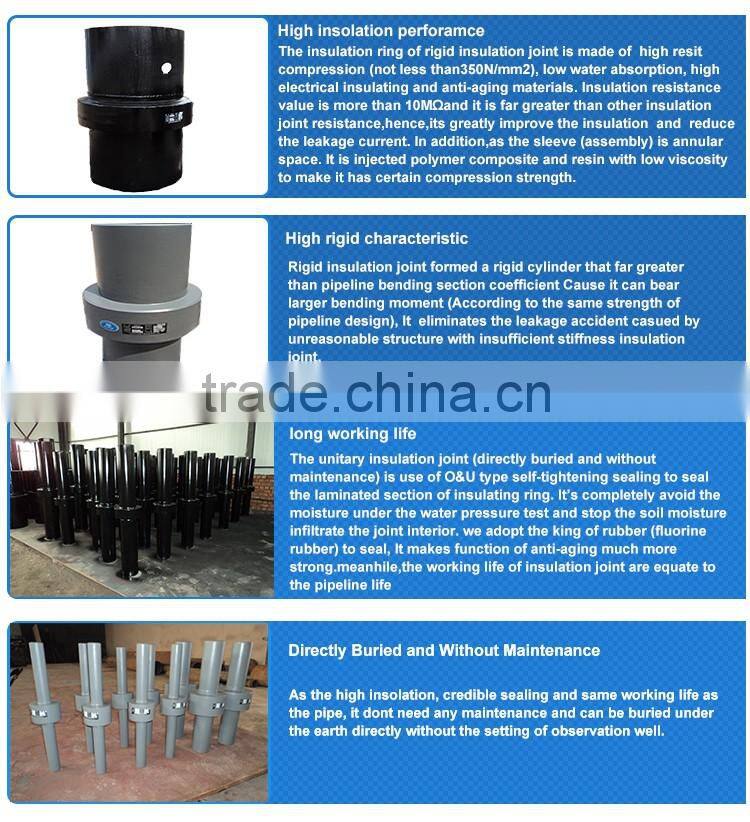

Our Insulating joints Advantage
