hydraulic oem cyclone separator for dust collector machine
- Cyclone Separator is a kind of dust equipment used for removing suspended solids for a long time in the
covening gas.
- Cyclone separator in the application of pipeline engineering solved the pipeline gas of the dust, fog's influ-
ence on the transmission and use of the work.
- Setting the separator in the front-end of filter In the process design can greatly improve the whole process
of the pipeline transmission precision and efficiency, meanhwile, it also can improve the service life of pipe.
- It connected Cyclone centrifugal separation,filtration separation technologies etc as one which widely used
in the separation of gas, liquid and gas, solid separation of the mixture.
- Cyclone separation as an important equipment in natural gas, petroleum, chemical industry, coal-fired po-
wer plants and environmental protection and other fields have been widely used.
- It uses principle of gravity settling, centrifugal sedimentation to isolate solid, liquid impurities and fine dust
particles from air flow.
- When entrained solids and gases from one tangent direction of the droplets into the cyclone, the gas can
rotate on high speed along the wall and downward to the bottom as spiral motion according to the spiral
path.When reach to the bottom then upward as the inner topspin airflow.Finally the gas out from the outlet
of separator into the pipeline.
| Main Shell | Q345R |
| Cyclone Tube | S.S |
| Vane Mist Extractor | Used imported raw materials |
Our cyclone separator specification
| Working Pressure | 1.6-25Mpa |
| Working Temeprature | "-20 - +800 °C |
| Separator Accuracy | 5 µm |
- Notice: Separator Efficiency is according to the Quality Percentage
| Quality Percentage | Separator Efficiency |
| < 5 µm | 90% |
| 5-10 µm | 94% |
| 10-20µm | 95% |
| 20-40µm | 98% |
| 40-60µm | 99% |
| >60µm | 100% |

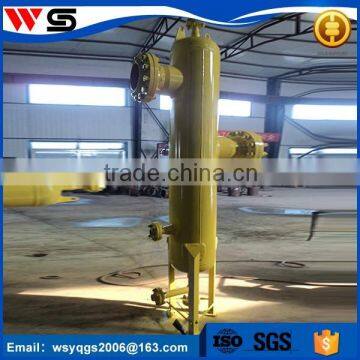

Cyclone separator :Vertical Type
Cyclone separator : Horizontal
- Important Tip:
We make professional cyclone separator and filter separator and can provide matched filter se-
parator equipment ourselves.
