QTM6-25 Automatic Moving Hollow Block Machine in Philippines With Big Capacity

QTM6-25 Automatic Moving Hollow Block Machine in Philippines With Big Capacity photo-1
US$ 8,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Hollow Block Making Machine
Brick Raw Material Concrete
Processing Brick Molding Machine
Method Hydraulic Pressure
Automatic No
Capacity 1440 blocks per hour
Place of Origin Shandong, China
Brand Name DESH
Model Number QTM6-25
Voltage 220v/240v/380v/415V
Power 9.6 KW, 9.6KW
Dimension(L*W*H) 2100x1850x1800mm
Certification CE,ISO9001,SGS,Famous Trademark of China, ISO/CE/ SGS
Warranty 1 Year, 1 year
After-sales Service Provided Engineers available to service machinery overseas

            QTM6-25 automatic moving hollow block machine in philippines with big capacity



Introduction :the QTM6-25  layer block machine is one kind mobile brick machine. based on Italy advanced technology and process, and development mobile hydraulic brick machine, the block machine has great advantage as follow:

1.Technology advanced: the whole design process consider principle of integrative reconciliation and the internal structure of a rational order, so the machine have great technical advantage,it adopt several new technique, such as box excitation, hydraulic discharge, omnidirectional automatically movement
2.High quality: the whole machine is adopted high quality steel, and precision welding, the hydraulic system use high-quality components, so it have a longer life and less fault during work
3.Low investment: high efficiency: this movable block machine have several function features, such as low price,reliable performance, easy to operated, stable, more efficient, high output, low power consumption.the brick it produced have high density, high strength, accurate dimensional, good appearance,so it can reduce the customer's investment and production costs and give fast and large benefit
4.no need pallets:will save the pallets invest cost



Automatic brick laying machine QTM6-25 Thchnical Parameter:



Molding

6PCS/mold

Hydraulic pressure

6-8MPa

Frequency

3500/min

Productivity

8000~10000pcs/day

Hydraulic method

Mold vibration

Demold method

Hydraulic

Turning method

Hydraulic

Total power

12kw

Total mass

2600kg

Molding cycle

20s

Turning method

crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

Total power

concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Total mass

widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc.

Automatic brick laying machine QTM6-25 capacity :



Block type

Block size

Pcs/mould

Pcs/hour

Pcs/day

Hollow blocks

400x200x200mm

6

1000

7000-9000

(16x8x8 inch)

Hollow blocks

400x150x200mm

8

1300

10000-13000

(16x6x8 inch)

Hollow blocks

400x250x200mm

4

700

5600-7000

(16x10x8 inch)

Hollow blocks

400x120x200mm

9

1500

12000-15000

(16x5x8 inch)

Solid bricks

250x175x75mm

14

2016

16128-20160

(10x7x3 inch)



 Parameter of material feeding cart:

Material feeding cart

Motor type

ZS1100

Moror Power

11KW

Rated load

1000kg

Pointed capacity

0.78m3

length of driving wheel

1280mm

Ground clearance

190mm

Empty self weight

1050kg

Outside dimension

2620*1500*1960mm

Geometrical capacity

0.5m3

Wheelbase

1500mm

Minimum turning radius

4m

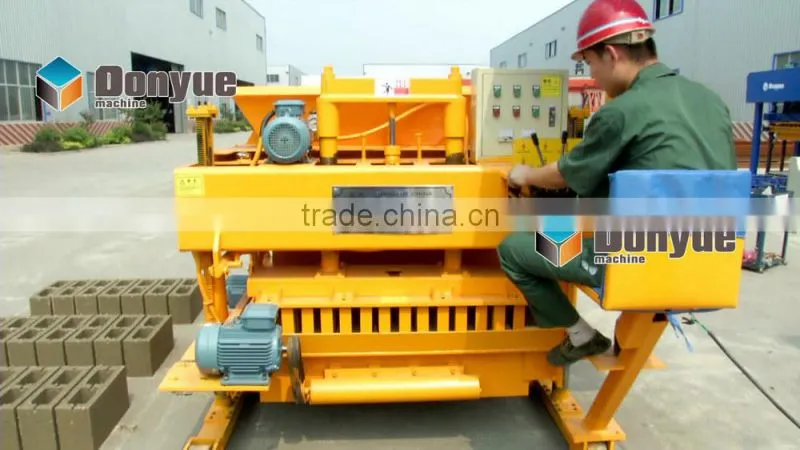

QTM6-25 automatic moving hollow block machine in philippines with big capacity

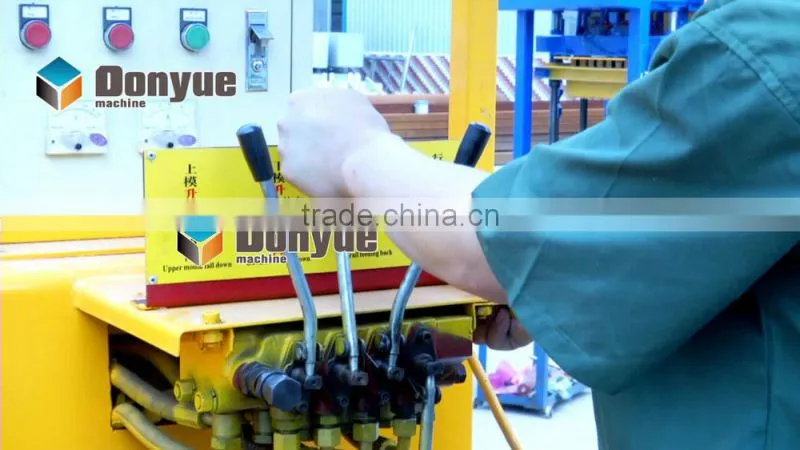

QTM6-25 automatic moving hollow block machine in philippines with big capacity

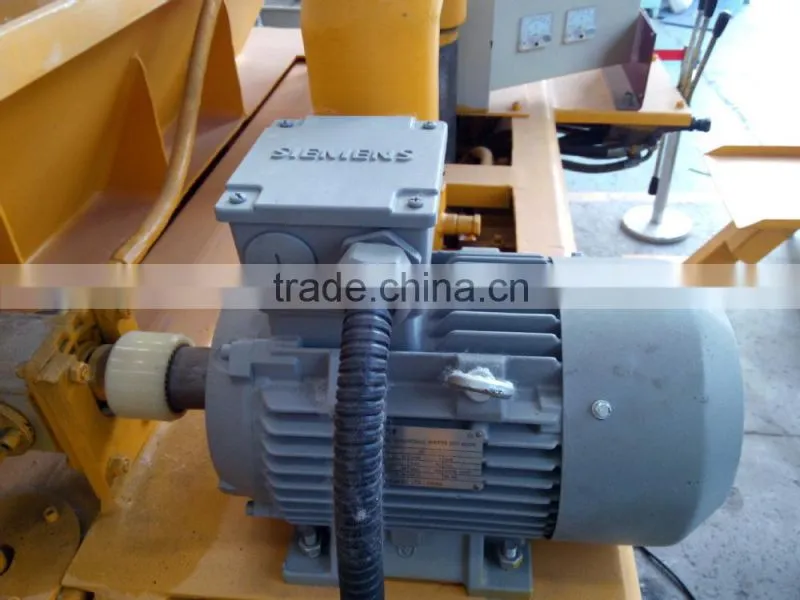

QTM6-25 automatic moving hollow block machine in philippines with big capacity
