Specifications
pallet blockISO9001/CE/SGS
Using different moulds to produce different kinds of bricks
Motors from Simens and ABB

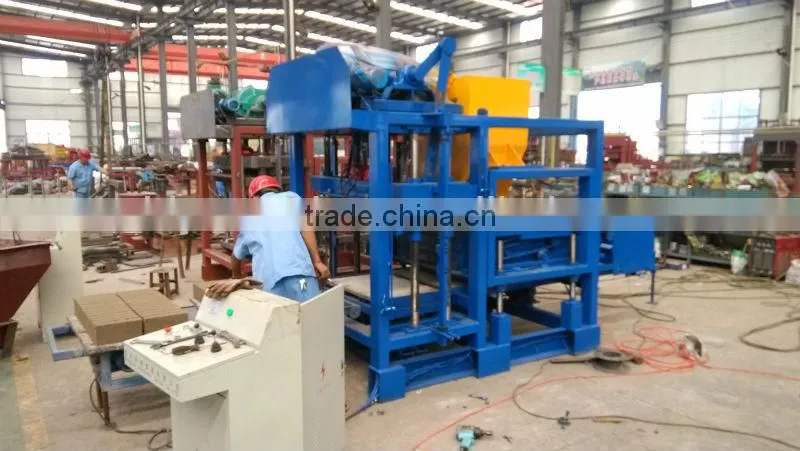

QT10-15 pallet block concrete brick machine production line
Its main technical characteristics are as follows:
1.It is suitable for large and medium-sized enterprises to invest the establishment of a semi -automatic or fully automatic block production line, achieving automatic production.
2 Semi automatic block production line with conservation rack, advanced technology, simple configuration, compact operation mode .It can realize fully automated continuous production during the whole process from the material pouring to block palletizing.
Advantage of QT10-15 block making machine

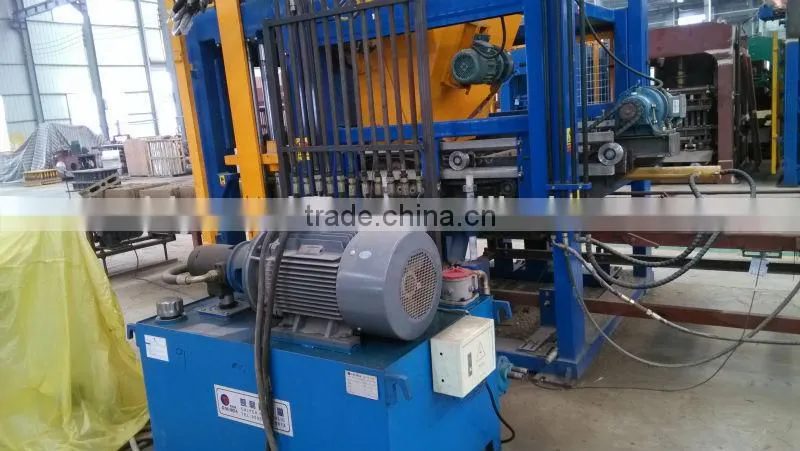

1.Advanced drive by wire technology and hydraulic conveyance system can assure you an easy operation and well performance.
2.It will make more blocks than others you may get from other sources,which suit to you who need more solid blocks.
3.The speed of making blocks will be more higher.it has an easy operation with little error.
4.High-intensity can make blocks stacked in a short time.
5.As for the quality of it ,i must say that we use the steels of high quality,which was produced by JI steel making company known to all throughout China.,the quality of our machine is guaranteed.
6.The mold use the technology of carburization heat treatment ,which can give you a guarantee that there are will no transformation with 4 million blocks about 6-8 months.
7.It can produce different kinds of blocks with change of mold.
8.The materials can easily get and the source of material are wide enough to get.
9.Our product is value for money,high technology , high quality , high efficiency will give you a high return rate, so this kind of machine will be your best choice.
<
| Main technical parameter | ||||||||
| 1 | Dimension of host machine | 3500x2300x2930 | 6 | Host machine power | 37kw | |||
| 2 | Weight of host machine | 9.8T | 7 | Vibration force | 100KN | |||
| 3 | Molding area | 1196x880 | 8 | Mixer model | JS750 | |||
| 4 | Water consumption | 10-15Ton/day | 9 | Pallet size | 1300x900x28/ 30mm |
|||
| 5 | workshop area | 300m2 | 10 | Voltage | 380/415/440 | |||
<
| Theoretical production capacity | |||||||
| No | Size(LxWxH) | cs/Mould | Pcs/Hour | Pcs/Shift | |||
| 1 | 400x200x200mm | 10 | 1800-2100 | 14400-16800 | |||
| 2 | 400x100x200mm | 20 | 3600-4200 | 28800-33600 | |||
| 3 | 400x150x200mm | 14 | 2520-2940 | 20160-23520 | |||
| 4 | 400x250x200mm | 8 | 1440-1680 | 11520-13440 | |||
| 5 | 230x110x70mm | 42 | 7500-8800 | 60000-70400 | |||
| 6 | 200x100x60 | 35 | 6300 | 50400 | |||
| 7 | 200x163x60 | 20 | 3600 | 28800 | |||
Guarantee of QT10-15 block making machine
We will supply one year guarantee ,when the client have the question ,they could call our service department number any time , we will supply per day 24 hours service .
Land requirement about QT10-15 block making machine
(1) workshop area - usually 25X10=250 m2
(2) material storage area- 2000m2
(3) office area :600m2
(4) finished products area: 3000-4000m2
