high demand products india construction machine brick machines for sale high margin products
- 400 Set / Sets per Month
- Qingdao
- T/T Credit Card
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Cement |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 60000-70400 Pcs/Shift | Place of Origin: | Shandong, China | Brand Name: | Dongyue |
Model Number: | QT10-15 | Voltage: | 380/415/440 | Power: | 64.3kw |
Dimension(L*W*H): | 3500x2300x2930 | Certification: | ISO9001/CE/SGS | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Automatic hydraulic concrete block making machine line
Introduction :
1).This machine line produce all kinds of hollow, solid, paving, interlock bricks/blocks and curbstones.
2).Machine use PLC automatic control system and hydraulic pressure system. 4 working sections are batching raw material, mixing, block/brick forming, and stacking.
3).Machine quality is guaranteed. Like high quality national standard steel, siemens or ABB motors, Schneider or CHNT electric units, and Mistubishi PLC control system. Line cutting technology ensure accurate size. Carburizing technology increase mould service life. CE, SGS, ISO9001 certificated.
Required area:
Working area: 150-200 square meters. 6-8 workers.
Total area : 2000 square meters (theoretically).
Main technical parameters
Dimension of host machine | 3800×1800×2550mm | Host machine power | 19.2 KW |
Mould area | 400×800mm | Vibration force | 40KN |
Moulding period | 15S | Mixer model | JS500 |
The size of the pallet | 1010×550×25mm | General water Consumption | 4 T/day |
Weight of the host machine | 4.6T | ||
Voltage | Adapt to your local voltage |
Material proportion
1. 8-10% cement, 30-40 % sand , 50-60% crushed stones.
2. 8-10% cement, 30% flyash, 60% sand or stone powder.
Production capacity
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
400X100X200 | 8 | 1200-1920 | 9600-15360 |
400X150X200 | 6 | 900-1440 | 7200-11520 |
400X200X200 | 4 | 600-960 | 4800-7680 |
400X250X200 | 3 | 450-720 | 3600-5760 |
230X110X70 | 24 | 3000 | 26400 |
190X90X90 | 24 | 3000 | 26400 |
200X100X60 paving | 16 | 1920 | 15360 |
200X163X60 paving | 8 | 1200 | 9600 |
All kinds of hollow, solid, paving, interlock blocks/bricks and curbstones. |

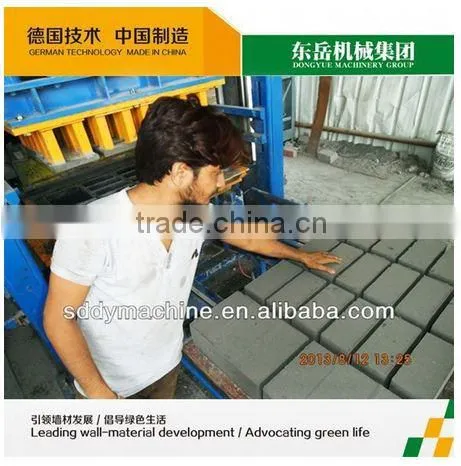

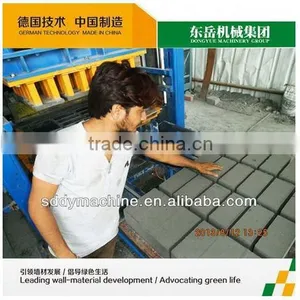

Block samples
Company Introduction
Dongyue Machinery Group is founded in 1994. Registered capital is more than 65 million USD. Main products include AAC block machines, automatic,semi automatic, manual and moving block machines. 3 overseas offices have been set.Export to more than 140 countries with high quality and competitive price.
Hope to cooperate with you.
Youtube video link
3D video of automatic block machine /watch?v=XofhE7vjGoU
Customer factory working video http://youtu.be/QKjcKz5QylY
Dongyue company introduce /watch?v=a6kgsBFZMvM
Client visit showing
