QTS1-20 Dongyue Hydraulic Diesel Engine Cement Clay Brick Making Machine With Great Quality

QTS1-20 Dongyue Hydraulic Diesel Engine Cement Clay Brick Making Machine With Great Quality photo-1
QTS1-20 Dongyue Hydraulic Diesel Engine Cement Clay Brick Making Machine With Great Quality photo-2
US$ 4,400 - 6,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Interlock Block Making Machine
Brick Raw Material:
Clay
Payment & Shipping
Payment Methods:
Port of Shipment:
Qindgao Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Interlock Block Making Machine
Brick Raw Material Clay
Processing Brick Molding Machine
Method Hydraulic Pressure
Automatic No
Capacity 1600-2400 PCS PER DAY
Place of Origin Shandong, China
Brand Name DONGYUE BRAND
Model Number QTS1-20
Voltage Local Voltage
Power 15HP diesel engine
Dimension(L*W*H) 1660*1100*1550mm
Certification CE/SGS/ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas



 QTS1-20 dongyue hydraulic interlock cement clay brick making machine with diesel engine

QTS1-20 dongyue hydraulic diesel engine cement clay brick making machine with great quality



Product Description

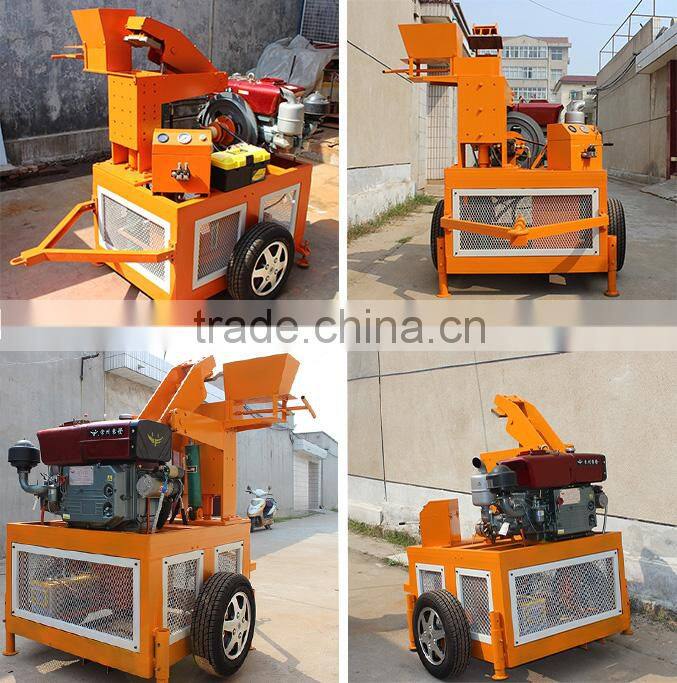

 QTS1-20 diesel engine cement  clay brick making machine main technical parameters

Overall size

1600(L)×1100(W)×1500(H)mm

Shaping cycle

20 seconds

Power

5.5 KW

12 Hp diesel engine

Pressure

16Mpa

Total weight

1000 KGS



QTS1-20 dongyue hydraulic diesel engine cement clay brick making machine with great quality

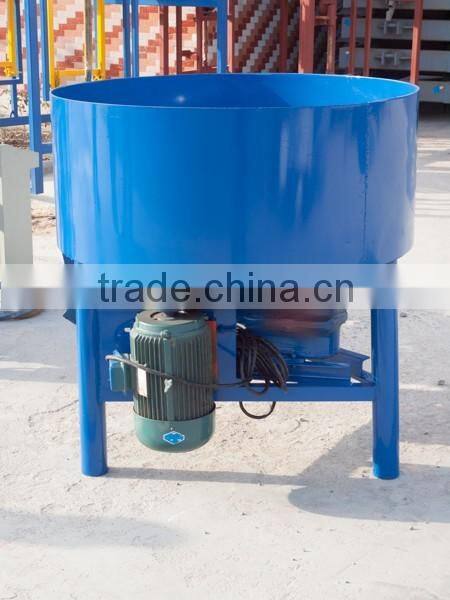

JQ350 mixer main technical parameters

Overall size

1200(L)×1200(W)×1300(H)mm

Shaping cycle

5 mins

Volume

350L (25Kgs Cement)

Electricity

380V/220V/ (adjustable)

Total weight

330KGS



QTS1-20 dongyue hydraulic diesel engine cement clay brick making machine with great quality

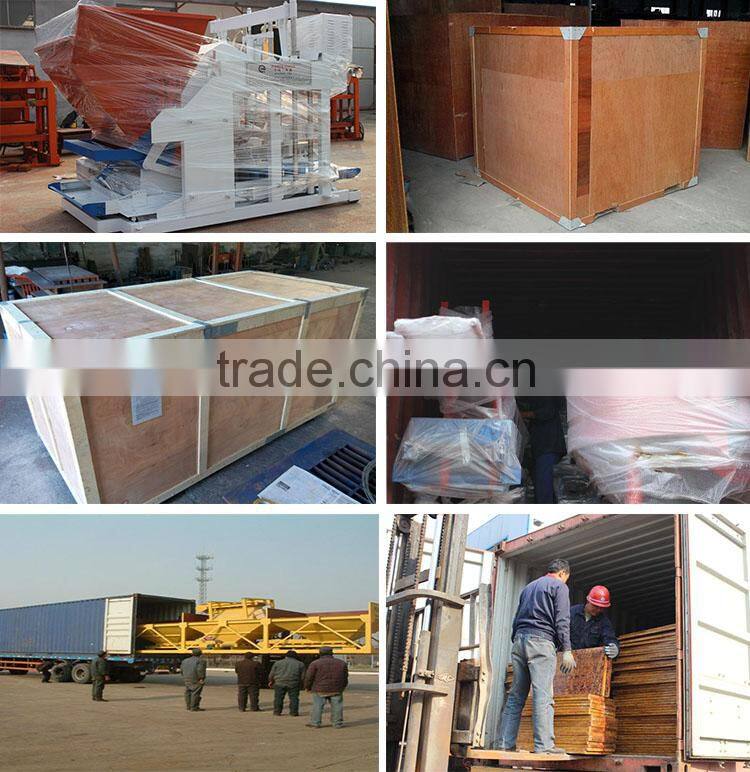

Packaging & Shipping



QTS1-20 dongyue hydraulic diesel engine cement clay brick making machine with great quality



FAQ



1. How about the quality of machines?
Our block machines adopt advanced technology. Moreover, we carry out strict supervision during production and make sure every finished product with high quality.And we have passed CE/SGS/ISO9001 certification.
2. about the delivery time.
Generally, it will be about 20-30 days after your deposit, which also will be on basis of your order.
3. as for the warranty.
We provide 1 year for warranty and overseas service.



QTS1-20 dongyue hydraulic diesel engine cement clay brick making machine with great qualityQTS1-20 dongyue hydraulic diesel engine cement clay brick making machine with great quality
