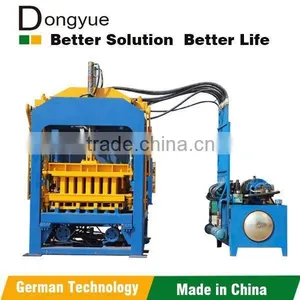

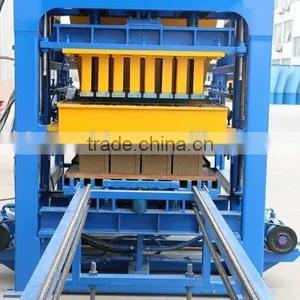

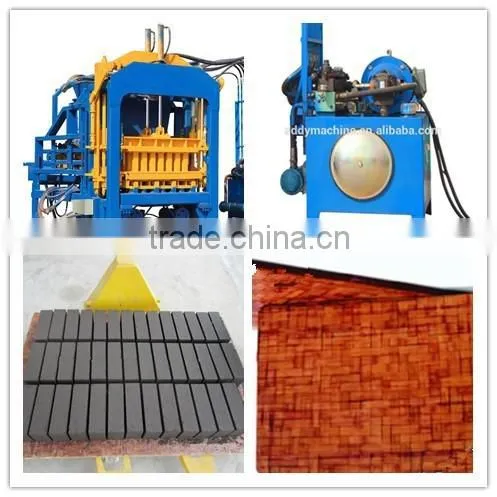

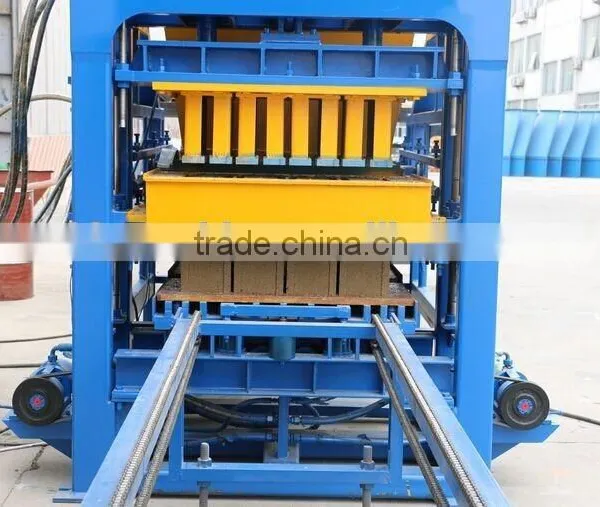

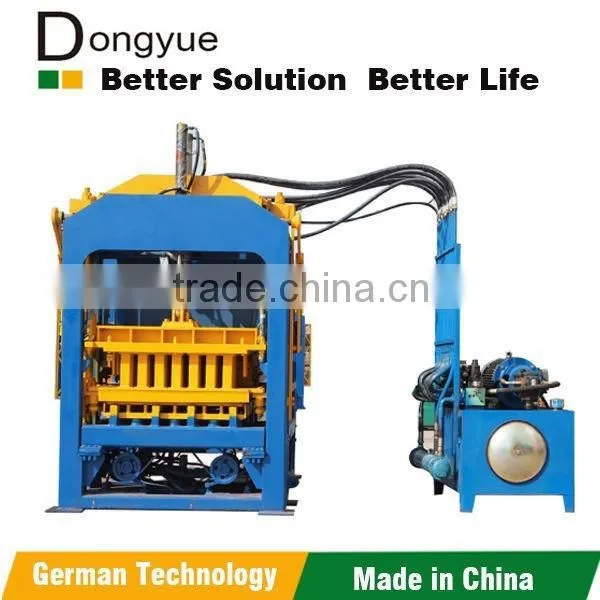

QT4-15C Quality Assurance Hydraulic Concrete Paver Interlocking Brick Machine
- 100 Set / Sets per Month
- Qingdao port
- T/T
You May Like
-
DONGYUE Large automatic Cement Hollow Brick Machine Price QT6-15B
-
manual compressed earth block machine
-
hand press soil brick making machine clay interlocking pavers production price for sale
-
QTS1-20 dongyue diesel engine hydraulic interlock clay brick making machine with nice price
-
QTS1-20 dongyue hydraulic mobile clay brick making machine with diesel engine for sale
-
QTS1-20 dongyue hydraulic diesel engine cement clay brick making machine with great quality
Product Details
| Condition | New | Type | Curbstone Block Machine | |
| Brick Raw Material | Other, cement/stone chips/sand/water | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 4800-7680Pcs/ 8 Hr 400X200X200 | Place of Origin | Shandong, China | |
| Brand Name | Dongyue | Model Number | QT4-15C Automatic block making machine | |
| Voltage | 200v/380v/440v adjustable | Power | 21.8kw | |
| Dimension(L*W*H) | 4000x1850x2800mm | Certification | ISO/E/SGS/POVC/SNOCAP | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
QT4-15C Quality Assurance Hydraulic Concrete Paver Interlocking Brick Machine
Our Block Machine Advantage:
1) Germany Siemens PLC control system and Siemens Touch Screen, use Schneider and Omron relays and contactors
2) Frequency Conversional Control Technology, which controls the block making
3)360° Multi-Shaft Rotating and Compulsory Feeding for brick production
4) Heat treatment on moulds and main parts of the machines

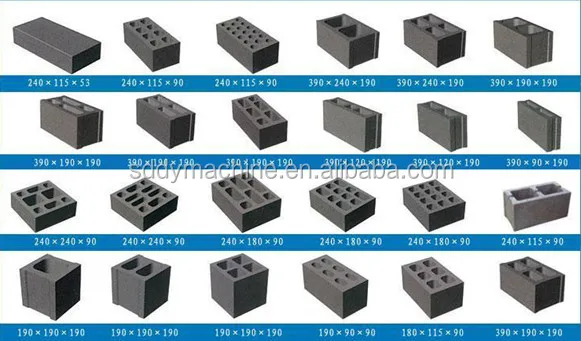

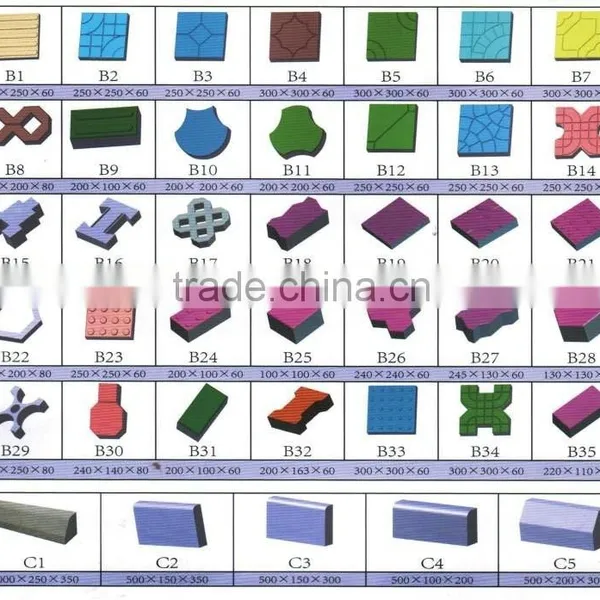

It can produce all kinds of hollow blocks , solid bricks ,color paving bricks, only by changing different moulds.
Forming machine theoretical data | |||||||
control style | PLC | forming style | hydraulic | ||||
Number of motor vibrator | 2 | hydraulic cylinders | 2 | ||||
Hopper capacity of concrete | 0.3 M3 | feeding style | 360 degree revole | ||||
Moulding area | 1010x600 mm | forming height | 40-250mm | ||||
Moulding period | 15-20 S | vibration force | 40-50 kn | ||||
| |||||||
pratical workers arrangement | |||||||
control/operation | 1 | wheel loader | 1 | ||||
Forlift/pallet added | 2 | repaire/maintain | 1 | ||||
sum | 5 |
|
| ||||
Production capacity | |||||||
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/8 Hr | ||||
400X100X200 | 8 | 1440-1680 | 11520-13440 | ||||
400X150X200 | 6 | 1080-1260 | 8640-10080 | ||||
400X200X200 | 4 | 780-840 | 5760-6720 | ||||
Video introduction of our company : /watch?v=ajPDe3rivQU
DongyueBlockMakingmachine3DVideoonYoutube : /watch?v=gl38BdywmNM
- One year warranty for the machine.
- We can send our engineers/technicians for installation of the production line . Should make sure the safety of our engineers.
- We can provide internship service and help you train the operator and mechanic.
- Free production technology and process configuration.
- We can help you to design the product line , workshop .
Why Choose DONGYUE?
- We use th e best steel Q235B , which is featured by high efficiency and high strength
- All mould use heat treatment .
- Our motor use German brand Siemens and switch is Schneider brand.
- Huge Selection. We offer a wide range of machines. You can find all kinds of machine you need. .
- Individual approach and flexible system of discounts. Every client is very important for us, so we are ready to discuss with you any comments and suggestions, as well as provide you with the most favorable purchase terms and conditions.
- Product quality. All products of our company are certified and continuous quality control.
- Environmental friendliness. Our supplies are made from environmentally friendly materials and absolutely safe for enviroment.
Any question about QT4-15C Automatic block making machine Concrete Block Production Line , contact with us please,sincere service for you .
