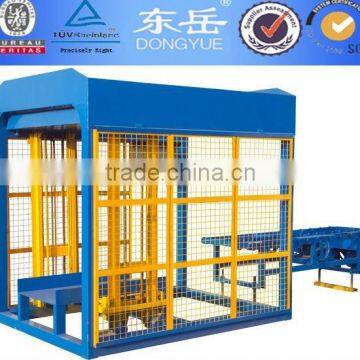

PLC intelligent control Paver Block Machine Manufacturer QT4-15B
- 100 Set / Sets per Month
- Qingdao port
- T/T
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Curbstone Block Machine | Brick Raw Material: | Concrete |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 1500pcs/h | Place of Origin: | Shandong, China | Brand Name: | Dongyue |
Model Number: | QT 4-15B | Voltage: | 200v/380v/440v adjustable | Power: | 21.8kw |
Dimension(L*W*H): | 4300x1850x2600mm | Certification: | CE,ISO9001,SGS,Famous Trademark of China | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PLC intelligent control Paver Block Machine Manufacturer QT4-15B
Advantage:
1. This machine is multifuctional. Various bricks such as road verge bricks,river channel bricks,slope-protecting bricks,plaza pavement bricks,dock
bricks,grass-planting bricks etc. can be produced only by exchanging its mould.
2.By low frequency material feeding,high frequency vibrating and pressing and vibrating both by table and mould, the concrete can be completely liquidized and air discharged within 2 or 3 seconds, in order to obtain high density and high strength.
3.As the advanced hydraulic ratio control technology is adopted so that the oil pressure of each branch of the circuit can be controled at will and various bricks with the same high quality can be produced using different raw materials.

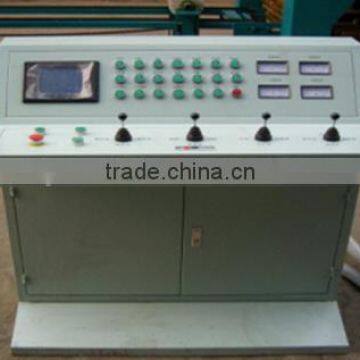

4.PLC intelligent control system which equiped with data input and output device,advanced safety logic and fault self-diagnosis system is adopted in full of the production procedure.
5. It can produce all kinds of hollow blocks , solid bricks ,color paving bricks,only by changing different moulds.
Main technical parameters
Dimension of host machine | 4300×1850×2600mm | Host machine power | 21.8KW |
Moulding area | 1016×600mm | Vibration force | 40KN |
The size of the pallet | 1010×550×20/25mm | Mixer model | JS500 |
Weight of the host machine | 7.6T | General water Consumption | 5T/every day |
Production capacity
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
400X200X200
| 4 | 600-960 | 4800-7680 |
400X100X200
| 14 | 1200-1920 | 9600-15360 |
200X100X60
| 28 | 4200-4500 | 15360 |
200X165X60
| 8 | 1200-1500 | 9600 |
Raw material
After sales service
• One year warranty for the machine.
• We can send our engineers/technicians for installation of the production line . Should make sure the safety of our engineers.
• We can provide internship service and help you train the operator and mechanic.
• Free production technology and process configuration.
• We can help you to design the product line , workshop and provide turn-key project.
India block plant working video : /watch?v=OJ-CTq8GHNQ
Dongyue Block Makingmachine 3D Video onYoutube : /watch?v=gl38BdywmNM
Dongyue Machinery Group Co., Ltd. is located Linyi City.Since our establishment, we have regarded quality as the most important and eternal
principle in production. Our products have passed ISO9001:2000 certification and the inspection by National Construction Machinery Products Quality Inspection Center.
The new series of automatic brick forming machine features high efficiency, advanced Technology , stable capability and wide applicability. Last year we are the top selling among thousands of China manufactures. and we are the only company which has been admitted as China well*know brandmark by China Government.
Apart from the above, we already have office in India, Vietnam,Indonesia.Our brick making machine enjoys many advantages including: more reasonable structure,
more compact appearance, smoother operating, higher efficiency and easiness to operate and maintain. We would like to exchange the optimum profit for you with the lowest cost and the best after-sale service .
Any question about automatic concrete block machine QT4-15B DONGYUE,contact with us please,sincere service for you .
