Home > Products > Automatic block machine > QT4-15C paver block machine and brick machine

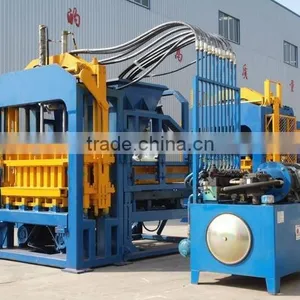

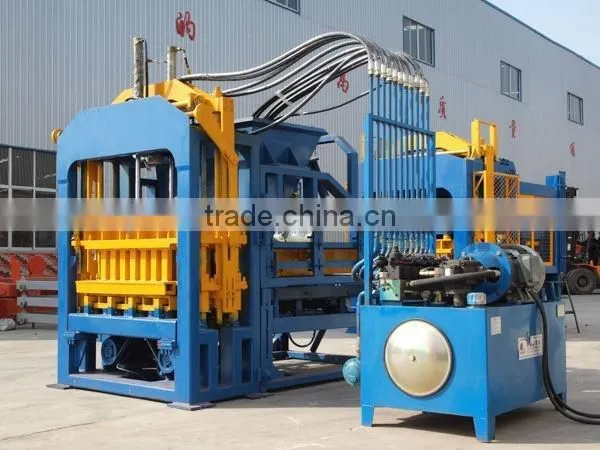

QT4-15C paver block machine and brick machine
- 100 Set / Sets per Month
- Qingdao port
- T/T
-
China pe200x300 smallest jaw crusher
-
Popular compound pendulum jaw crusher price
-
2016 china products stone coated steel roofing tile ,shingle steel roof tile
-
2016 china products lightweight roof tile,blue glazed roof tile
-
colored metal roofing prices,sand coated metal roofing tiles
-
roofing tiles coated with stones,roofing tiles for houses
Product Details
| Condition: | New | Type: | Curbstone Block Machine | Brick Raw Material: | Other, cement/stone chips/sand/water |
| Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
| Capacity: | 4800-7680Pcs/ 8 Hr 400X200X200 | Place of Origin: | Shandong, China | Brand Name: | Dongyue |
| Model Number: | QT4-15C Automatic block making machine | Voltage: | 200v/380v/440v adjustable | Power: | 21.8kw |
| Dimension(L*W*H): | 4000x1850x2800mm | Certification: | ISO/E/SGS/POVC/SNOCAP | Warranty: | 12 months |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
QT4-15C QT4-15C paver block machine and brick machine
Our Block Machine Advantage:

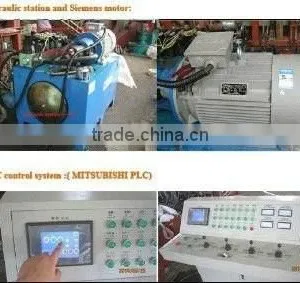

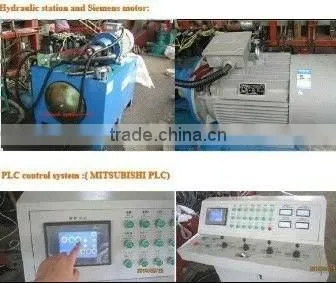

1) Germany Siemens PLC control system and Siemens Touch Screen, use Schneider and Omron relays and contactors
2) Frequency Conversional Control Technology, which controls the block making
3)360° Multi-Shaft Rotating and Compulsory Feeding for brick production
4) Heat treatment on moulds and main parts of the machines
It can produce all kinds of hollow blocks , solid bricks ,color paving bricks,only by changing different moulds.
Forming machine theoretical data | |||||||
control style | PLC | forming style | hydraulic | ||||
Number of motor vibrator | 2 | hydraulic cylinders | 2 | ||||
Hopper capacity of concrete | 0.3 M3 | feeding style | 360 degree revole | ||||

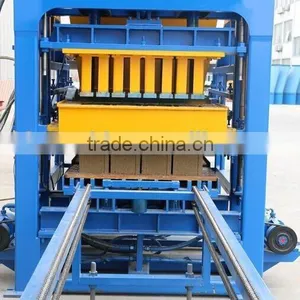

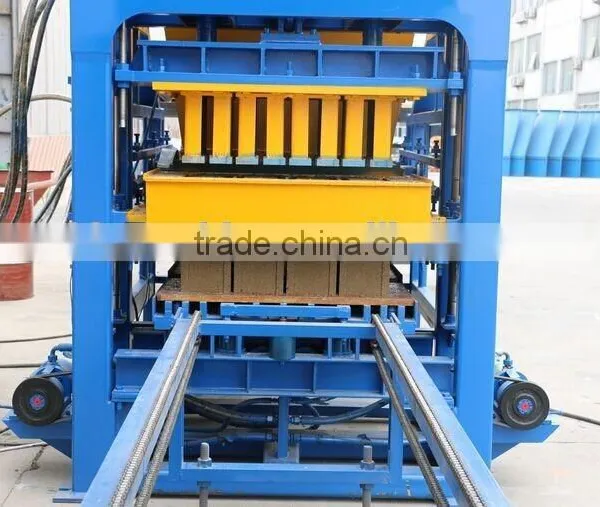

Moulding area | 1010x600 mm | forming height | 40-250mm | ||||
Moulding period | 15-20 S | vibration force | 40-50 kn | ||||
| |||||||
pratical workers arrangement | |||||||
control/operation | 1 | wheel loader | 1 | ||||
Forlift/pallet added | 2 | repaire/maintain | 1 | ||||
sum | 5 |
|
| ||||
Production capacity | |||||||
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/8 Hr | ||||
400X100X200 | 8 | 1440-1680 | 11520-13440 | ||||
400X150X200 | 6 | 1080-1260 | 8640-10080 | ||||
400X200X200 | 4 | 780-840 | 5760-6720 | ||||
Video introduction of our company : /watch?v=ajPDe3rivQU
DongyueBlockMakingmachine3DVideoonYoutube : /watch?v=gl38BdywmNM
- One year warranty for the machine.
- We can send our engineers/technicians for installation of the production line . Should make sure the safety of our engineers.
- We can provide internship service and help you train the operator and mechanic.
- Free production technology and process configuration.
- We can help you to design the product line , workshop .
Why Choose DONGYUE?
- We use the best steel Q235B, which is featured by high efficiency and high strength
- All mould use heat treatment .
- Our motor use German brand Siemens and switch is Schneider brand.

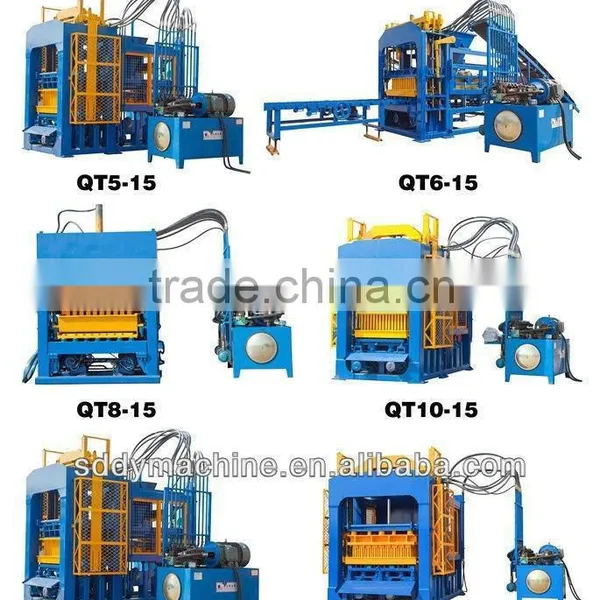

- Huge Selection. We offer a wide range of machines.You can find all kinds of machine you need..
- Individual approach and flexible system of discounts. Every client is very important for us, so we are ready to discuss with you any comments and suggestions, as well as provide you with the most favorable purchase terms and conditions.
- Product quality. All products of our company are certified and continuous quality control.
- Environmental friendliness. Our supplies are made from environmentally friendly materials and absolutely safe for enviroment.
Any question about QT4-15C Automatic block making machine Concrete Block Production Line ,
contact with us please,sincere service for you .
