Home > Products > Automatic block machine > Highly productivity automatic Paving Building Block Machine QT10-15
Highly productivity automatic Paving Building Block Machine QT10-15
- 100 Set / Sets per Month
- Qingdao port
- T/T
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 14400-16800pcs/8hrs 400x200x200mm | Place of Origin: | Shandong, China | Brand Name: | DONYUE |
Model Number: | QT10-15 Block Machine | Voltage: | 380/415/440 | Power: | 37kw |
Dimension(L*W*H): | 3500x2300x2930MM | Certification: | CE,ISO9001,SGS,Famous Trademark of China | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Highly productivity automatic Paving Building Block Machine QT10-15
1. Mainframe
The automatic block making machine applies the high-strength structural steel and special welding technique for its mainframe.
The firmness of the mainframe allows the whole machine to come with good rigidity and vibration resistance.
2. Guide Pillar
The guide pillar of this machine applies the ultrastrong special steel. By virtue of the chromate plated treatment, it perfectly resists torsion and abrasion.

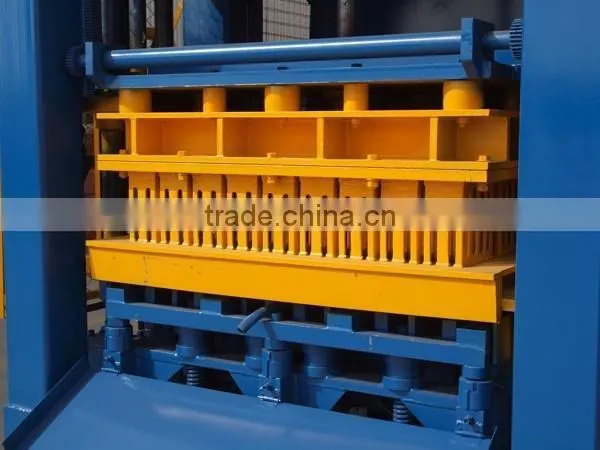

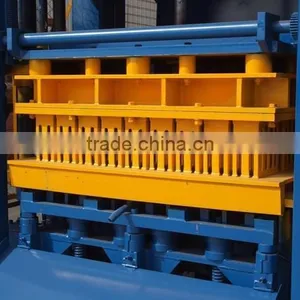

Additionally, the four guide pillars together with the ultra-long guide bearing make the pressure head and mould move accurately.
This moving system adopts the special device that is good for lubrication, thus avoiding abrasion.
3. Material System
The crane of the material machine is controlled by the hydraulic system. That its hopper is connected to the crane by the rubber spring,
can offer favourable damping effect while preventing the vibration compaction of the remained materials. In the system,
the hopper is equipped with a door which can help realize the uniform material distribution.
4. Material Distributing System
In this system, the material storage and distribution are independent from each other. The material receiving in the material box is accurately controlled.
Under the function of the powerful centrifugal force, the material is speedily and evenly distributed.
Introduction :
1).This machine line produce all kinds of hollow, solid, paving, interlock bricks/blocks and curbstones.
2).Machine use PLC automatic control system and hydraulic pressure system. 4 working sections are batching raw material, mixing, block/brick forming, and stacking.
3).Machine quality is guaranteed. Like high quality national standard steel, siemens or ABB motors, Schneider or CHNT electric units, and Mistubishi PLC control system. Line cutting technology ensure accurate size. Carburizing technology increase mould service life. CE, SGS, ISO9001 certificated.
Main technical parameter
Automatic concrete Block making Machine line area needed | |||
Workshop | 200m2 | ||
Office | 100m2 | ||
Total area | About 2000m2 | ||
Worker arrangement | |||
operate | 1 | Material loader | 1 |
Drive forklift | 1 | Feeding pallets | 1 |
Maintain | 1 | Total | 5 |
Raw material
Dongyue Block Making machine 3D Video on Youtube : /watch?v=gl38BdywmNM
Dongyue Auto Block Machine Working Video on Yutube : /watch?v=OJ-CTq8GHNQ
Dongyue Machinery Group Introduction Video on Yutube : /watch?v=ajPDe3rivQU
• One year warranty for the machine.
• We can send our engineers/technicians for installation of the production line . Should make sure the safety of our engineers.
• We can provide internship service and help you train the operator and mechanic.
• Free production technology and process configuration.
• We can help you to design the product line , workshop and provide turn-key project.
Any question about QT10-15 Full Automatic Block Machine Line Dongyue ,contact with us please,sincere service for you .
Contact Us
- Dongyue Machinery Group Co., Ltd.
- Contact namejinghui sun
- Phone86-539-8036228
- Addresszhuanbu industry Area, linyi city, Shandong province, China Linyi,Shandong
