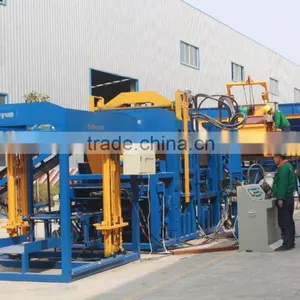

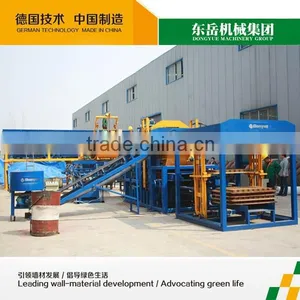

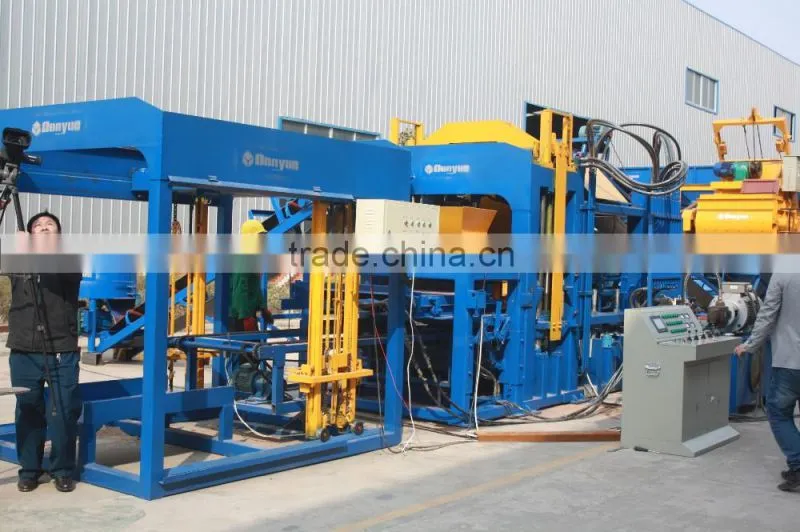

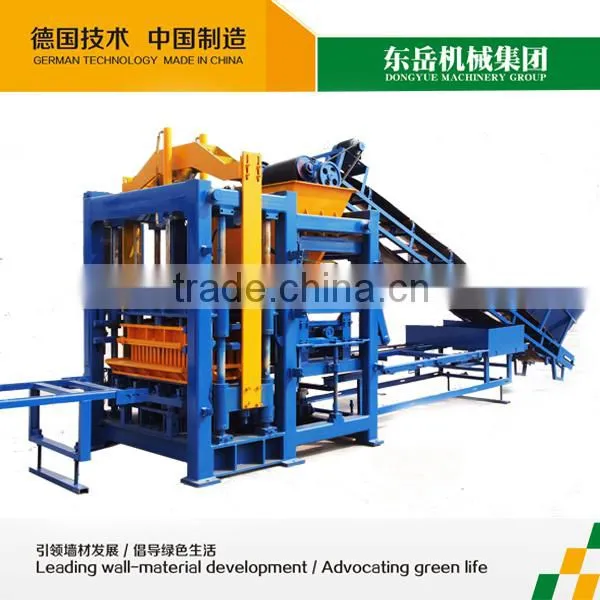

QT6-15B fully automatic high pressure block making machine for sale

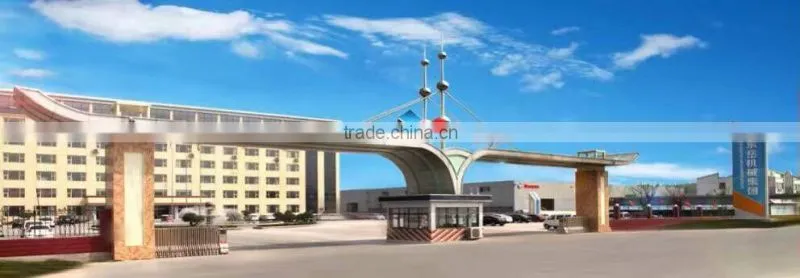

1.Dongyue Machinery Group Co.,Ltd Simple Introduce
Our company was incorporated in 1994 under the former name of DONGYUE Building Material Machinery.We now have a registered capital of 53.5 million RMB and total assets amounting to 380 million RMB. Our current staff roster exceeds 1500 employees. Each year we assemble more than 5000 sets of block-making machines and over 500 autoclaved aerated concrete / autoclaved lightweight concrete panel production lines. The annual production capacity of our AAC block production line ranges between 100 to 400 thousand cubic meters. Similarly, our autoclaved aerated panel equipment
can yield up to 300 thousand cubic meters each year.Now we set up office in India, Indonesia,Vietnam, can supply the best after-sale service for customers

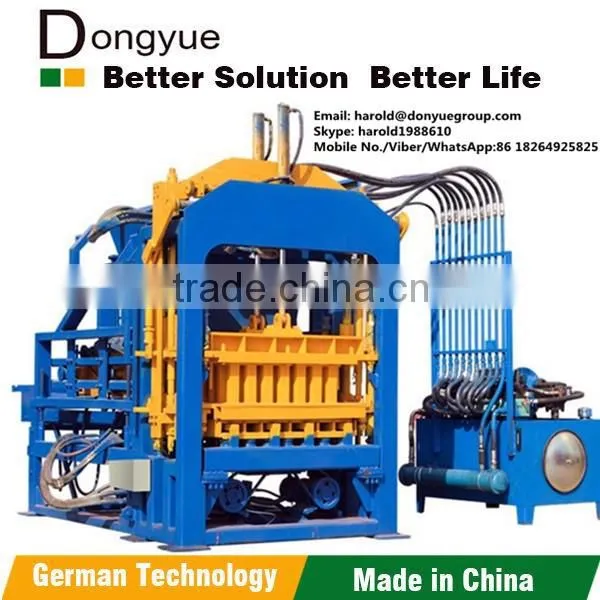

1.QT6-15B fully automatic block making machines advantage
(1) This model hollow mahcine completely use PLC systems, human-computer interface and Chinese
/English menu. It integrated with the advanced international mechanic, hydraulic and automatic technologies.
Its easy for workers to communicate with the machine through color screen touch control system. The
parameter is adjustable any time in accordance with the change of products and materials. it can analyze
signal random, diagnosis fault and set parameter, this ensure the best work of the machine;
(2) About the electricity motor ,in Mixer and host machine ,we will use Germany siemens motor ,because this two part nearly working all time in working day ,so we could use high level hard wearing
motor for this ,and ther motor we will also use CE standard motor ,
(3)About the switches ,we will select the France Schneider brand , it is could assure the working process smoothly .
(4) The Control System Using computer control and man-machine interface. Electrical equipments apply the well-known brands from Japan and Germany, like Japan Mitsubishi .

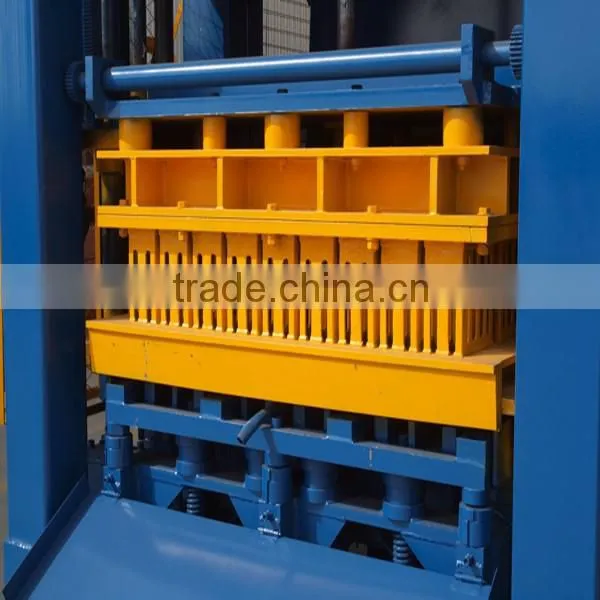

(5).The brick mould of brick making machine, in order to prolong the life of brick mould, we use the newest high temperature carburizing heat treatment technology, the quality is good.
(6).Hydraulic system :Hydraulic components made in Taiwan, we use high-dynamic proportional and directional valves, which automatically adjust the oil flux and pressure as per specific workingrequirements,
this design greatly prevent the cylinder from damage.
2.QT6-15B fully automatic concrete block making machine main technical parameters
Dimension of host machine |
2850×2200×2850mm |
Moulding area |
800×600mm |
Moulding period |
15-20S |
The size of the pallet |
940×830×20/25mm |
Weight of the host machine |
6T |
Voltage |
380V |
Host machine power |
32KW |
Vibration force |
45KN |
Capacity |
91.55KVA |
Mixer model |
JS500 |
General water Consumption |
8T/every day |

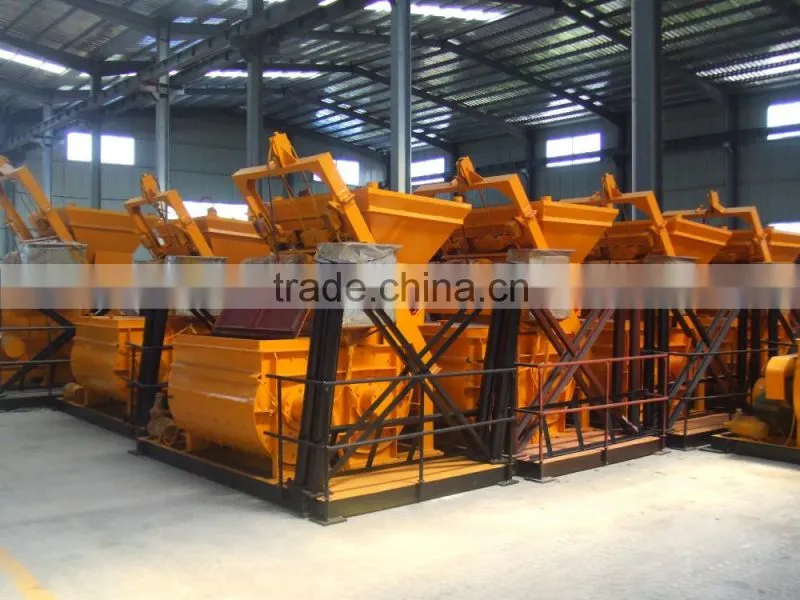

3.Mixer: JS500 Mixer main technical parameters
Main Technical Specifications |
parameters |
Feeding capacity |
800L |
Discharging volumn |
500L |
Productivity |
≥25m3/h |
|
Roating speed of stirring shaft |
2*8r/min |
Max.diameter of aggregates |
80/60mm |
Overall size |
3030×2300×2800mm |
Total mass |
4000kg |
Total capacity |
24.75KW |
Electric motor |
Siemens motors |
4.QT6-15B Production Capacity and block samples, pls take it as reference
Size(LxWxH):mm |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8 Hr |
230X110X70 |
30 |
5400-6300 |
43200-50400 |
400X100X200 |
12 |
2160-2880 |
17280-23040 |
400X150X200 |
8 |
1440-1920 |
11520-15360 |
400X200X200 |
6 |
1080-1440 |
8640-11520 |
400X250X200 |
4 |
720-960 |
5760-7680 |
Paver:200X100X60 |
24 |
3740 |
29920 |
Paver:200X163X60 |
9 |
1450 |
11600 |

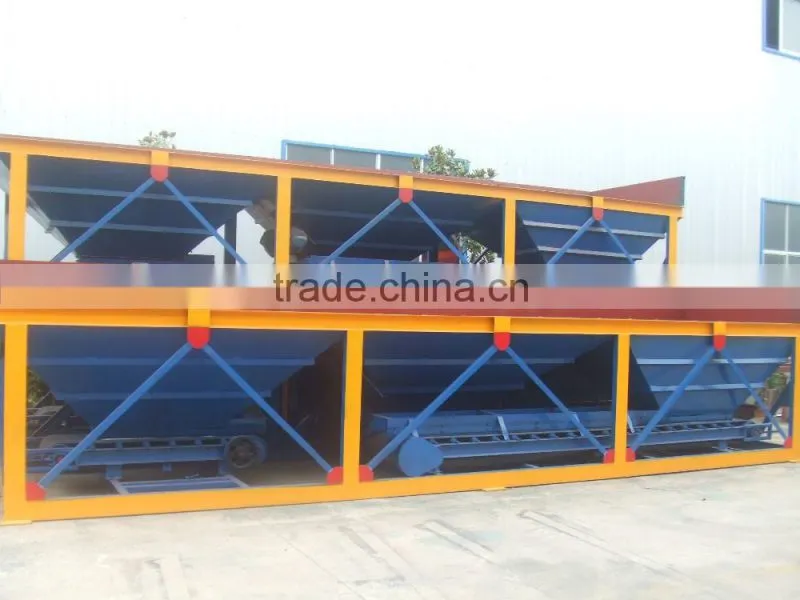

Batching Machine
Automatic Stacker

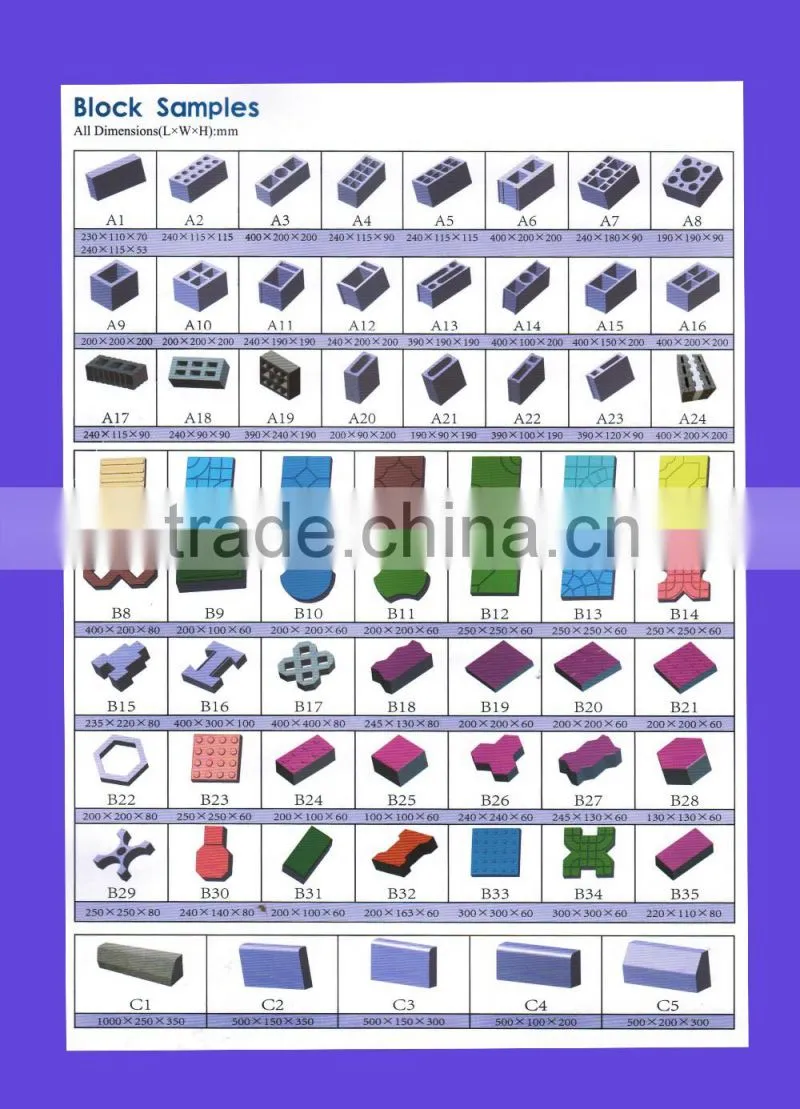

Block sample
Client visit Dongyue
We will supply one year guarantee about our hollow block machine,when the client have the question ,they could call our service department number any time , we will supply per day 24 hours service .
Within one year ,if the client meet the unsolvable questions ,we could fly to client place to help.
Sincerely hope we can cooperate with each other.
contact person: elva zhang phone number is 13625495476
whatsapp is +8613625495476 wechat is w13625495476
