Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Brick Making Machine > Hot Selling Semi Automatic Concrete Brick Machine Qtj4-26c

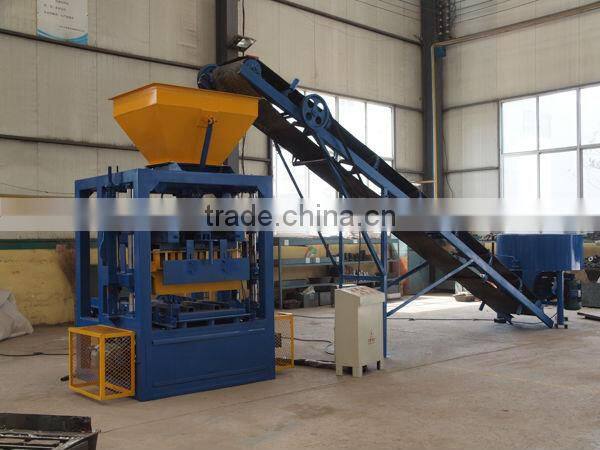

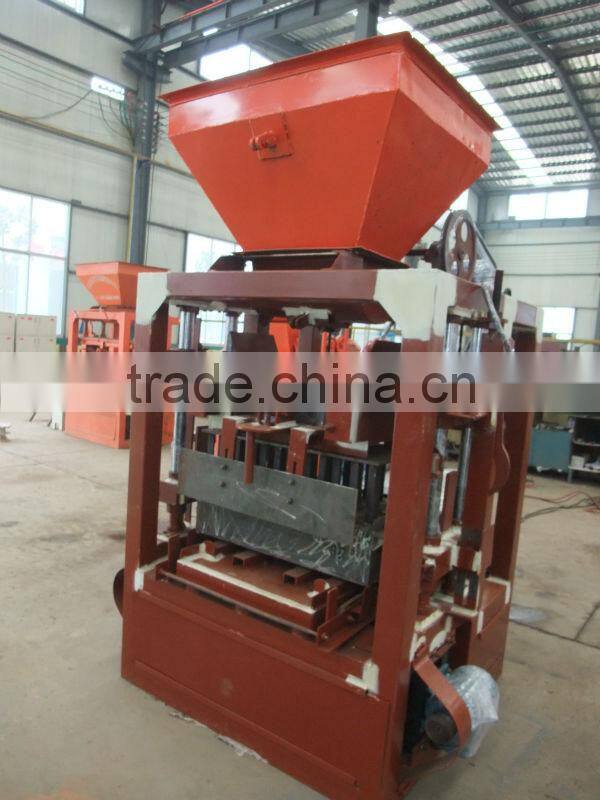

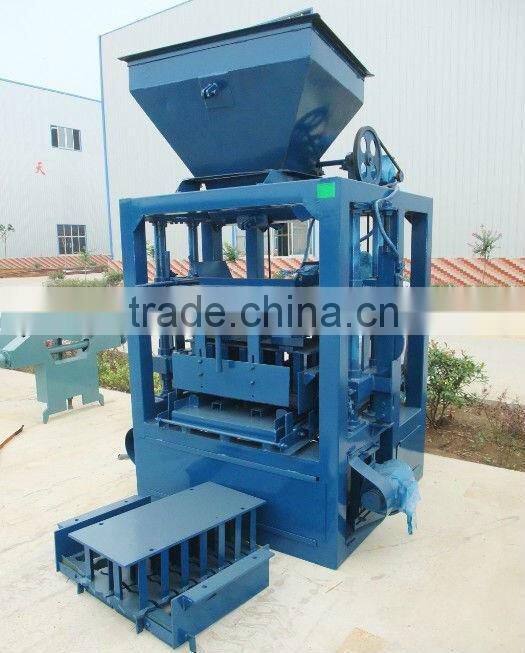

Hot Selling Semi Automatic Concrete Brick Machine Qtj4-26c
US$ 6,800 - 7,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, brick making machine
Brick Raw Material:
Other, Cement/concrete/sand/stone chips
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
300000m3/year Aac Block Autoclaved Curing EquipmentUS$ 600,000 - 2,000,000MOQ: 1 Set -
50000-300000m3 150000m3/year Aac Brick Making Machine YtongUS$ 500,000 - 900,000MOQ: 1 Set
-
DONGYUE 2015 Aac Autoclaved Curing EquipmentUS$ 600,000 - 2,000,000MOQ: 1 Set
-
50000-300000m3 Indonesia Aac PlantUS$ 500,000 - 900,000MOQ: 1 Set
-
50000-300000m3 Aac Wall Board Production LineUS$ 500,000 - 900,000MOQ: 1 Set
Condition
New
Type
Other, brick making machine
Brick Raw Material
Other, Cement/concrete/sand/stone chips
Processing
Brick Production Line
Method
Other, Electrical power
Automatic
Yes
Capacity
3000pcs/8hrs
Place of Origin
Shandong, China
Brand Name
Dongyue low cost block machine
Model Number
QT4-26 low cost block machine
Voltage
415V/380V/240/220V
Power
13.45kw
Dimension(L*W*H)
2500x2700x2800mm
Certification
ISO/SGS/CE/SNOCAP/POVC
Warranty
1year
After-sales Service Provided
Overseas service center available
QT4-26 semi automatic concrete brick machine qtj4-26c
detail introduce:
detail introduce:
(1) QT4-26 low cost block machine Main technical parameters
Dimension of host machine |
2060×1730×1800mm |
Host machine power |
13.4KW |
Moulding period |
20-30S |
Vibration force |
35.5KN |
| The size of the pallet | 850×550×40mm | Capacity |
22KVA |
| Weight of the machine | 3T |
Mixer model |
JD350 |
| Voltage | as per local condition |
||
Theoretical workshop area : 60 m2, need about 5-6workers .the office , curing area and stacking area to arrange according your fact status.
(2) QT4-26 low cost block machine Production capacity
QT4-26 Theoretical Production capacity |
||||
Size(LxWxH) |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8 Hr |
|
400X100X200 |
7 |
630-840 |
5040-6720 |
|
400X150X200 |
5 |
450-600 |
3600-4800 |
|
400X200X200 |
4 |
360-450 |
2880-3600 |
|
400X250X200 |
3 |
270-360 |
2160-2880 |
|
3)QT4-26 low cost block machine power list
No. |
Item |
Power(KW) |
|
1 |
JD350 Mixer |
7.5 |
|
2 |
Belt conveyor |
1.1 |
|
3 |
QT4-24 Host machine |
Feeding motor |
0.75 |
Pallet conveyor motor |
0.75 |
||
Upper mould vibration motor |
2.2 |
||
Down mould vibration motors(2sets) |
3*2 |
||
Push&Pull mould motor |
0.75 |
||
Elevation motor |
3 |
||
4)he main features of theQT4-26 low cost block machine AS follows:
(1)Using the manual force control and jog control together, the operation is simple and efficient;
(2)Using four poles-oriented manner and ultralong orientation bear to ensure the precise
movement of the pressure head and mould;
(3)Using the ultra strong steel and special welding techniques,it is strong and of high resistance
to vibration;

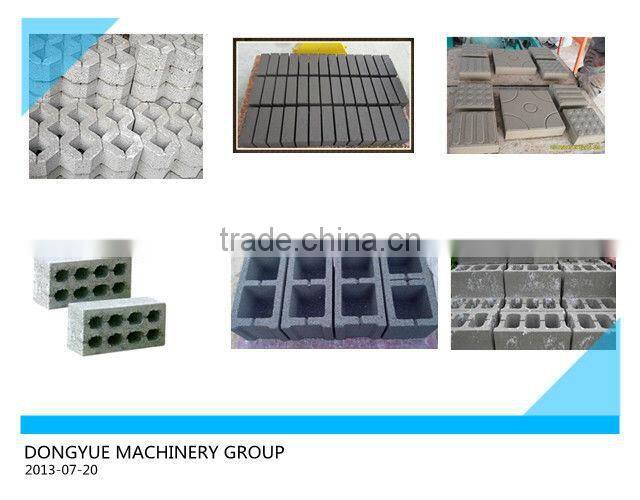

(4)It is a multi-useful machine,which could produce road blocks, curb stones, blocks, hollow bricks
and other shapes of different specifications of concrete products via changing the block mould.
(5)Using imported electrical appliances, sealing parts and parts of hydraulic components, the
equipment's comprehensive performance is stable and reliable;
(6)Using mechanical drive, it is a collection of compact structure, easy maintenance, operation
flexible and good reliability;
(7) The products which produced by semi-automatic block machine are all of high strength,
good density, good appearance,accurate size and regular shapes;
(8) The semi-automatic block forming machine can achieve high efficiency if utilizing large dosage
of fly ash and slag,could save you more investment and give you a fast turnover
QT4-24 Brick machine power list
