Special autoclave for AAC block
1. Brief introduction about AAC stream autoclave
Autoclave is a kind of large-scale steam equipment. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products.
Autoclave belongs to pressure vessel which has explosion risk and the product is part of first and second class pressure vessel. Before putting into operation, the end-user must register in the local boiler and pressure vessel safety supervision organization and acquire the operation permit, at the same time it must accept supervision and inspection.
2 The features about AAC stream autoclave:

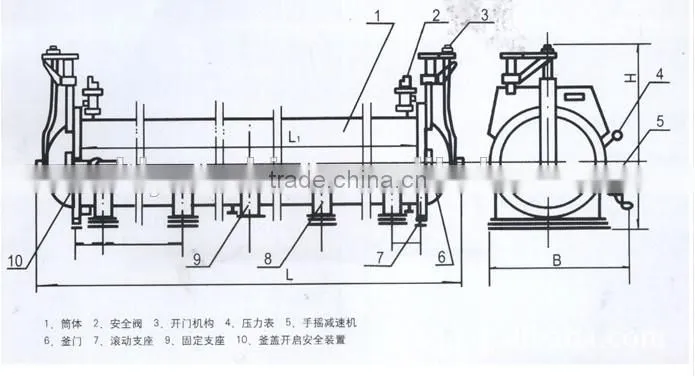

Steel horizontal cylinder-type device, kettle covers and cylinder made of Q345R steel plate;
Kettle door is movable, and mode of opening: Manual or automatic;
Technical Parameters:
|
Item |
Type | ||||||
| FGZSS1.5-1.65*L | FGZCS1.5-2*L | FGZSS1.5-2.5*L | FGZSS1.5-2.68*L | FGZSS1.5-2.85*L | FGZCS1.5-3*L | FGZCS1.5-3.2*L | |
| Inner diameter | Ø 1.6m | Ø 2m | Ø 2.5m | Ø 2.68m | Ø 2.85m | Ø 3m | Ø 3.2m |
| Designed pressure | 1.6Mpa | 1.6Mpa | 1.6Mpa | 1.6Mpa | 1.6Mpa | 1.6Mpa | 1.6Mpa |
| Designed temperature*2 |
204°C |
204°C |
204°C |
204°C |
204°C |
204°C |
204°C |
| Max operation pressure | 1.5Mpa | 1.5Mpa | 1.5Mpa | 1.5Mpa | 1.5Mpa | 1.5Mpa | 1.5Mpa |
| Max operation temperature | 201°C | 201°C | 201°C | 201°C | 201°C | 201°C | 201°C |
| Medium | Saturated steam | ||||||
| Track gauge/height |
600mm/ 150mm |
600mm/ 150mm |
800mm/ 200mm |
800mm/ 250mm |
963mm/ 280mm |
1220mm/320mm |
1220mm/ 320mm |
| Corrosion allowance | 2mm | 2mm | 2mm | 2mm | 2mm | 2mm | 2mm |
The introduction of fully automatic AAC working processes : /watch?v=2-pyrN7rbE4
The introduction of DONGYUE Machinery Group: /watch?v=TF6TeRBr9XE
Donyue Machinery Group Co.,Ltd(Subsidiary company-LinYi Donyue IMP&EXP Co.,Ltd). is a company specialized in producting Automatic brick machine , aerated concrete block production line, the aerated concrete wall panel production line, autoclaved lime sand brick production line, autoclave etc. A and second-class pressure vessel, aerated concrete blocks, sand-lime brick, panel products, plant asphalt nine series,more than 60 varieties.
Our company designs this series egg laying block making machine according to the customers’ requirement, use the optimize design,reasonable structure, strong feeding materials, strength the pressure. This is one efficiency, economy, suits for minor enterprises.
Now we set up office in India, Indonesia,Vietnam, can supply the best after-sale service for customers
We are a memer of Alibaba Trade Assurance,which can provide a safegard for buyers' payment.
Pre-sale:
Analyze the customer’s need and factory layout design, confirm scale of operation;
Select the fitting choice;
Sales:
Provide service of installation and commissioning;
Provide training for operator and maintenance person.
After-sale:
Help customers to establish production craft formula;
Consultation available all the time.
