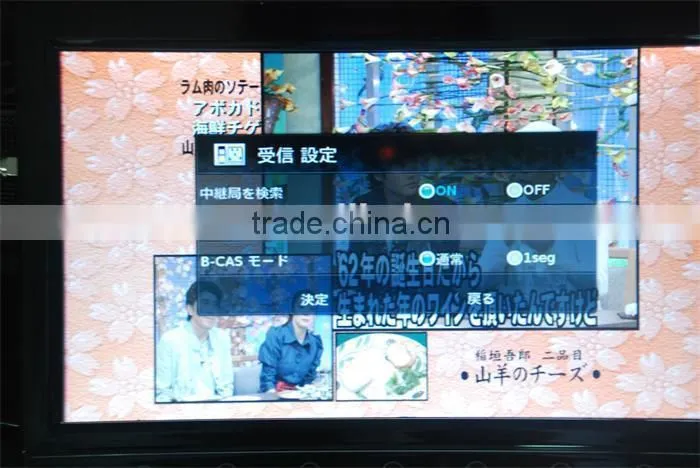

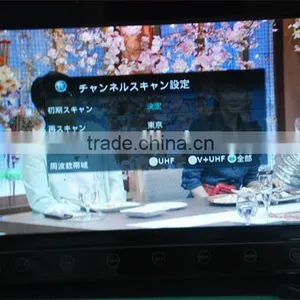

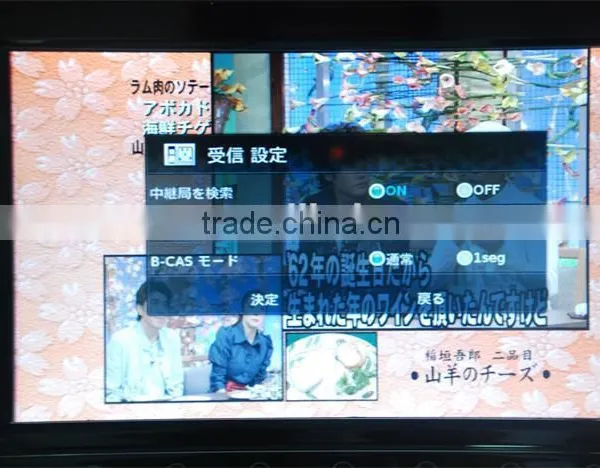

ISDB-T10 10.1 Inch Full Seg Digital TV Receiver
- 200 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- QINTAIX Android Mini Media Hub S912 with Dual Band WiFi, Gigabit LAN, used as signage player too,customized FW supported
- Android Set Top Tvbox 4k QINTAIX Q912 Media player octa core 2gb ram 16gb rom support OEM
- 4k tv box smart android QINTAIX S912 Octa Core Ultra HD 4K2K, digital signage solution player,
- QINTAIX S912 Octa Core 2gb ram 16gb rom Digital Signage solution player Support Rotation/RTC/touch panel,customized FW support
- QINTAIX 4K Wifi Smart 2.4G/5GHz Android Tv Box Digital Signage solution player Support Rotation/RTC/touch panel,customized FW support
- QINTAIX S912 Android7.1 Advertising Player Digital Octa Core 2gb ram 16gb rom Amlogic S912
Product Details
Place of Origin: | Guangdong, China | Brand Name: | VCAN | Model Number: | ISDB-T10 |
Product Description
Selling Points:

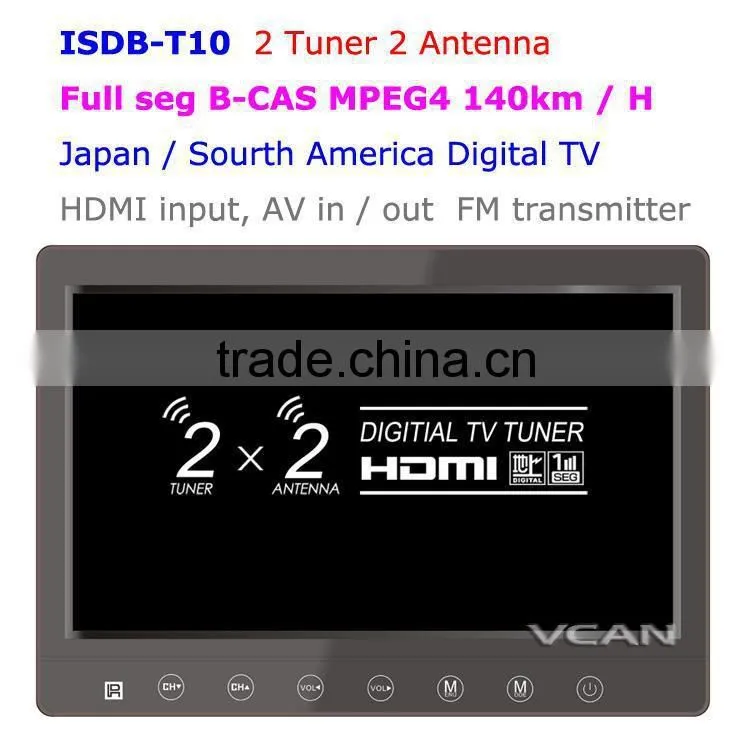

10.1 inch ISDB-T with 2 tuner 2 antenna
HDMI input

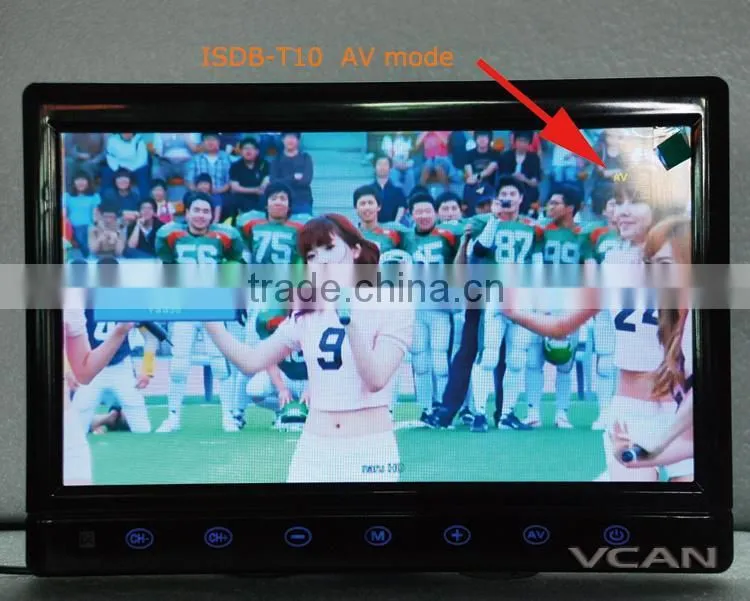

1 x AV in, 1 x AV out

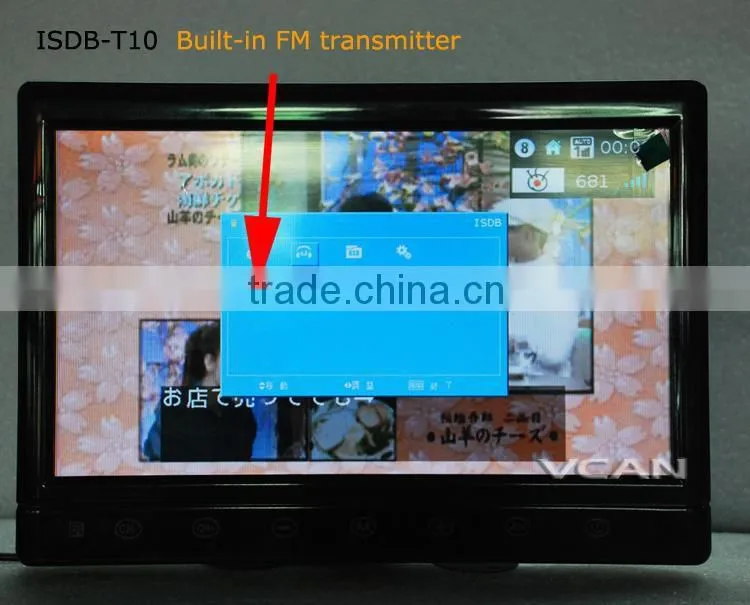

FM transmitter
ISDB-T10 10.1inch digital TV receiver with full seg
1,Products Suitable for application of countries::Japan,Brazil,southAmerica and other countries and regions.
2,Products adopt advanced diversity reception ISDB chip.
receiving sensitivity is strong(input level<-83dBm@ Full-seg64QAM C/R=3/4;input level <-95dBm@1-segQPSKC/R=2/3).
3,product also can support RGB Interface of LCD screen, Resolution the biggest support up to 1980X1080.
4,Product has powerful TV program management functions, support 7 days navigation electronic program guide (EPG).
5,Products has power off memory function, after turn on the television, the current channel is last time channel when outage.
6,has over voltage, over current, reverse, EMI interference resistance,,power purify and protective measures .
7,wide power input, support 10~30Vinput;
8,Strong stability and high receiving sensitivity, upgrade, and reliable.
ISDB system
| Input | Input Frequency:(Brazil:174~216MHz & 470~806MHz)(Japan:170MHz ~ 770MHz) |
input power:-95dBM~-0dBM | ||
input impedance:50ohm | ||
Demodulation | modulation system:QPSK,16-QAM,64-QAM | |
bandwidth:6MHz | ||
II decoding | video decoding:MPEG4,AVC/H.264
| |
Audio decoding standard:MPEG2,AAC | ||

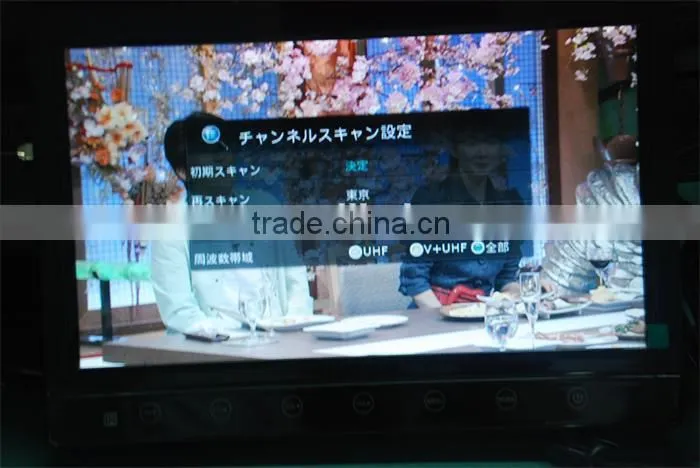

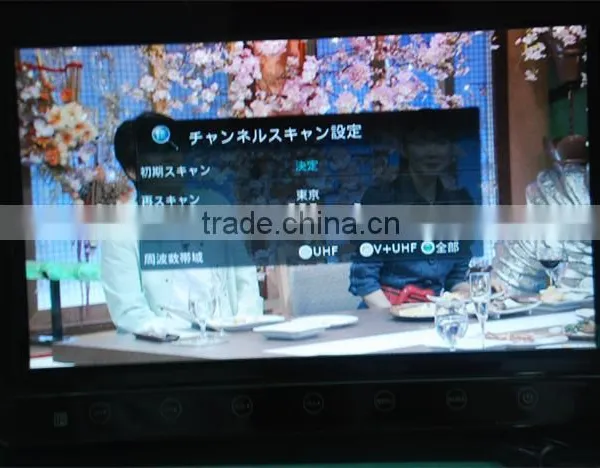

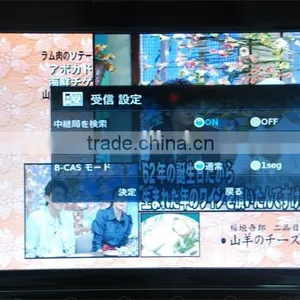

Supported language | Japan/ Portuguese/ Spanish/English | |
LCD screen display | RGB output | |
analog video output(optional)
| Video output port (CVBS) | |
output mode:Japan:NTSC;Brazil:PAL-M | ||
output impedance:75ohm | ||
Output level:1.0±20mVp-p(output format CVBS) | ||
Digital video output(optional) | HDMI 1.4 Support format: - 1920x1080p @ 60Hz - 1920x1080i @ 30Hz - 1280x720p @ 30Hz - 720x480i @ 60Hz - 720x480p @ 60Hz | |
audio output
| 1 way 2W/8Ωloudspeaker;1way arphone | |

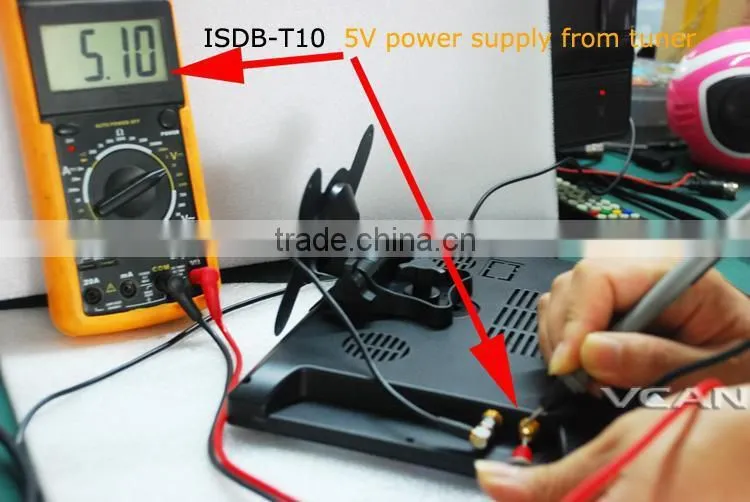

USB interface | Package Updated ,machine power supply interface(+5V DC), | |
Input power | Car battery / Car lighter | |
power consumption | About 3.5W | |
Working Temperature | -20—75℃ | |
size | Length 143MM×wide 88M×thickness 23MM | |
weight | About 250G |

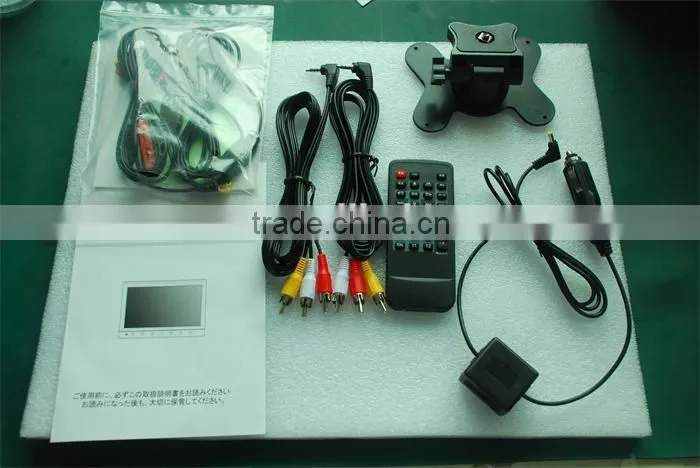

Paking details:
|
