Home > Products > TIG IGBT Welding Machine > Small 300A TIG/MMA AC/DC pulse welder welder 380V

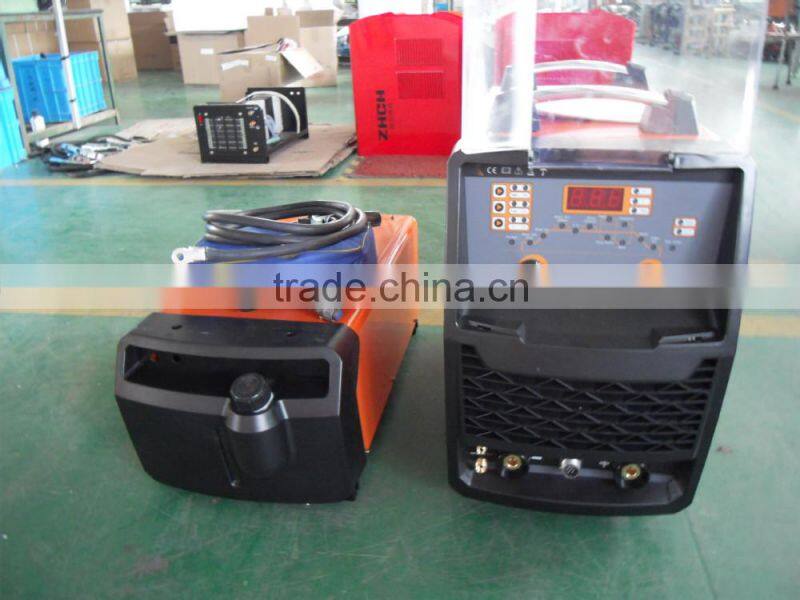

Small 300A TIG/MMA AC/DC pulse welder welder 380V
- 10000 Set / Sets per Month
- Ningbo/Shanghai China
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | ANDELI Or OEM |
Model Number: | WSME-250 | Arc Current: | 10-250A | Pulse Frequency: | 50/60HZ |
Rated Duty Cycle: | 60% | Motor Type: | Other | Dimensions: | 630*410*610MM |
Usage: | welding workpiece | Voltage: | 380V | Certification: | CE&ROHS |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
TIG/MMA AC/DC pulse welder1.DC/AC inveter TIG/MMA pulse welder
2.CE & ROHS approved
3.High duty cycle,continuous operation
Small 300A TIG/MMA AC/DC pulse welder welder 380V
Item | WSME250 | WSME315 |
Power voltage(V)(3PH) | 380 | 380 |
Rated input current (A) | 15 | 20 |
Input voltage frequency (Hz) | 50/60 | 50/60 |
Delay time(S) | 2-10 | 2-10 |
Preheat time(S) | 0-2 | 0-2 |
Attenuated time(S) | 0-5 | 0-5 |
ARC strike time | HF | HF |
No-load voltage (V) | 60 | 60 |
Out put current range (A) | 10~250 | 10~315 |
Rated output voltage(V) | 20 | 22.6 |
No-load comsumption | 40 | 40 |
Duty cycle (%) | 60 | 60 |
Efficiency (%) | 85 | 85 |
Insulation class | F | F |
Weight (Kg) | 35 | 38 |
Usable electrode (mm) | 2.5~5 | 2.5~6 |
Mchine size (mm) | 480*260*410 | 560*330*640 |
Cod.(No) | 891020 | 891021 |
Features:
*Quility suqare wave power supply ,stable arc ,HFarc stabilization not necessary
*Concentrated heat ,easy to fill in the wire ,especially suitable for wire welding in industry ,etc
*Foot pedal controller connection facilitates welder's operation
*Built -in alarming and protective circuits are provided to prevent over current , over heat ,over *voltage ,low voltage ,etc and ensure safe operation
*High duty cycle ,continuous operation without interruption at large current is available
*Suitable for welding of various metallic materials suchu as alunminum ,alunminm alloy ,carbon *steel ,stainless steel , copper , titanium .etc.
SUPPLY:
OEM sevice offered, Free spare parts, Technical help to exporters, Design Service Offered, Buyer Label Offered .
MAIN MARKET:
Europe, South America , Southeast Asia, Mid East ,North America.
ACCESSORIES:
With welding torch,earth clamp,electrode holder,mask,brush.
CERTIFICATE:
CE,ROHS,GS,ISO9001
TIG WELDING DETAILS:
In TIG welding (Tungsten inert gas), the welding arc is formed between a non-consumable tungsten electrode and the work piece. The shielding gas is an inert gas that does not affect the welding process per se. Usually the shielding gas is argon and it protects not only the molten weld but also the electrode in the torch from oxygenation.
A filler material may not be necessary in TIG welding. The pieces can be fused also by melting the groove together. If a filler is used, it is fed into the molten weld manually and not through the weld torch as in MIG/MAG welding. Therefore, the TIG welding torch has a completely different structure than a MIG/MAG torch.
Various TIG welding methods include, for example, the DC TIG welding method that uses direct current, AC TIG welding that utilises alternating current, and pulse TIG.
Packing:
Why not try one sample first?Choosing our products,give yourself maximum profit. Inquires are typically answered within 24 hours.
Our salesmen will reply your inquiry within 24 hours. Any order is welcome. If you like to be our agent in your country, we can give you any support on the technique & other aspects.
If you have any questions ,please contact with us
