2013 new digital Inverter advanced pulse inverter tig mig mma welding machine

Specifications

Inverter tig mig mma welding machine
1.P-MIG/MAG,CO2,TIG,MMA,carbon arc gouging
2.DSP control system
3.IGBT module

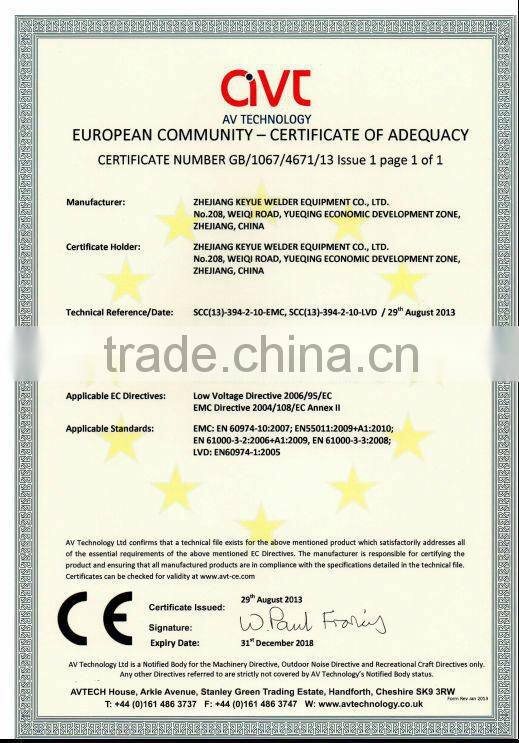

4.CE,CCC

2013 new digital Inverter advanced pulse inverter tig mig mma welding machine



1.Product Features and Technical Details



Model:  Pulse MIG 500





A--Product Features



IGBT  Module TYPE

1.MIG/MAG,P-MIG/MAG,Double P-MIG,CO2,TIG,P-TIG,MMA,carbon arc gouging

2.DSP control system,more accurate welding process and stable arc

3.DSP control wire feed,feeding wire more accurately and smoothly

4.one knob synergic operation,simple and easy for everyone to use





B--Technical Details



DSP Double Pulse MIG/MAG Welding Machine
Model	Pulse MIG-350	Pulse MIG-500
Type	IGBT Module
Rated input voltage (V)	three phase AC380 ±10% / 50Hz
Rated input capacity (KVA)	14.4	25
Rated input current (A)	25	46
Rated duty cycle (%)	60	60
Output current adjustment (A)	25-350	25-500
Output voltage adjustment (V)	14-40	14-50
Open-circuit voltage (V)	96	98
Efficiency (%)	≥89
Power factor	≥0.87
Diameter of welding wire (mm)	0.8, 1.0, 1.2, 1.6
Net weight (KG)	42.5	52.5
Dimension of machine (mm)	645×335×576	645×335×576
Flow rate of shielded gas (L/min)	15-20
Insulation of main transformer	H
Insulation of output reactor	B

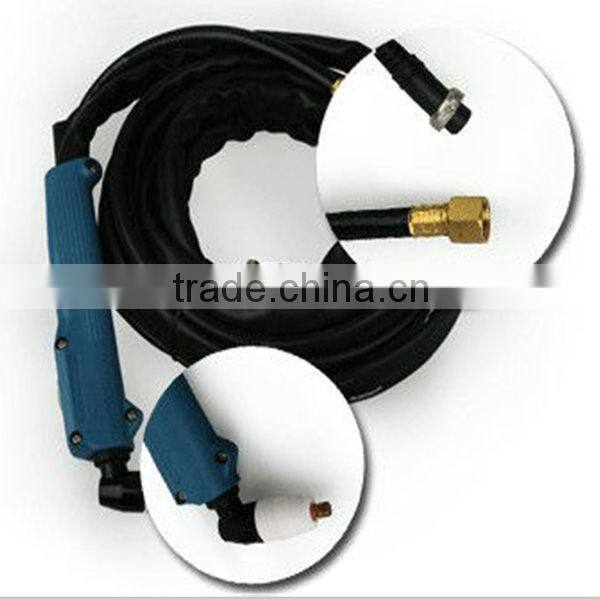

including accessories: earth clamp×1pcs, cable joint×3pcs, grounding cable×3meters, control cable×5meters, pressure regulator×1pcs, water cooled MIG torch×1pcs, water tank×1set, wire feeder×1set
(P)MIG-350/500: each parts (wire feeder & main machine & water tank) are separated
(P)MIG-350H/500H: all parts (wire feeder & main machine & water tank) could be assembled together on a composite car

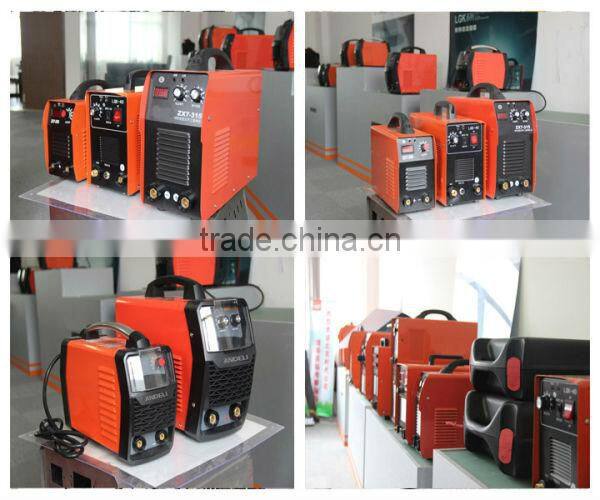

2.Products Show

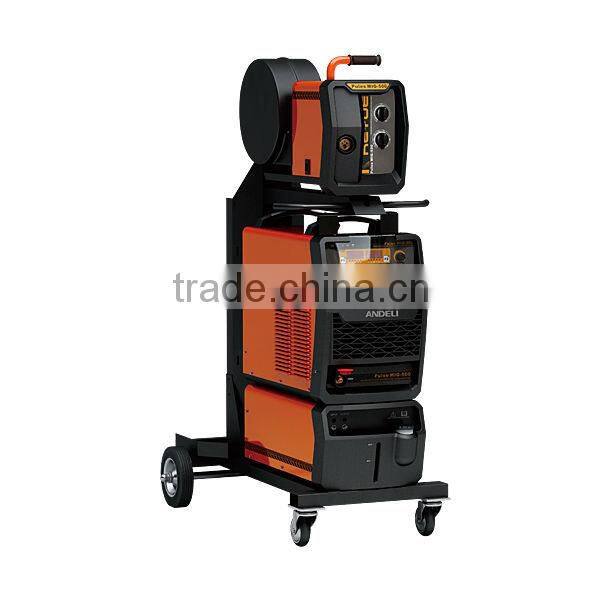

Beautiful welding shape design--  Pulse MIG 500 welding machine

2013 new digital Inverter advanced pulse inverter tig mig mma welding machine







3.About us





Why choose ANDELI Brand welding machine?



·Welding machine Manufacturer,OEM vendor.



·Annual 40,000 sets welders exported, good feedback.

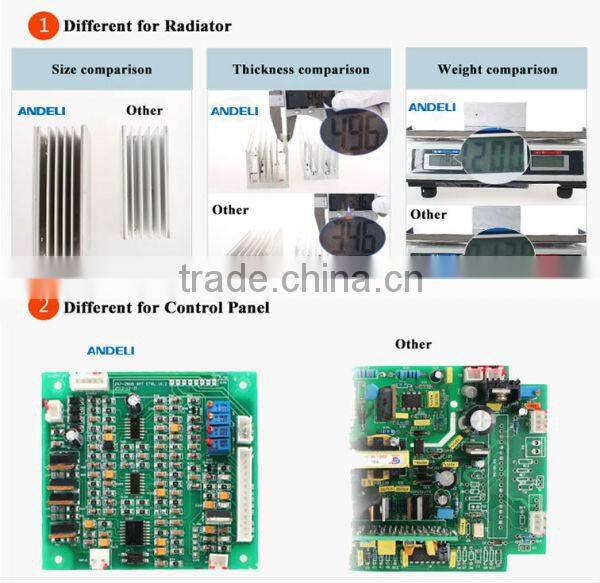

·Dustproof straight blowing design----Super size radiator

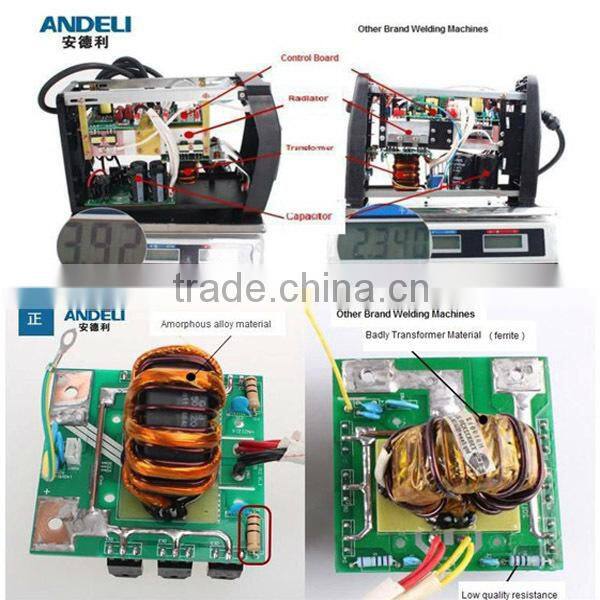

·SMT patent PCBS----amorphous transformer



·Import Fairchild,Infineon,Renasas IGBT/MOsfet



·Other famous brand components.



·Foreign site instruction for large order



·1% free spare parts to support repairment,one year warranty













AS a result,



ANDELI Welder selling NO.1 on (chinese B2C)

Inquiry now,Feedback in 24 hours,Even in weekend!
