Specifications
Pulse mig mag weding machine1.Pulse MIG
2.Full digital control system of wire, wire feeding accurate
3.CE

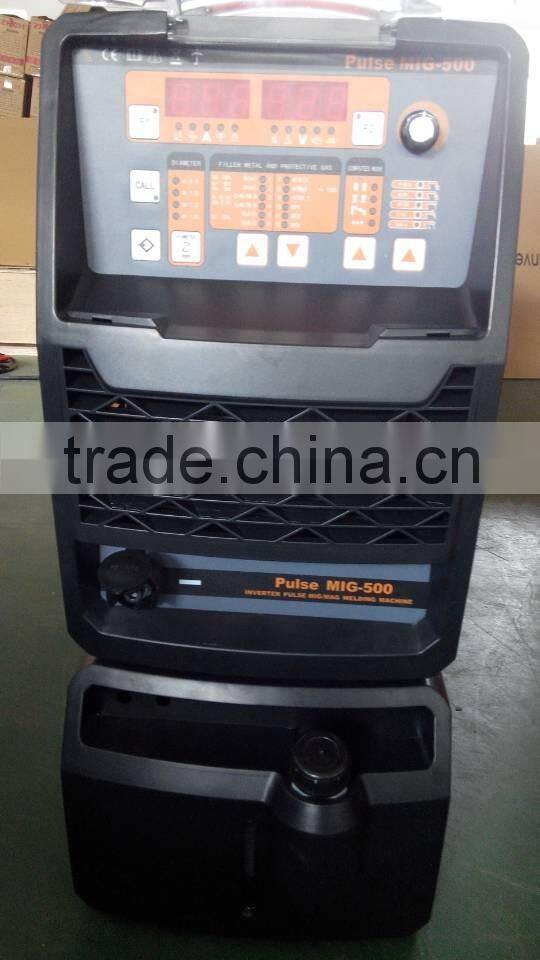

4T Function DSP Contrl Digital Automatic Pulse Mig Mag Welding Machine MIG-500P 500amp suitable for all kinds of welding job
Application:
1. MIG/MAG,P-MIG/MAG,DOUBLE P-MIG,CO2,TIG,P-TIG,MMA,carbon arc gouging
2. DSP control system,more accurate welding process and stable arc
3. DSP control wire feed,feeding wire more acuurately and smoothly
4. Preprogrammed expert database,intelligentize parameters combination
5. One knob synergic operation,simple and easy for everyone to use
6. Up to 100 user defned programs can be saved
7. Special 4T function is suitable for metals of good heat conductivity,perfect starts and fnishes to all welds
8. Reserved interfaces to connect with welding robot and different variants
9. Soft switch inverter technology leads to unbeatable long term reliability and very energy effcient
10. Could equip digital welding torch, quicker and more convenient
Specification:
| DSP Double Pulse MIG/MAG Welding Machine | ||
| Model | Pulse MIG-350 | Pulse MIG-500 |
| Type | IGBT Module | |
| Rated input voltage (V) | three phase AC380 ±10% / 50Hz | |
| Rated input capacity (KVA) | 14.4 | 25 |
| Rated input current (A) | 25 | 46 |
| Rated duty cycle (%) | 60 | 60 |
| Output current adjustment (A) | 25-350 | 25-500 |
| Output voltage adjustment (V) | 14-40 | 14-50 |
| Open-circuit voltage (V) | 96 | 98 |
| Efficiency (%) | ≥89 | |
| Power factor | ≥0.87 | |
| Diameter of welding wire (mm) | 0.8, 1.0, 1.2, 1.6 | |
| Net weight (KG) | 42.5 | 52.5 |
| Dimension of machine (mm) | 645×335×576 | 645×335×576 |
| Flow rate of shielded gas (L/min) | 15-20 | |
| Insulation of main transformer | H | |
| Insulation of output reactor | B | |
| including accessories: earth clamp×1pcs, cable joint×3pcs, grounding cable×3meters, control cable×5meters, pressure regulator×1pcs, water cooled MIG torch×1pcs, water tank×1set, wire feeder×1set | ||
| (P)MIG-350/500: each parts (wire feeder & main machine & water tank) are separated | ||
| (P)MIG-350H/500H: all parts (wire feeder & main machine & water tank) could be assembled together on a composite car | ||
Our Competive
More Details:
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY ANDELI.
* FULL SERVICE AND PARTS BACK UP.
* 24 MONTHS WARRANTY.
The data in the above table is only for reference. Please subject to the nameplate on the device..
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Yueqing city, Zhejiang province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
4.Q:What is the Minimum Order Quantity?
A:Moq usually be 100pcs. Small quantity is also available.
5.Q:Is sample available and the sample fee refundable?
A: Yes, sample fee will be return back in your next formal order.
6.Q:What is the available shipping way?
A: Small quantity usually choose DHL, Fedex, UPS and EMS etc.international door to door express.
Bulk order would be sea/ air shipping.
Package&Shiping
Usually the machines are packed by carton.Big welding machines are packed in wooden box .
- OEM is available
- Deliver time:If there have stock,we will delivery the goods 3-7 work days after received payment. Otherwise,we will delivery it 25-30 work days after received payment.
- Payment:we can accept T/T,Western Union,L/C,Aliexpress Escrow
- Gurantee and aftersale servieces:
- 1 years warranty for all items
- 1%-2% Free spare parts will be provided for repairment.
- Maintenance manual
- 24 hours support by e-mail
- For Large Order,Engineer can be sent to your country for on-site maintenance instructions
