Specifications

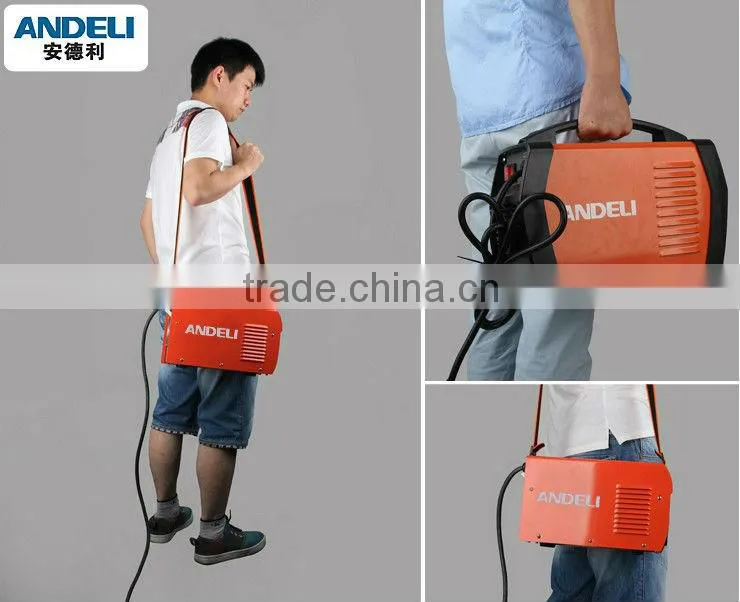

IGBT Module tig/cut/mma Plasma Cutter1.Small,light,easy to carry
2.More economic, efficient
3.small and smooth cutting seam
IGBT Module ac dc tig/cut/mma Plasma Cutter
| Inverter DC Air Plasma Cutter | |||
| Model | CUT-100 | CUT-120 | CUT-160 |
| Type | IGBT Module | ||
| Rated input voltage (V) | three phase AC380 ±15% | ||
| Rated frequency (Hz) | 50/60 | ||
| Rated input capacity (KVA) | 15 | 18 | 30 |
| Rated input current (A) | 23 | 27 | 45 |
| No-load voltage (V) | 380 | 280 | 380 |
| Output current (A) | 30-100 | 30-120 | 40-160 |
| Rated working voltage (V) | 120 | 128 | 144 |
| Duty cycle (%) | 60 | 60 | 60 |
| No-load loss (W) | 100 | 100 | 100 |
| Efficiency (%) | 85 | 85 | 85 |
| Power factor | 0.93 | 0.93 | 0.93 |
| Net weight (KG) | 40.3 | 40.3 | 56.9 |
| Gross weight (KG) | 48.2 | 48.6 | 74 |
| Packing | carton | carton | wooden |
| Dimension of machine (mm) | 645×335×576 | 645×335×576 | 700×360×638 |
| Dimension of packing (mm) | 700×390×660 | 700×390×660 | 760×450×735 |
| Method of arc start | uncontact | uncontact | uncontact |
| steel: 1-30 | steel: 1-35 | steel: 1-40 | |
| Optimum thickness of work piece (mm) | steel: 1-25 | steel: 1-30 | steel: 1-35 |
| aluminum/copper: 1-12 | aluminum/copper: 1-15 | aluminum/copper: 1-17 | |
| including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, pressure regulator×1pcs, gas hose×0.6meter, hose hoop×2pcs, cutting torch×1pcs | |||
PLS NOTE:
The average of our welding machine lasts between FIVE and SIX years.
If there were problems in seven days,we replace the new one for you.
Why choose ANDELI Brand welding machine?
1. We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
2. We use all new components,TOSHIBA mosfet tube,FUJI diode,NICON capacitor and so on imported components.
3. We adopt SMT technology to decrease failure rate and it is convenient to repair the machine and reduce the cost of repairing,we just need to change the bad pcb board.
4. We have successfully exported to Indonesia, Malaysia, and Thailand and so on foreign countries in all more than ten thousand of each model.We all get good feedback.
5. For large order,our engineer can come to your country Site Instruction.
6. We give customer 1% FREE SPARE PARTS (include pcbs with components and additional mosfet tube and components) to support repairment.
7. We provide a FREE ONE YEAR WARRANTY for all our items.
8. OEM brand.
Strong Welding Capacity:
Achievements:
Our competive :
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY ANDELI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.
Send inquiry now, get offer in 24 hours! plasma cutter
