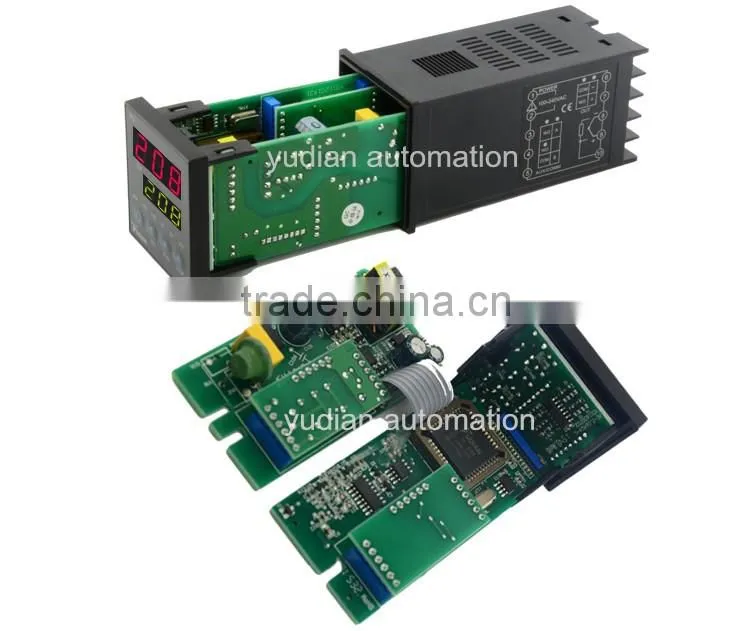

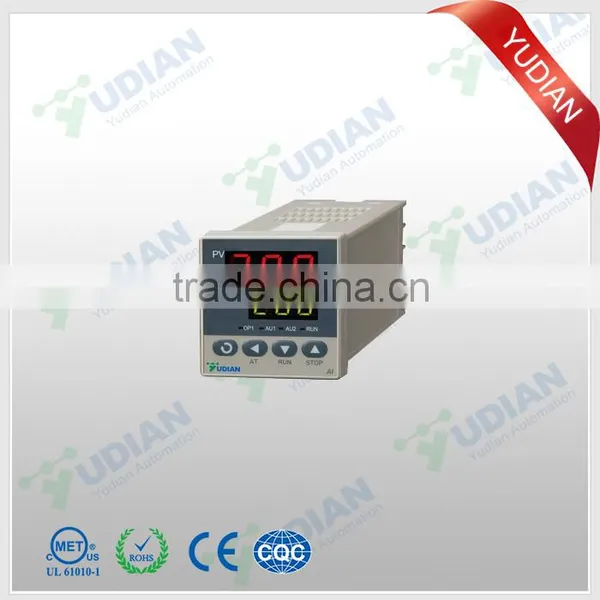

yudian 208 small temperature controller lcd controller:
ISO9001 certification and CE certified, achieving world class level of quality, anti-interference ability and safety
I. Technical Specification:
1. Input type : K,T, E, J, N, PT100
2. output type: Relay, SSR voltage output.
3. Accuracy : 0.3%FS±2°C
4. Resolution : 1℃ or 0.1 ℃
5. Control mode: On-off control or PID control
6. Alarm function: High Alarm, Lower limit alarm,Deviation High Alarm.
7. Power supply voltage rating: 100-240VAC, -15%, +10% / 50-60Hz or 24VDC
8. Ambient temperature: -10~+60°C, Humidity: 0~90RH%
___________________________________________________________________________

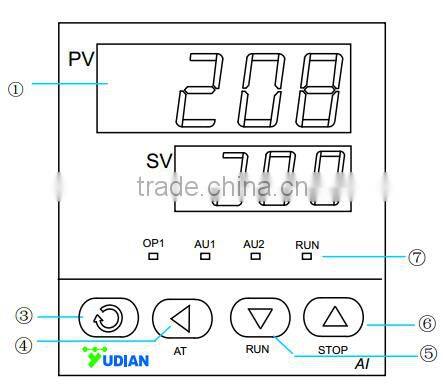

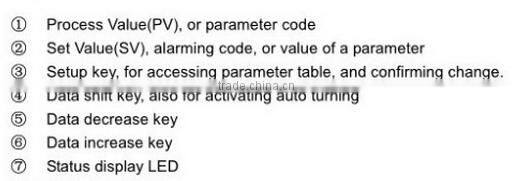

II. Front panel and Operation:
___________________________________________________________________________
III. Model Code:
The type of AI-208 temperature control is made up of 4 parts:
AI-208 A1 L L0
1 2 3 4
Part 1:
AI-208 Type PID economic temperature controller, accurancy 0.3%FS±2°C
Part 2: Dimension
Part 3:Output Type
L: Relay contact output module, capacity 2A/250VAC, normal open.
Part 4: Alarm
N: No alarm.
L0: 1 alarm
L3: 2 alarm
1) Factory with 25 years experience.
2) Quick delivery ( within 3~5 working days).
3) Retail/Wholesale/OEM/ODM available .
We expect to cooperate with machinery manufacturers,
better price for bulk order.
4)We provide after sales service and technical assistance as per the
customers requirement and needs.
1) A piece of heating controller ;
2) A paper of user manual;
3) One-year/ 3-year warranty card and Quality Approval card;
4) A lable of units;
5) A pair of installaton brackets;
6) Nice package carton box with Yudian logo.
1. How long will you give me the reply?
we will contact you as soon as possible.
2. Could I get samples of temperature controller ssr ?
Yes,we have products in stock ,so you can get the samples quickly.
3. How about the quality of h temperature controller ssr ?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4. Could I visit your factory?
Of course,if you need we will help you to visit our factory.
5. If I have paid,when will you help me to produce?
We will start producing immediately after receiving the payment.
