Home > Products > AC/DC IGBT Pulse TIG Welding Machine > bast selling ac dc pulse cheap tig welders for sale 315A
bast selling ac dc pulse cheap tig welders for sale 315A
- 20000 Set / Sets per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | Andeli |
Model Number: | TIG-315AC/DC* | Certification: | CE CCC ROHS | Warranty: | 1year |
Product Description
Specifications
cheap tig welders for sale2. small splashing
3. OEM
4. 2 years warranty
5. CCC CE ROHS
bast selling ac dc pulse cheap tig welders for sale 315A
IGBT MODULE TYPE
1. IGBT high frequency soft switch transform,high efficiency and reliability
2.MCU controlled technology, multi-function in one machine, convenient to use
3. foot pedal to control current is optional
4.passive power factor correction makes power factor higher
5.easy to arc starting, stable arc, high performance
6.accurate adjustment can achieve great penetration, aesthetic appearance of
weld seam and low electrode consumption
Specifications:
Inverter TIG-AC/DC Square Wave Welding Machine | |||
Model | TIG-315AC/DC | TIG-500AC/DC | TIG-630AC/DC |
Type | IGBT Module | ||
Rated input voltage | three phase 380V±10% / 50Hz | ||
Rated input capacity | 13KVA | 25.7KVA | 34.9KVA |
Rated input current | 20A | 39A | 53A |
Constant current | 5-315A | 20-500A | 20-630A |
Peak current | 5-315A | 20-500A | 20-630A |
Welding current for MMA | 20-315A | 20-500A | 20-630A |
Drive current for MMA | 10-200A | ||
Base current | 5-315A | 20-500A | 20-630A |
Start arc current | 20-160A | ||
Crater arc current | 5-315A | 20-500A | 20-630A |
Duty ratio | 1-100% | ||
AC bias ratio | -50%~+30% | ||
Pulse frequency | 0.2-20Hz | ||
AC frequency | 20-200Hz | 20-100Hz | |
Pre-flow time | 0.1-15s | ||
Gas delay time | 0.1-15s | ||
Current slow up time | 0.1-10s | ||
Current decay time | 0.1-15s | ||
Cleaning ratio | -40%~+40% | ||
Rated duty cycle | 60% | 60% | 35% |
No-load voltage | 74V | 79V | 83V |
Efficiency | 79% | 77% | |
Power factor | 0.95 | ||
Net weight | 47.2KG | 75KG | 80KG |
Insulation of main transformer | H | ||
Insulation of output reactor | B | ||
Note: the rated AC is defined in the condition of 50Hz. | |||
including accessories: earth clamp×1pcs, cable joint×2pcs, grounding cable×3meters, TIG torch (air cooled QQ300)×1pcs |
Details:
01. 100% seamless, full-chip technology of the control panel,greatly increase the reliability of welding machine, at the same time Andeli exclusively using over-current protection system on the control panel , prevent large current shock, prevent the welder secondary damage, even Fried tube.
02. Andeli is the only stick with the most advanced of the amorphous structure transformer 200G models in China, the machine efficiency is over 32%, compared to "ferrite" is extended more than twice the life.
03. Recent wind blowing straight type design, welding machine can work in the high temperature of 60C , load rate of 100%.
04. From Germany's Siemens technology imported from IGBT single pipe, quality guaranteed.
05. Cooperate with industry leading capacitor production enterprises, 4470uf, high quality, to ensure the high-efficiency and stable output of the electric welding machine.
06. Super-size capacity of the radiator, to improve welding efficiency by more than 26%.
07. Interlayer duct patent technology, completely prevent dust into the upper and lower plate, and cause a short circuit to improve the service life of welding machine; All lines adopt insulation layer leather processing, Andeli want to manufacturing the best welding.
08. Andeli welding machine production in line with international safety standards, each welder has a grounding design.
Advantages (compared with traditional welding machines)
Accessories:
Packing:
Production Line:
Application and Projects:

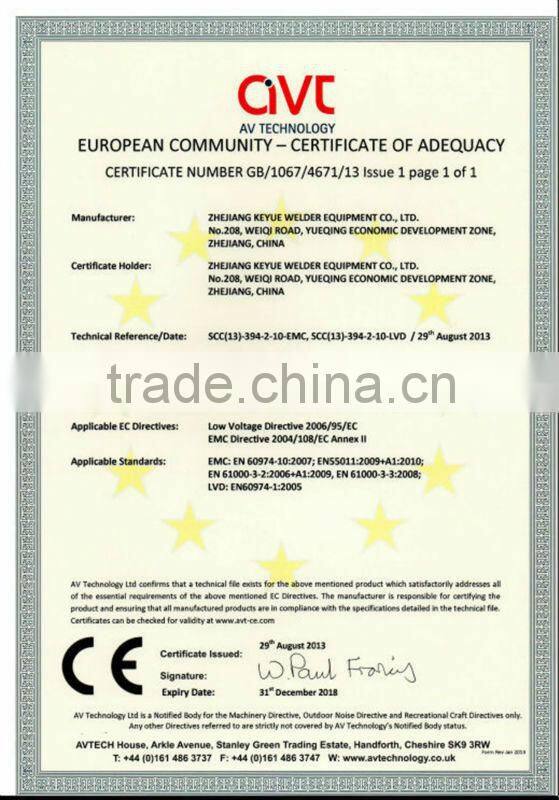

Certificates:
For More Info, pls contact me:
Attn.: Ms. Aolin Liu Skype: summerlin8023 Tel: 0086-0577-61722823 Email: andeli312 at
Your emails and inquiries would be dealt within 24 hrs, despite of weekends
