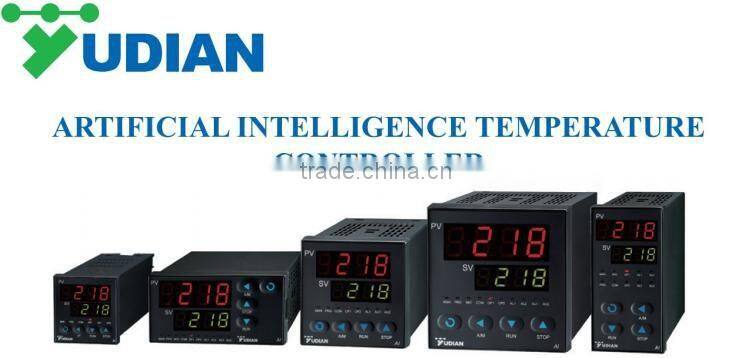

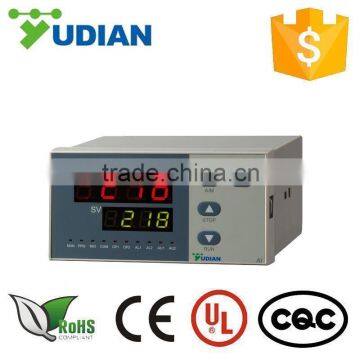

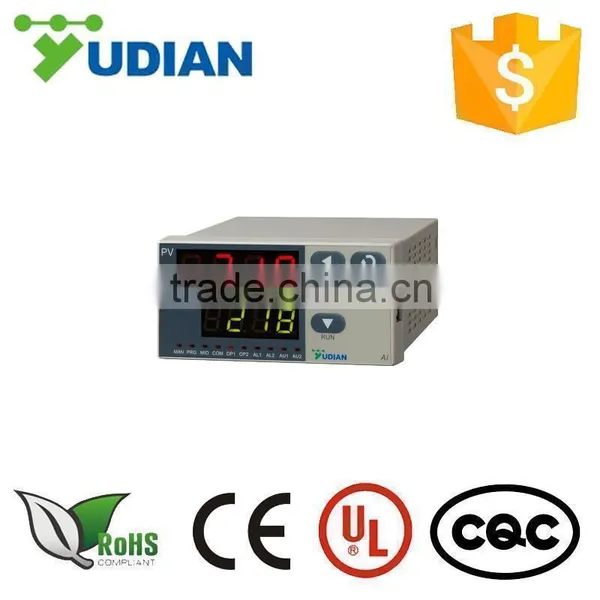

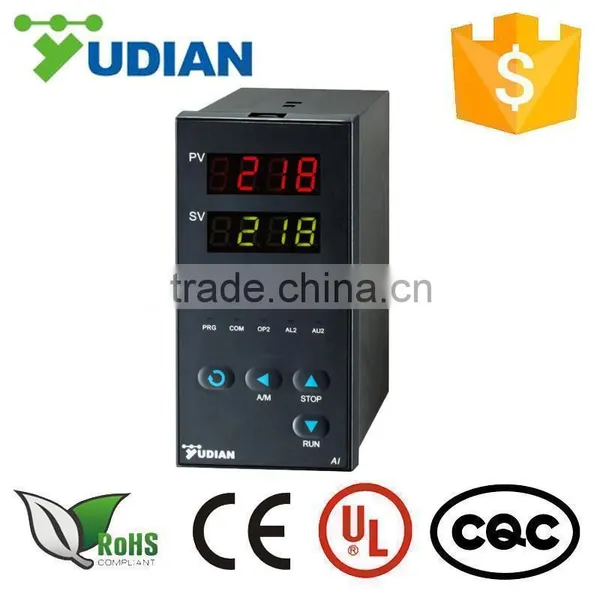

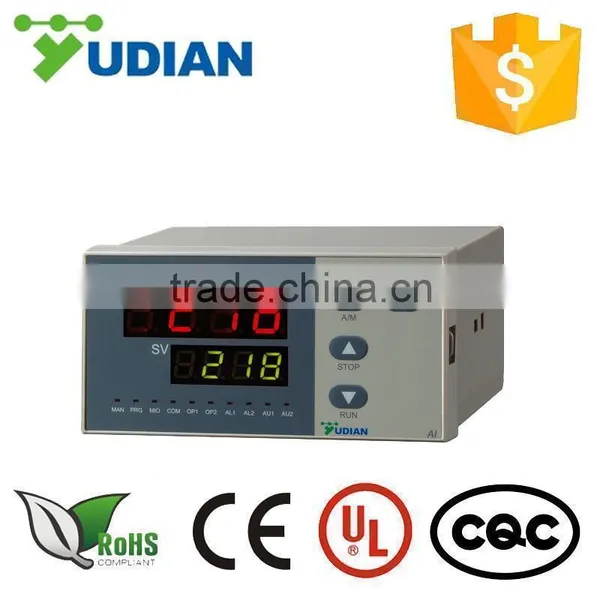

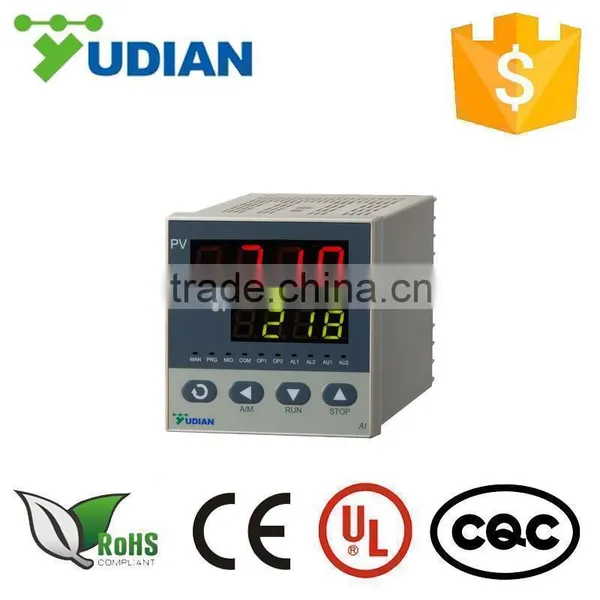

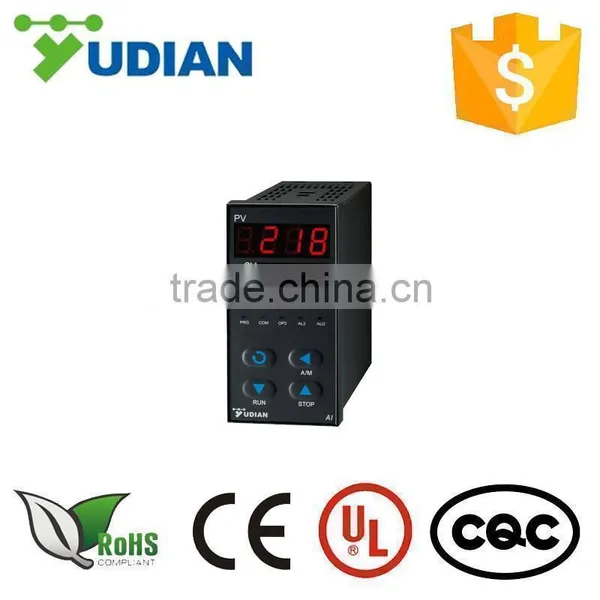

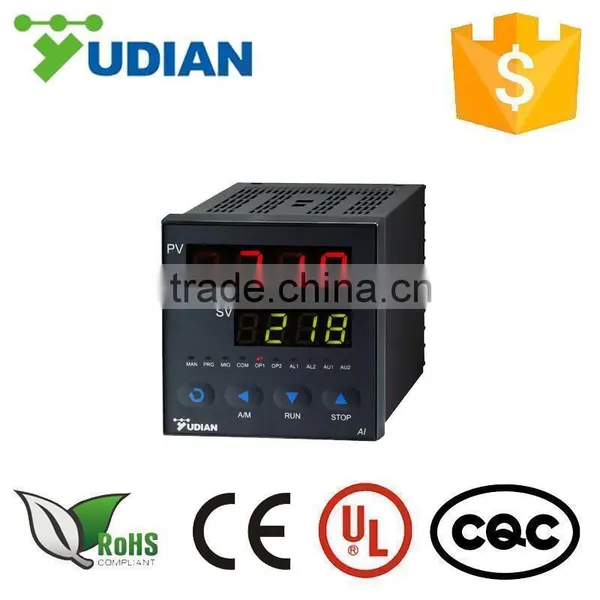

Yudian AI-218A PID Temperature Controller 96*96mm RKC REX-C900
Main Features for Yudian AI-218A PID Temperature Controller 96*96mm RKC REX-C900
- Designed specially for equipment that work in 0~+9999℃, such as light industry, oven, furnace, lab equipment, cooling/heating equipment. Easy to learn and operate and lowest cost.
- Basic panel AI218 is fixed with SSR or relay output modules, no need to add extra output modules. L0 or L3 modules can be added when one or two alarms is needed.
- Universal power supply 100~240VAC.
- Armed with AT and AI PID Intelligent control algorithm function.
- Qualified with ISO9001, CE and CQC, satisfying European RoHS Standard.
Technical Specifications for AI-218A PID Temperature Controller 96*96mm RKC REX-C900
1. Input type:
Thermocouple: K, S, R, E, J, N;
Resistance temperature detector: Pt100.
2. Instrument Input range: K, S, R, E, J, N :0~+9999°C; Pt100: 0~+800°C.
3. Measurement accuracy: 0.3%FS±1°C.
4. Temperature display resolution: 1.
5. Control mode: On-off control mode , or PID control with the function of parameter auto tuning.
6. Alarm function: High Alarm, Lower limit alarm,Deviation High Alarm.
7. Power supply voltage rating: 100-240VAC, -15%, +10% / 50-60Hz.
8. Power consumption: ≤2W.
9. Ambient temperature: -10℃ to 60℃; Humidity: 0~90RH%.
Model Code Symbol for AI-218A PID Temperature Controller 96*96mm RKC REX-C900
Part 1 Stands for Model Series
AI-218, temperature controller 0.3%FS±1℃ accuracy. 1℃ or 0.1℃ display resolution.
Part 2 Dimension
| Size | Front Panel (W*H) | Cut Out (W*H) | Depth Behind Mounting Surface |
| A | 96*96mm | 92*92mm | 100mm |
| A1 | 96*96mm | 92*92mm | 70mm |
| B | 160*80mm | 152*76mm | 100mm |
| B1 | 160*80mm | 152*76mm | 70mm |
| C | 80*160mm | 76*152mm | 100mm |
| C1 | 80*160mm | 76*152mm | 70mm |
| D | 72*72mm | 68*68mm | 95mm |
| D1 | 48*48mm | 45*45mm | 78.5mm |
| D2 | 48*48mm | 45*45mm | 95mm |
| E | 48*96mm | 45*92mm | 100mm |
| E1 | 48*96mm | 45*92mm | 70mm |
| F | 96*48mm | 92*45mm | 100mm |
| F1 | 96*48mm | 92*45 | 70mm |
Part 3 Indicates the Module Installed in OUTP Socket
L Relay contact output module (Capacity: 2A/250VAC, normal open)
G SSR voltage output module (30mA/5VDC)
Part 4 Indicates Auxiliary Alarm Output
N (or none) no module installed
L0 Relay contact output module (Capacity: 2A/250VAC, normal open/ normal close)
L5 Dual relay output moodule (Capacity: 2A/250VAC, normal open, support AU1 and AU2 alarm output)
Remark: For D1-size instrument, OUTP (output module) is SSR mounted with driving voltage 30mA/5VDC. AU1 is also selectable as relay alarm output (NO+NC, 2A/250VAC). D1 is not in modular design.

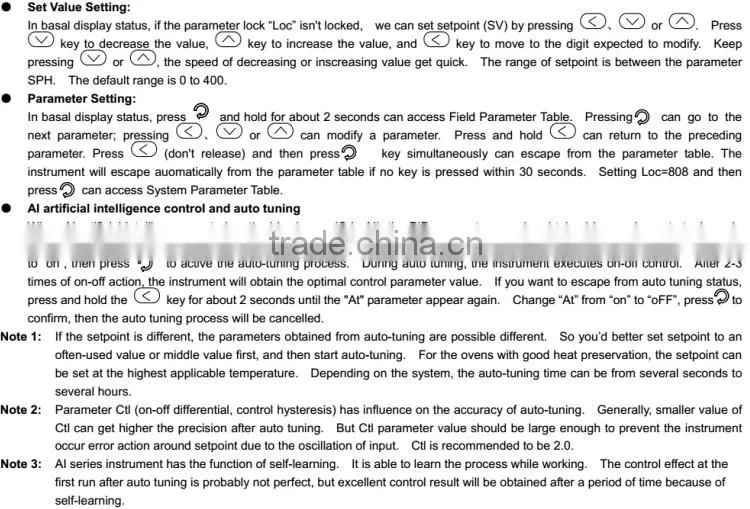

Operation Description for Yudian AI-218A same as RKC REX-C900
You will get:
- A piece of temperature controller;
- A paper of user manual;
- 2-year warranty card and Quality Approval card;
- A lable of units;
- A pair of installaton brackets;
- Nice package carton box with Yudian logo.
- Factory with 26 years experience.
- Three to ten years warranty time.
- Quick delivery ( within 2 working days).
- Retail/ Wholesale/ OEM/ ODM available.
- Better price for bulk order.
- We provide after sales service and technical assistance as customers requirement and needs.
If you are interested in our products or have any questions, please feel free to contact us.
