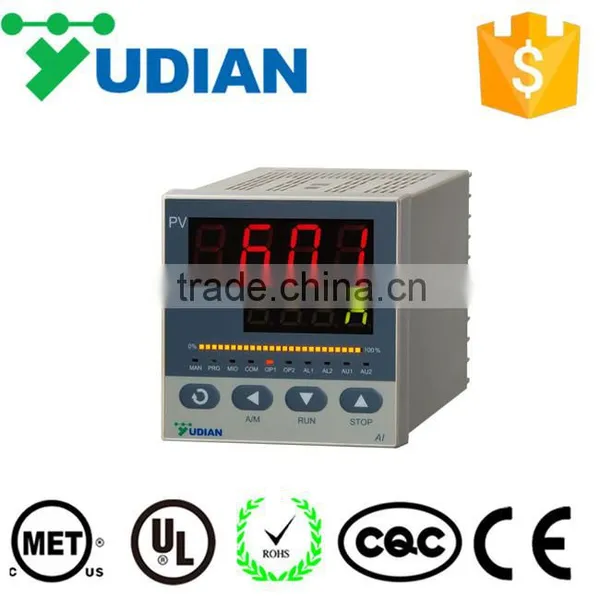

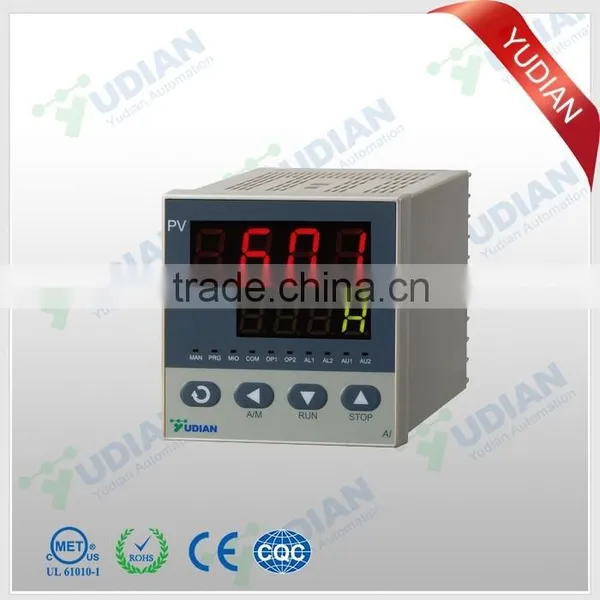

YUDIAN AI-601 power meter
___________________________________________________________________________
I. Main Features:
- Equipped with alternative voltage and alternative current signal inputs isolated by transformer. It provides the functions of communication, retransmission and alarm. The main board is isolated with heavy current.
- Measurement accuracy is 0.2%FS.
- Provide dual display instrument.
- Up to four channels of alarm, including two high limit alarms and two low limit alarms, Introduce digital calibration technology, easy to operate and maintenance free, automatically adapted to 50Hz/60Hz power measurement.
- Support RS485 and RS232C communication interface and AIBUS communication protocol, which is 3 to 5 times faster than other field protocols.
- Provide signal retransmission functions with transmission accuracy of 0.2%F.S. able to output standard industrial signal.
- Universal power supply of 100-240VAC or 24VDC and various installation dimensions for users to choose from.
- High quality and latest hardware design using high performance electronic components energy efficient less temperature drifting provides higher stability and reliability.
- ISO9001 and CE certified, achieving world class level of quality, anti-interferenceability and safety.
___________________________________________________________________________
II. Technical Specification:
| Input type |
AC Current: 0-5A (other specification can be ordered), the displayed scale can be freely defined; AC Voltage: 0-500VAC (0~250VAC other specification can be ordered) Power: Displayed power range can be freely defined according to real AC voltage and current. |
| Measurement accuracy | 0.2%FS±1 |
| Temperature shift | ≤0.01%FS/ ℃ (typical value is 50ppm/ ℃) |
| Electromagnetic compatibility (EMC) | IEC61000-4-4, ± 4KV/5KHz; IEC61000-4-5, 4KV |
| Retransmission |
When X3 current module is installed in OUTP slot, process value (PV) can be retransmitted to standard current with maximum load resistor 500 ohm. |
| Alarm function | High limit, low limit, second high limit and second low limit |
| Isolation withstanding voltage |
Between power, relay contact or signal terminals ≥2300VDC; between isolated electroweak signal terminals≥600VDC |
| Power supply | 100~240VAC, -15%, +10% / 50-60Hz; 24VDC / AC, -15%, +10% |
| Power consumption | ≤5W |
| Operating Ambient | Temperature -10~+60 ; ℃humidity≤90%RH |
___________________________________________________________________________

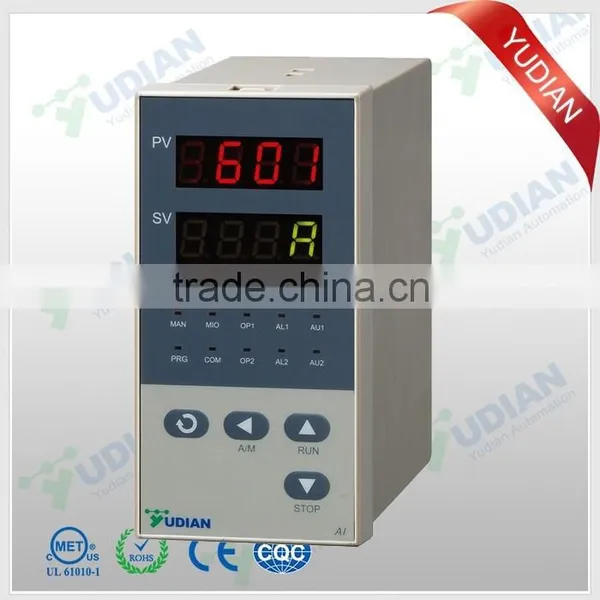

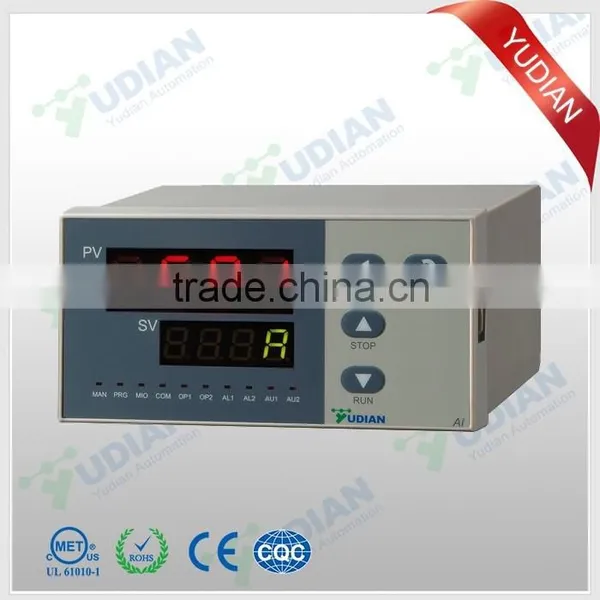

III. Front panel and Operation:
- Upper display window, displays PV, or code of a parameter
- Lower display window, displays alarming code or parameter value
- Setup key, for accessing parameter tables, and confirming change.
- Data shift key
- Data decrease key
- Date increase key
- Indicator lamps: OP1 and OP2 indicate the status of current retransmission. AL1, AL2, AU1 and AU2 indicate the I/O actions of the corresponding modules.
___________________________________________________________________________
IV. Model Code:
The ordering code of AI-601 is made up of 7 parts,:
AI-601 A N X3 L3 N S4
1 2 3 4 5 6 7
Part 1: Model Type
AI-601 AC current, AC voltage and power Indicating/Alarming Instrument. Input (0~5A, 0~500VAC)
AI-6010 AC voltage indicating/alarming instrument. Input (0~500VAC)
AI-6011 AC current, indicating/alarming instrument. Input (0~5A)
Part 2: Dimension

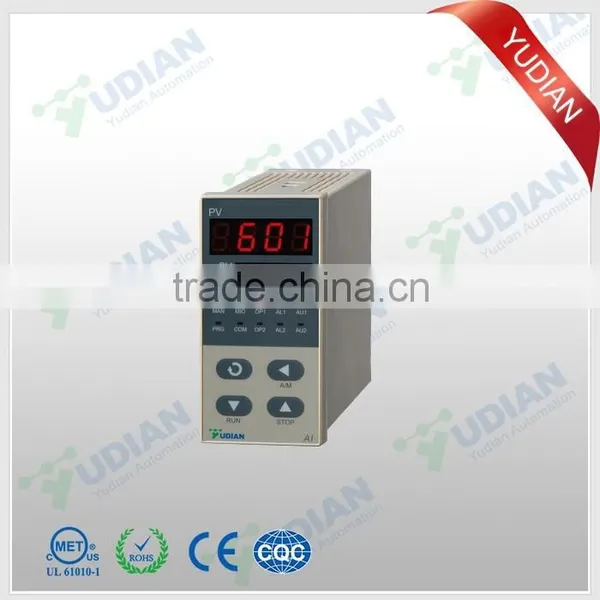

A: 96*96mm
B: 160*80mm
C: 80*160mm
D: 72*72mm
E: 48*96mm
E5: 48*96mm, DIN rail mounting
F: 96*48mm
Part 3: Multiple input/output (MIO)
V10 / V24: Isolated 10 / 24VDC voltage output, can supply power for external transmitter or transducer
Part 4: Main output (OUTP)
X3: Installing X3 current output module can retransmit process value (PV).
Part 5: Alarm output (ALM)
N: No alarm.
L0: 1 alarm
L3: 2 alarm
Part 6: Auxiliary output (AUX)
N: No alarm.
L0: 1 alarm
L3: 2 alarm
Part 7: Communication (COMM)
N: none
S4: RS485 communication function module
___________________________________________________________________________
IV. Terminal Layout and Wiring:

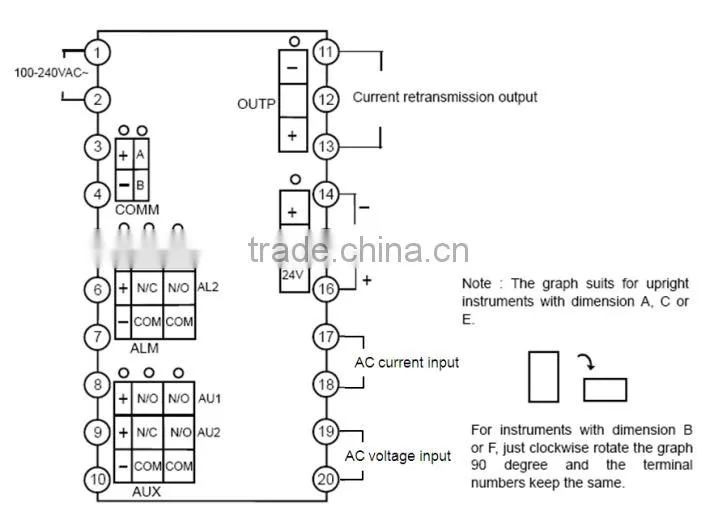

Wiring graph for instruments with dimension A, B, C, E or F
(Note: AC signal input do not have “+” and “-” limit)
