Original Xiaomi Router 3 Mini Mi WiFi Router 4 Antenna Roteador Dual Band
2.4G/5G 867Mbps USB With Smartphone APP Control
Hardware Configuration
CPU MT7620A
ROM 128MB SLC Nand Flash
Memory 128MB DDR2
2.4G WiFi 2X2 (Support IEEE 802.11N, The highest rate up to 300Mbps)
5G WiFi 2X2 (Support IEEE 802.11AC, The highest rate up to 867Mbps)

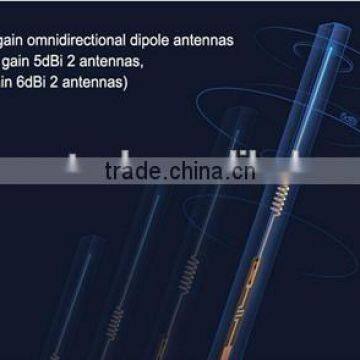

Antenna
External 4 high gain omnidirectional dipole antennas (2.4G maximum gain 5dBi
Hardware Configuration

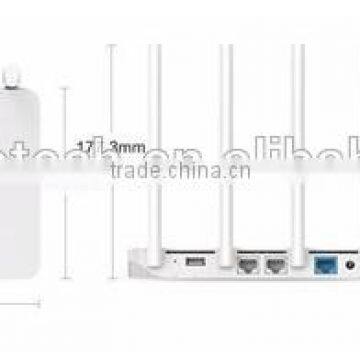

Machine interface
1 USB 2.0 Port (DC output: 5V/1A)
2 10/100 Adaptive LAN port (Auto MDI/MDIX)
1 10/100 Adaptive WAN port (Auto MDI/MDIX)
1 red/blue/yellow LED indicator lights
1 system restore factory settings press
1 power supply input interface
Wireless Parameters

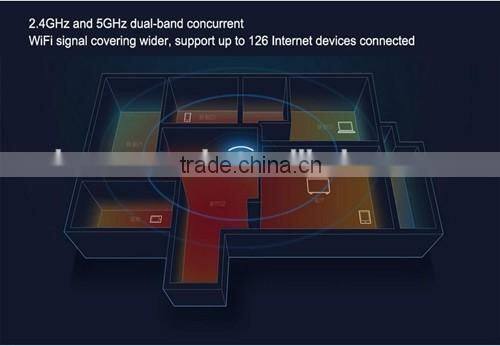

2.4GHz and 5GHz dual-band concurrent
Does not support beam forming technology
Wireless channel 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel: 149,153,157,161,165
5GHz DFS Channel: 36,40,44,48,52,56,60,64
Modulation mode 11b:DSSS: DBPSK(1Mbps), DQPSK(2Mbps),
CCK(5.5/11Mbps)
11a/g:OFDM:BPSK(6/9Mbps),
QPSK(12/18Mbps),16QAM(24/36Mbps),
64QAM(48/54Mbps)
11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.
Rate set: MCS0-MCS15
11ac:MIMO-OFDM:BPSK,
QPSK,16QAM,64QAM,256QAM.
Rate set:MCS0~MCS9(Support 2 spatial stream)
Receiver sensitivity 11Mbps:≤-90dBm,54 Mbps:≤-72dBm,
HT20 MCS7:≤-69dBm,
HT40 MCS7:≤-66dBm,
VHT20 MCS8:≤-65dBm,
VHT40 MCS9:≤-60dBm,
VHT80 MCS9:≤-58 dBm
Software Parameters
Operating System Intelligent router based on OpenWRT depth customization operating system
MiWiFi ROM Support Web,Android,iOS,Windows,
OS x system router management software
Supported language Chinese
Senior management
For advanced users/developers with root permissions and the router provides native
toolchain and SDK

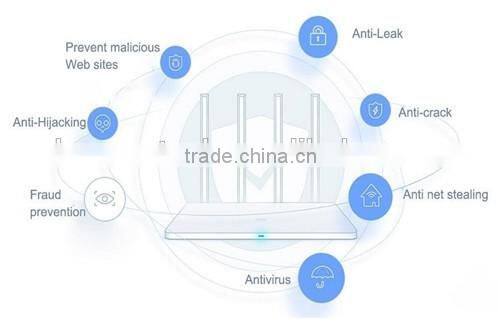

Wireless security WPA-PSK/WPA2-PSK encryption, wireless access control (black and white lists), SSID hidden
Open platform Support, sogou, such as plug-in, provided third-party developer plug-in development tools
Management Application Support Web,Windows,Android,MacOS,iOS
Protocol Standards IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u
Certification standards GB9254-2008 YD/T993-1998 GB4943.1-2011
Working environment Working environment temperature: 0-40C
Operating humidity: 10%-90%RH (No condensation)
Storage temperature range: -40-70C
Storage humidity: 5%-90%RH (No condensation)
Power consumption 12W (Maximum power consumption)

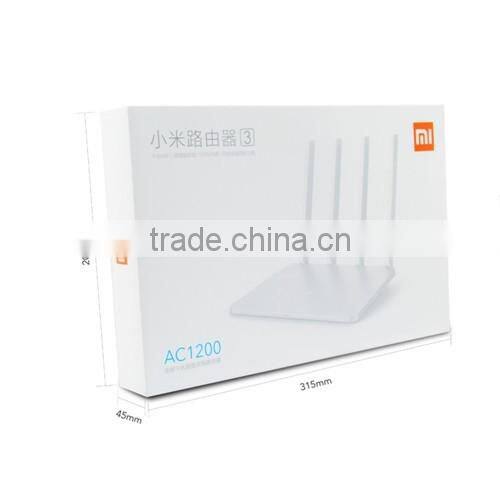

1*Original Xiaomi Router 3
1*Charger #12V / 1A #
1*Instructions(Manual only in Chinese)
1*Warranty Card
Hardware Configuration
CPU MT7620A
ROM 128MB SLC Nand Flash
Memory 128MB DDR2
2.4G WiFi 2X2 (Support IEEE 802.11N, The highest rate up to 300Mbps)
5G WiFi 2X2 (Support IEEE 802.11AC, The highest rate up to 867Mbps)
Antenna
External 4 high gain omnidirectional dipole antennas (2.4G maximum gain 5dBi
Hardware Configuration
Machine interface
1 USB 2.0 Port (DC output: 5V/1A)
2 10/100 Adaptive LAN port (Auto MDI/MDIX)
1 10/100 Adaptive WAN port (Auto MDI/MDIX)
1 red/blue/yellow LED indicator lights
1 system restore factory settings press
1 power supply input interface
Wireless Parameters
2.4GHz and 5GHz dual-band concurrent
Does not support beam forming technology
Wireless channel 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel: 149,153,157,161,165
5GHz DFS Channel: 36,40,44,48,52,56,60,64
Modulation mode 11b:DSSS: DBPSK(1Mbps), DQPSK(2Mbps),
CCK(5.5/11Mbps)
11a/g:OFDM:BPSK(6/9Mbps),
QPSK(12/18Mbps),16QAM(24/36Mbps),
64QAM(48/54Mbps)
11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.
Rate set: MCS0-MCS15
11ac:MIMO-OFDM:BPSK,
QPSK,16QAM,64QAM,256QAM.
Rate set:MCS0~MCS9(Support 2 spatial stream)
Receiver sensitivity 11Mbps:≤-90dBm,54 Mbps:≤-72dBm,
HT20 MCS7:≤-69dBm,
HT40 MCS7:≤-66dBm,
VHT20 MCS8:≤-65dBm,
VHT40 MCS9:≤-60dBm,
VHT80 MCS9:≤-58 dBm
Software Parameters
Operating System Intelligent router based on OpenWRT depth customization operating system
MiWiFi ROM Support Web,Android,iOS,Windows,
OS x system router management software
Supported language Chinese
Senior management
For advanced users/developers with root permissions and the router provides native
toolchain and SDK
Wireless security WPA-PSK/WPA2-PSK encryption, wireless access control (black and white lists), SSID hidden
Open platform Support, sogou, such as plug-in, provided third-party developer plug-in development tools
Management Application Support Web,Windows,Android,MacOS,iOS
Protocol Standards IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u
Certification standards GB9254-2008 YD/T993-1998 GB4943.1-2011
Working environment Working environment temperature: 0-40C
Operating humidity: 10%-90%RH (No condensation)
Storage temperature range: -40-70C
Storage humidity: 5%-90%RH (No condensation)
Power consumption 12W (Maximum power consumption)
1*Original Xiaomi Router 3
1*Charger #12V / 1A #
1*Instructions(Manual only in Chinese)
1*Warranty Card
