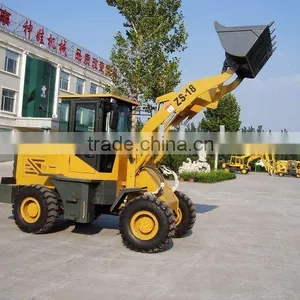

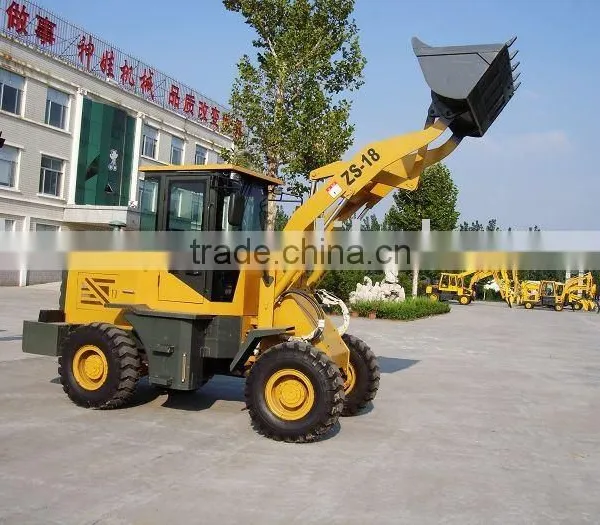

Help Center4.5ton Wheel Drived Loader
Related Products
Specifications
1 With humanized equipments2 Low fuel consumption
3.Low noise
4 Hydraulic dual-variable
5.Full hydraulic steering sys
Quick Details
Condition: New |
Brand Name: shenwa |
Model Number: SZ-16 |
Place of Origin: Shandong China (Mainland) |
Type: Front Loader |
Moving Type: Wheel Loader |
Dimension(Long * Breadth * High): 5000*1600*265... |
Rated Load: 1500kg |
engine model: Z124YAM |
color: required |
Packaging & Delivery
Packaging Detail: |
none |
Delivery Detail |
30 days after the order is confirmed |
Specifications
1 With humanized equipments
2 Low fuel consumption
3.Low noise
4 Hydraulic dual-variable
5.Full hydraulic steering sys
- · Max.dumping height 2900mm
- Max.dumping distance 900mm
- Max.lifting height 3700mm
- Min.ground clearance 230mm
- Distance between axles 2070mm
- Tread 1430mm
- Overall dimensions(L*W*H) 5000*1600*2650mm
- Engine model 4100
- Rated power 44KW
- Rated revolution 2200r/min
- Working pressure 16Mpa
- Max.flux 63ml/r
- Total Weight 3700kg
- Rated loading mass 1600kg
- Gradeability 25%
- Min.walking speed 10km/h
- Max.breakout force 23kn
- Min.rotary radius 5000mm
Performance characteristics:
1.Single-cylinder 28hp,24v,with smooth discharge,low noise,less oil consumption,the power transmission system is driving and reliable.
2.Novel appearance and model,capacious operator cabin,favorable eyeshot.
3.Hydraulic system with steering preferential,with high efficiency and can save energy,the dynamaic performance of which is better.
4.Convenient back cover for repairing,centralized lubricating system,which is comvenient to maintain and upkeep.
5.Fork-type carriage,the stability of the complete appkiance is good,and the structural strength is high.
6.Ascendant performance of complete appliance,with extraordinary operation efficiency.
7.With which many kinds of optional compinents can be matched to meet requirements of different users.
Update Date:2010-10-19 02:55:46
