Polyester conveyor belts,also called EP conveyor belts,whose tension resistant body is canvas woven by polyester
in warp and nylon-66 in weft.The belts have the characteristics of low elongation in warp and good trough ability in
weft,good water resistance,good wet strength,no mould, suitable for medium,long-distance and heavy-load
transportation of materials.Because of the high initial modulus of polyester,the belts can choose a relative
low safety factor
Application fields: Metallurgy, steel plant, building material and construction, energy, chemical,machinery equipment
and port.
Tensile strength:500-3200 N/mm Width:500-2400 mm
Features & Benefits:
1,Reduced strength
The combination of fabric design and dip process provide less elastic and permanent elongation on all specifications.
This minimizes take-up concerns and reduce the number of splice at break-in.
2,High-modules, superior troughability characteristics
With the high-tension PET warp and NN66 fiber could provide the belt high-modules and superior troughability
characteristics.
3,Variety choices of cover types and thickness
| Specification and Technical Data of Multi-ply Polyester Conveyor Belt: | |||||||||||||
| Fabric Type | Fabric Structure | Fabric | Ply Thickness (mm/P) | Strength Series(N/mm) | Cover Thickness (mm) | Width | Length | ||||||
| Warp | Weft | Specs | 2 ply | 3ply | 4ply | 5ply | 6ply | Top | Bottom | mm | m | ||
| Polyester | Polyester | polyester | EP-80 | 0.8 | 160 | 240 | 320 | 400 | 480 | 2.0~8 | 0~4.5 | 400~500 | <=300 |
| (EP) | (EP) | (EP) | EP-100 | 0.8 | 200 | 300 | 400 | 500 | 600 | ||||
| EP-125 | 0.85 | 250 | 375 | 500 | 625 | 750 | |||||||
| EP-150 | 0.9 | 300 | 450 | 600 | 750 | 900 | |||||||
| EP-160 | 0.9 | 320 | 480 | 640 | 800 | 960 | 500~2500 | ||||||
| EP-200 | 1.05 | 400 | 600 | 800 | 1000 | 1200 | |||||||
| EP-250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
| EP-300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | |||||||
| EP-350 | 1.5 | - | 1050 | 1400 | 1750 | 2100 | 600~2500 | ||||||
| EP-400 | 1.8 | - | - | 1600 | 2000 | 2400 | 600~2500 | ||||||
| EP-500 | 2 | - | - | 2000 | 2500 | 3000 | |||||||
| Adhesion and Elongation of the Belt: | |||||
| Belt | Adhesive Strength | Elongation | |||
| Frame | Between Plies | Between Cover and Carcass N/mm | Longitudinal Elongation | Longitudinal Elongationa at Reference Load | |
| N/mm | Elongation at Break | %<= | |||
| Rubber Thickness | Rubber Thickness | %>= | |||
| <= 1.5mm | > 1.5mm | ||||
| EP Canvas | >=4.50 | >= 3.20 | >=3.50 | 10 | 4 |
| Cover Properties of the Belts: | |||||
| Cover Grade | Tensile Strength | Elongation | Abrasion | Change Rate of Tensile Strength and Elongation after Aging | |
| ≥ | ≤ | ≤ | |||
| Mpa | kgf/cm2 | % | mm3 | % | |
| Heavy(H) | 24 | 240 | 450 | 120 | -25~+25 |
| Medium(M) | 18 | 180 | 400 | 100 | -25~+25 |
| Light(L) | 15 | 150 | 350 | 200 | -30~+30 |
Applications
Application: Metallurgy, steel plant, building material and construction, energy, chemical,machinery equipment and port.

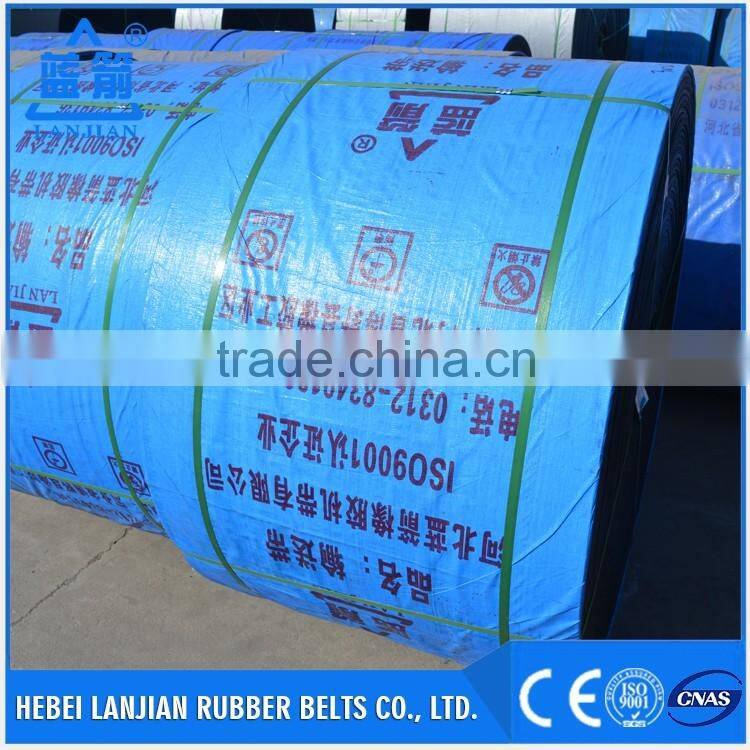

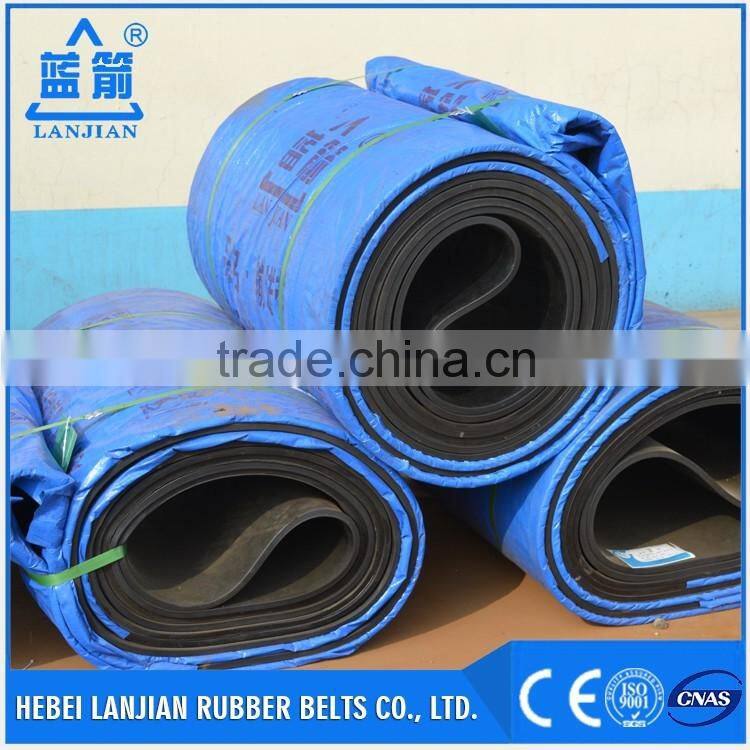

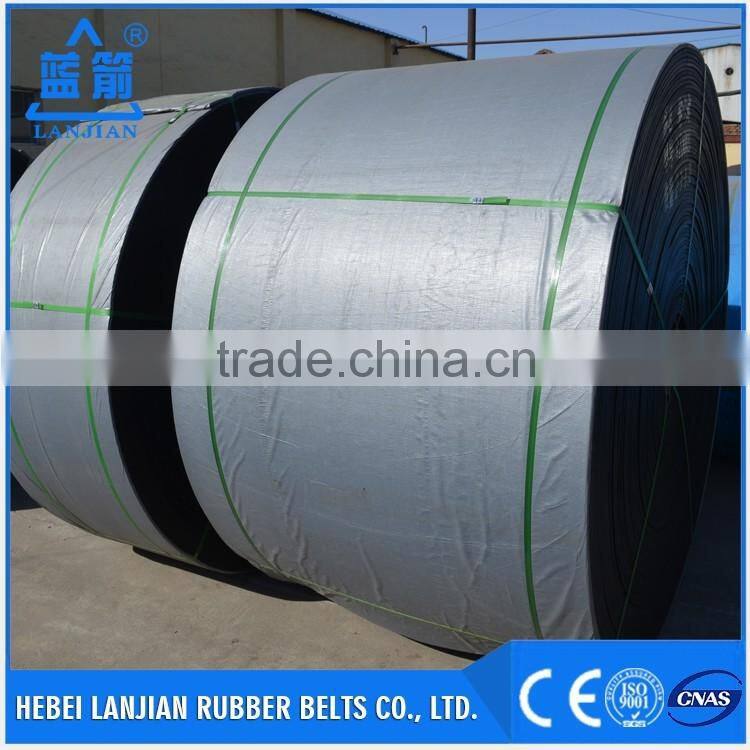

1. Package: Water proof cloth
2. Loading port: Tianjin, Shanghai or according to customer's requirement
3. Delivery Time: 3 -5 working days for samples
10-13 days for each 20ft containers
13-15 days for each 40ft containers
