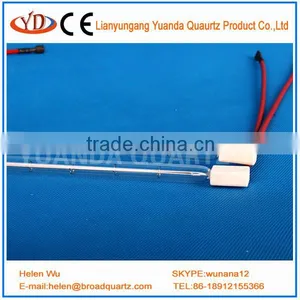

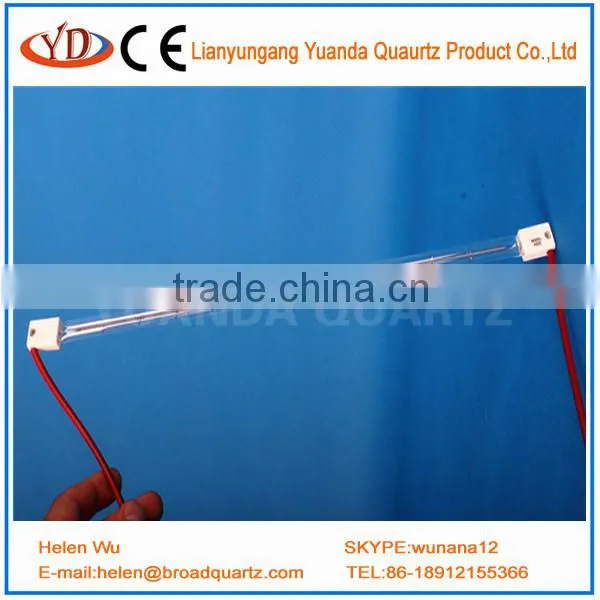

Clear Halogen Lamp Quartz Halogen Infrared Heating Lamp

Specifications

Clear Halogen Lamp Quartz Halogen Infrared Heating Lamp
1, Power:300w-5000w
2, Diameter:8mm-12mm
3, Length:160mm-2500mm







Technical Parameters:

VOLT	110V--380V
POWER	100 W--2000W
HZ	50-60 HZ
Electricity saving rate	30%
Infrared normal direction radiant rate	94%
Electric heat transformation rate	>98%
Operating temperature	less than 1800 C
Highest heat temperature endured	1100 C
Color temperature	2000-2500 k
Surface temperature	500-900 C
Continuous servicing hour	over 6, 000 H

 TYPE

Short Wave Quartz Elements

01.Golden Quartz Halogen Elements

02.Clear Quartz Halogen Elements

03.Quartz Heating Elements

04.Twin Quartz Heating Elements

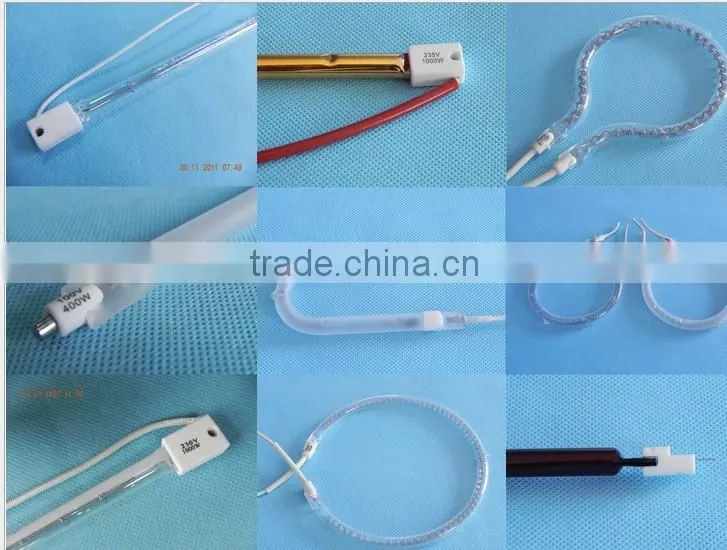

Special shaped tube

U /OMEGA/PEAR/ROCKET /TWIN etc



Product show

Customer will get the best and exact price soon if the inquiry tell us

the total length,powder,voltage ,type and quantity .

MATERIAL:High quality quartz tube and tungsten filament

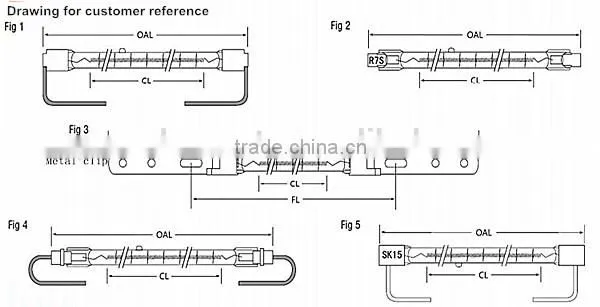

We also can do any Special shaped infrared heat lamp can do your drawing

.



Feature:

1.Clean: No byproducts, no pollution.
2.Safe: Quartz envelope, heat shock resistant.
3.NIR:Most of the spectrum is located near the near-infrared shortwave area.
4. Economical:high power output, the maximum load power line is more than 100 W/cm; plane maximum output power can reach 1000 kw/m2.
5.Soon:Short heating time, especially suitable for rapid high temperature heating.

6.Long life:About6000hours

APPLICATION

INDUSTRY MACHINERY

01.High temperature curing for glue and printing ink

02.PET bottle blowing and laminating

03.Paper drying

04.Wood drying and preheating before painting

05.Plastic softening and synthesis cable production

06.Industrial production oven

07.Car painting

08.High temperature disinfection

FOOD DEVICE

01.Food baking heating and heating preservation

02.Flavor Oven

HEALTHY

01. Beauty apparatus ,infrared physical therapy care





Attention about use matters
1.Preferably do not touch quartz with bare hands. If grease or chemical compound
    have been deposited on quartz, simply clean before lighting with cloth moistened
    with alcohol.
2.Disconnect installation from power supply before removing or installing a lamp.
    Prolonged looking at the lamp during operation may result in damage to the eye.
3.Keep dry.
