Specifications
Infrared halogen heating lamps1, Power:300w-5000w
2, Diameter:8mm-12mm
3, Length:160mm-2500mm
4.More than 5000hours
Infralight NIR emitters Halogen Lamp Halogne Heater IR lamp
Feature:
1.Clean: No byproducts, no pollution.
2.Safe: Quartz envelope, heat shock resistant.

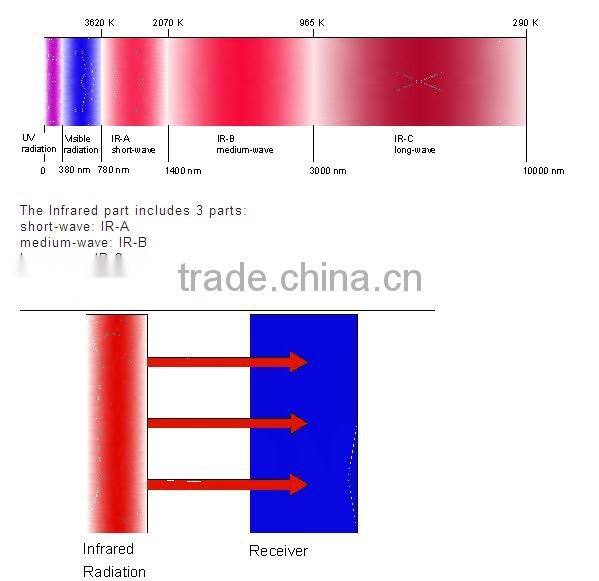

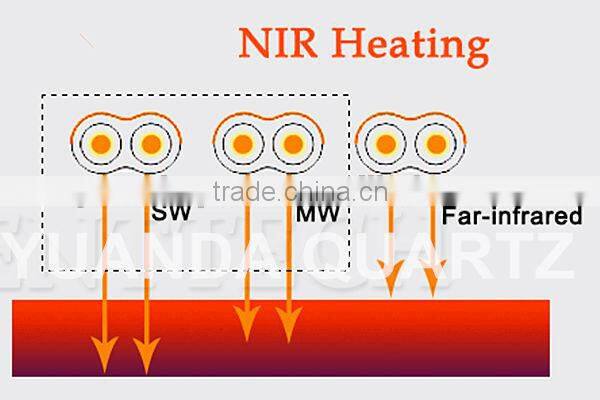

3.NIR:Most of the spectrum is located near the near-infrared shortwave area.
4. Economical:high power output, the maximum load power line is more than 100 W/cm; plane maximum output power can reach 1000 kw/m2.
5.Soon:Short heating time, especially suitable for rapid high temperature heating.
6.Long life:About6000hours
Tech info
VOLT |
110V--380V |
POWER |
100 W--2000W |
HZ |
50-60 HZ |
Electricity saving rate |
30% |
Infrared normal direction radiant rate |
94% |
Electric heat transformation rate |
>98% |
Operating temperature |
less than 1800 C |
Highest heat temperature endured |
1100 C |
Color temperature |
2000-2500 k |
Surface temperature |
500-900 C |
Continuous servicing hour |
over 6, 000 H |
TYPE
Short Wave Quartz Elements |
01.Golden Quartz Halogen Elements |
02.Clear Quartz Halogen Elements |
03.Quartz Heating Elements |
04.Twin Quartz Heating Elements |
Special shaped tube |
U /OMEGA/PEAR/ROCKET /TWIN etc |
Product show
Customer will get the best and exact price soon if the inquiry tell us
the total length,powder,voltage ,type and quantity .
MATERIAL:High quality quartz tube and tungsten filament
We also can do any Special shaped infrared heat lamp can do your drawing
.
APPLICATION
INDUSTRY MACHINERY |
01.High temperature curing for glue and printing ink |
02.PET bottle blowing and laminating |
03.Paper drying |
04.Wood drying and preheating before painting |
05.Plastic softening and synthesis cable production |
06.Industrial production oven |
07.Car painting |
08.High temperature disinfection |
FOOD DEVICE |
01.Food baking heating and heating preservation |
02.Flavor Oven |
HEALTHY |
01. Beauty apparatus ,infrared physical therapy care |
Production
Attention about use matters
1.Please do not touch quartz with bare hands. If grease or chemical compound
have been deposited on quartz, simply clean before lighting with cloth moistened
with alcohol.
2.Disconnect installation from power supply before removing or installing a lamp.
Prolonged looking at the lamp during operation may result in damage to the eye.
3.Keep dry.
Packaging: Five pieces in bubble then wooden box outside. We can also do package according to your design.
Shipping: Delivered by sea or by air when the weight is heavy, Usually fast deliver by DHL/FEDEX/ TNT/ UPS.
1.Reply you soon.
2.Customize size are welcome,OEM and ODM are welcome. Sample order are welcome.
3.Sample Policy:We can offer free samples ,just carriage paid by buyers.
4.Delivery the goods to our customers with speed and precision.
5.Payment:T/T (If amount >1000USD, can do 30% deposit in advance, 70% before shipment); Paypal ;L/C at sight ; Escrow ; One Touch
We can do OEM and customized for you according to your request.
Warmly welcome to your design.What you need is what we seek!
Customer will get the best and exact price soon if the inquiry
tell us the total length,powder,voltage ,type and quantity .
