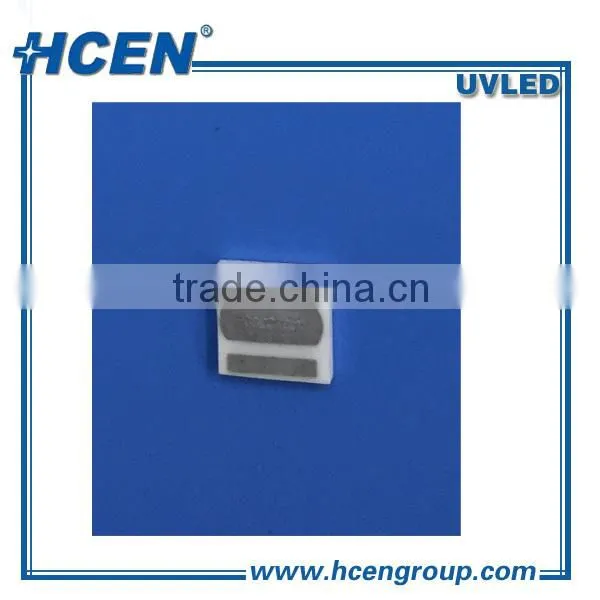

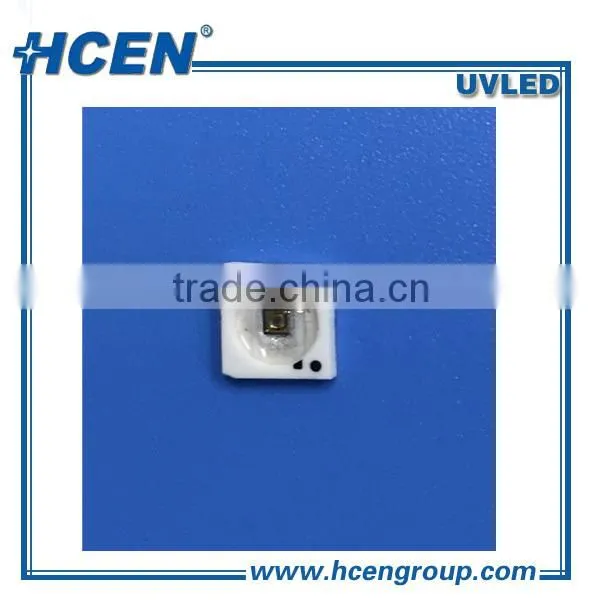

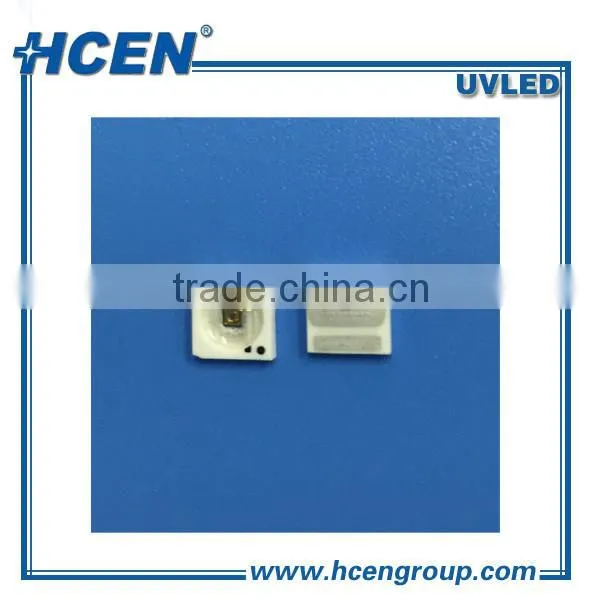

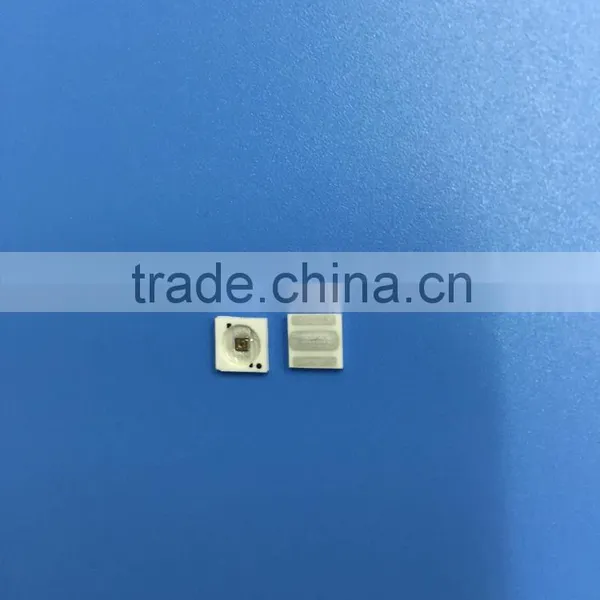

LED UV Surface Mount (SMD) Type Germicidal UV C LED 270-280nm
Features
1. Quartz Glass PKG

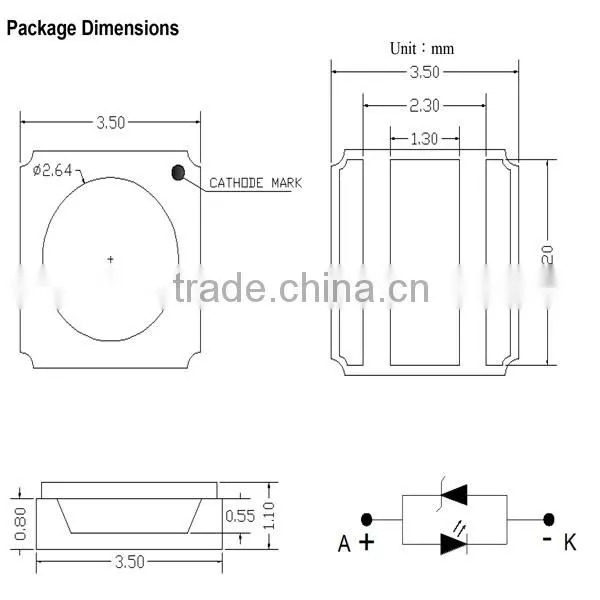

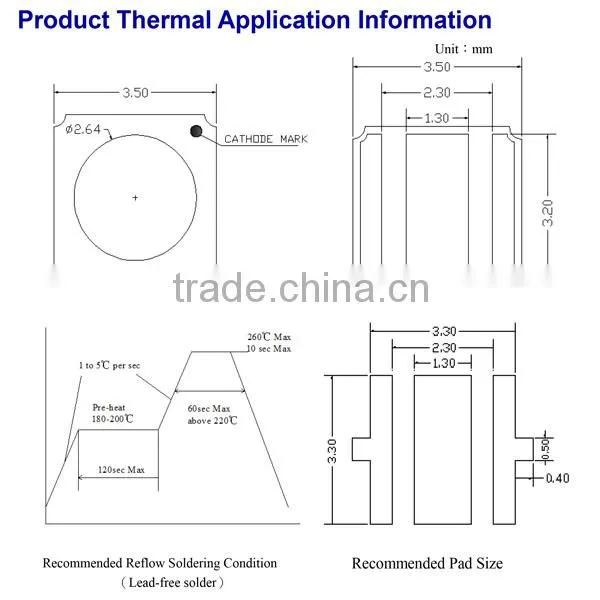

2. Dimension 3.5mm×3.5mm×1.0mm
3. Long operating life
4. High reliability
5. RoHS compliant
Applications

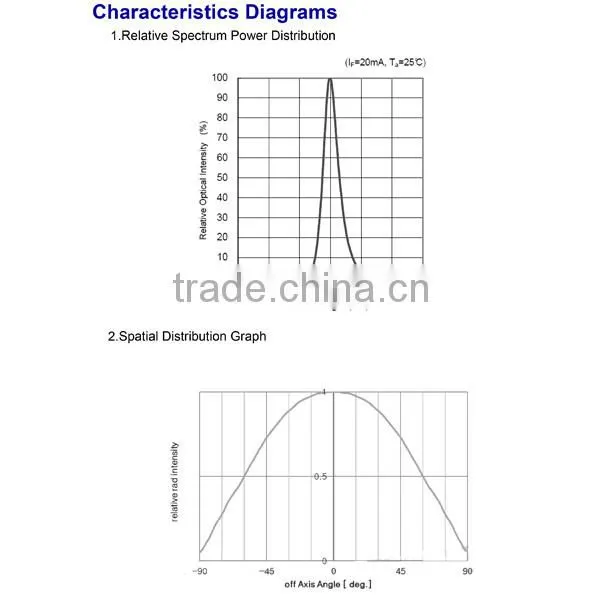

Characteristics of UV LED
(1) Absolute Maximum Ratings at TA=25°C
Parameter |
Symbol |
Rating |
Units |
Input Power |
Pi |
0.2 |
W |
|
Operation Current plused<5μs,1KHz Duty cycle is 5% |
IF |
100 |
mA |
Operating Temperature Range |
Topr |
-30°C To +55°C |
|
Storage Temperature Range |
Tstg |
-30°C To +55°C |
|
(2) Electrical / Optical Characteristics
Ta=25℃ RH=40%
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
Peak Wavelength[1] |
λp |
— |
280 |
— |
nm |
Radiation Flux [2](20mA) |
Φe[3] |
0.5 |
— |
2.2 |
mW |
Forward Voltage [4] |
VF |
5.0 |
— |
8.0 |
V |
Spectrum Half Width |
Δλ |
— |
10 |
— |
nm |
View Angle |
θ1/2 |
— |
120 |
— |
deg |
Notes:
1.Peak wavelength measurement tolerance:±2nm
2.Radiant flux measurement tolerance:±10%
3.Φe is the total radiant Flux as measured with an integrated sphere
4.Forward voltage measurement tolerance:±3%
Sample Availability & Policy:
We will provide samples of products upon customer's request. To help us decide favorably on sample requests, we ask interested customers to send comprehensive buyer information for our review.
Guarantees/Warranties/Terms and Conditions:
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any products found to be defective under normal use.
Export/Import Processing Support:
We are according to your requirements and provide export services to your location via express delivery.
After Sales Service:
Our customer service personnel are experienced product specialists who can answer your questions five days a week from 9am to 5am. Please contact us today.
Feel free to contact at Skype:Rita_Zhl
HCEN group is the professional manufactuer of UV LED emiter.
R&D team member back from Japan and Germany.
we can provide customized solution for your uv led applicaiton case.
Feel free to contact:
Shenzhen HCEN Technology Co., Ltd.
Add:Rm 1704B-1705, Tower A, Times Bldg, Tian'an Cyber Park, Futian Distric ,Shenzhen, China
