UV Disinfection 270nm,275nm, 280nm Germicidal Uvc Led

UV Disinfection 270nm,275nm, 280nm Germicidal Uvc Led thumbnail-1
UV Disinfection 270nm,275nm, 280nm Germicidal Uvc Led thumbnail-2
UV Disinfection 270nm,275nm, 280nm Germicidal Uvc Led thumbnail-3
UV Disinfection 270nm,275nm, 280nm Germicidal Uvc Led thumbnail-4
UV Disinfection 270nm,275nm, 280nm Germicidal Uvc Led thumbnail-5
UV Disinfection 270nm,275nm, 280nm Germicidal Uvc Led thumbnail-6
UV Disinfection 270nm,275nm, 280nm Germicidal Uvc Led photo-1
UV Disinfection 270nm,275nm, 280nm Germicidal Uvc Led photo-2
UV Disinfection 270nm,275nm, 280nm Germicidal Uvc Led photo-3
UV Disinfection 270nm,275nm, 280nm Germicidal Uvc Led photo-4
UV Disinfection 270nm,275nm, 280nm Germicidal Uvc Led photo-5
UV Disinfection 270nm,275nm, 280nm Germicidal Uvc Led photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
UV280Q35
Chip Material:
InGaN
Emitting Color:
Other, Purple
Contact Supplier Request Quote Chat Now
Shenzhen HCEN Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number UV280Q35
Chip Material InGaN
Emitting Color Other, Purple
Luminous Flux(lm) 0.5-2.2mW
Power Other, 0.1W-0.14W
Power Dissipation 0.1
Color Temperature Ultraviolet
Operating Temperature(℃) -30, +55
Storage Temperature(℃) -30, +55
Place of Origin Guangdong, China
Brand Name HCEN
Certification CE
Product Description

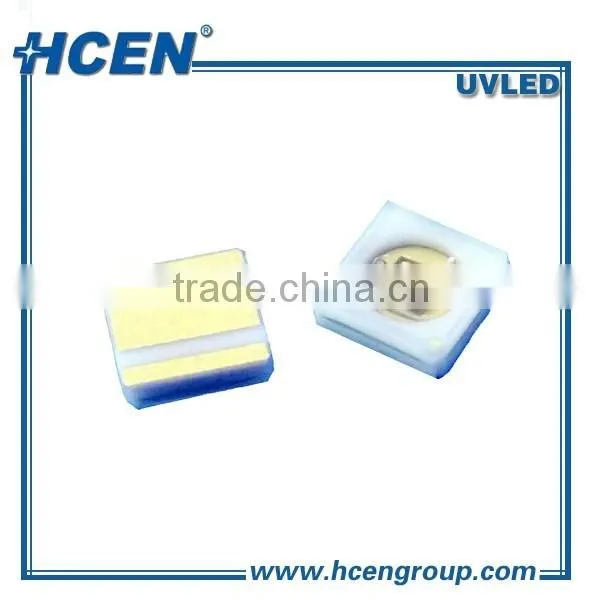

UV disinfection 270nm,275nm, 280nm germicidal uvc led

Setting Information
Item
UV280Q35 Series

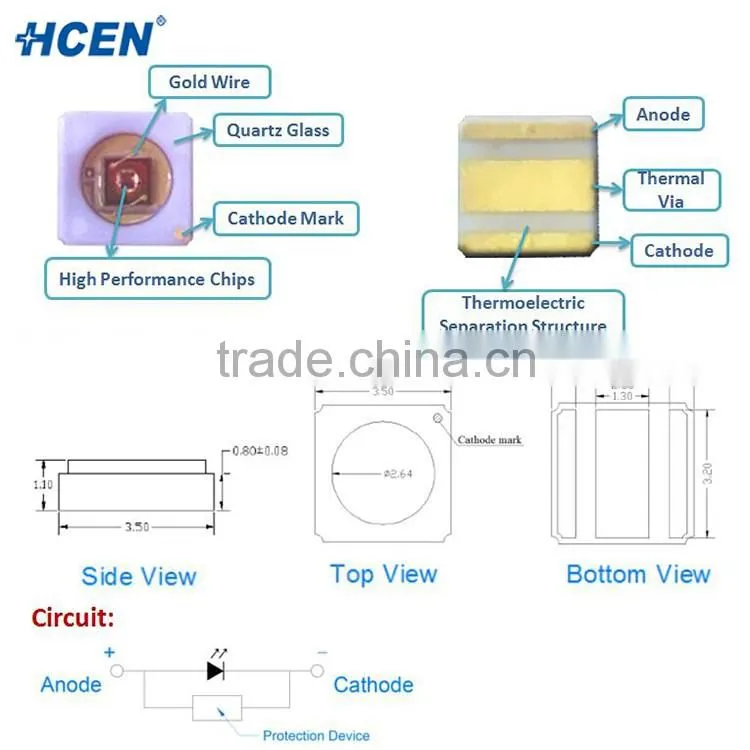

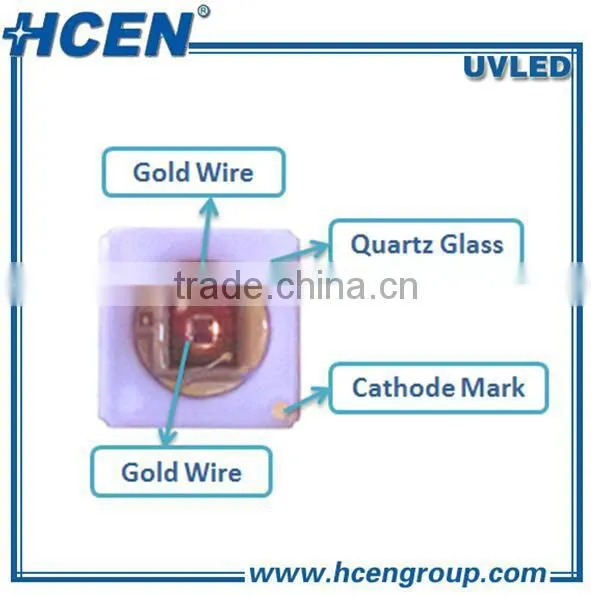

Packing Type
Quartz Glass Package , SMD Package
Packing Material
Quartz Glass,Ceramic, Metal
Input Power
1.0W-1.4W
Light Color
Purple
Chip Material
InGaN
Wire Material
Gold
Sealing Performance
Hermetic Package

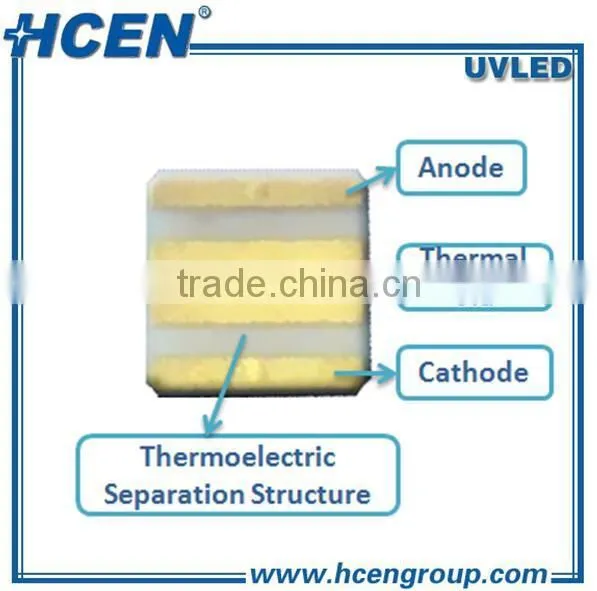

Heat Dissipation
Thermoelectric Separation Structure
ESD Protection
Zener Diode
Lifespan [1]
5000 Hours
Certificate
CE, RoHS

[1]Lifespan of our products means the time when the Lumens Depreciation happens, not means the UV LEDs are unable to use.

Specification of UV LED:

1. Electrical / Optical Characteristics ( (I F =20mA,Ta=25 ℃,RH=40%) )
Parameter
Symbol
 Units
HC-UV280Q35
HC-UV280Q35
HC-UV280Q35
Peak Wavelength [1]
λ p
nm
270-280
Radiation Flux [2]
Φ e [3]
mW
0.5-1
1-1.6
1.6-2.2
Forward Voltage [4]
VF
V
5.5-7.0
Spectrum Half Width
Δλ
nm
10
View Angle
2θ 1/2
deg
120

Notes:
[1].Peak wavelength measurement tolerance:±3nm
[2].Radiant flux measurement tolerance:±10%
[3].Φ e is the total radiant Flux as measured with an integrated sphere
[4].Forward voltage measurement tolerance:±3%


2. Absolute Maximum Ratings ( (T a =25°C) )

Parameter
Symbol
 Units
HC-UV280Q35
       HC-UV280Q35
      HC-UV280Q35
Maximum Rating
Forward Current
I Fmax
mA
20
Maximum Pulsed
Forward Current
(Duty cycle 5%,1KHz)

I FPmax

mA

100
Maximum Rating
Junction Temperature
T jmax
°C
125
Operating Temperature

Range
T opr
°C
-30 - +55
Storage Temperature

Range
T stg
°C
-30 - +55
Applications

UVC for Sterilization

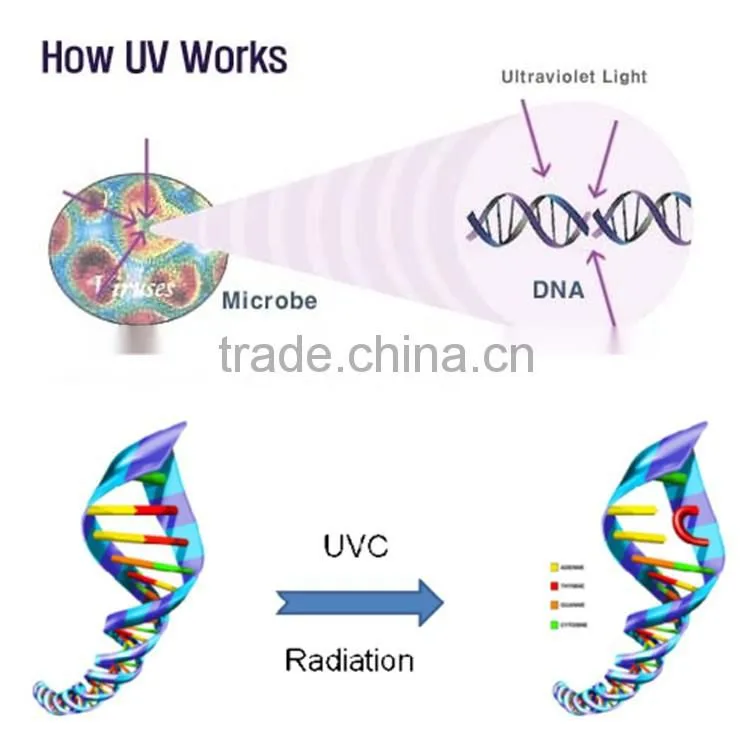

Because of the characteristics of low wavelength and high energy, UVC light can damage the molecular structure of DNA(Desoxyribonucleic Acid) and RNA(Ribonucleic Acid)in the cells of microorganism(pathogens such as bacteria, virus, spore) within a short time(3s), thus the cells can’t regeneration, and the bacteria and virus lose the ability of self-reproduction. Therefore, the UVC LEDs can be widely applied in different desinfection products for water, air and surface sterilization.

Click the above picture to know more our products.

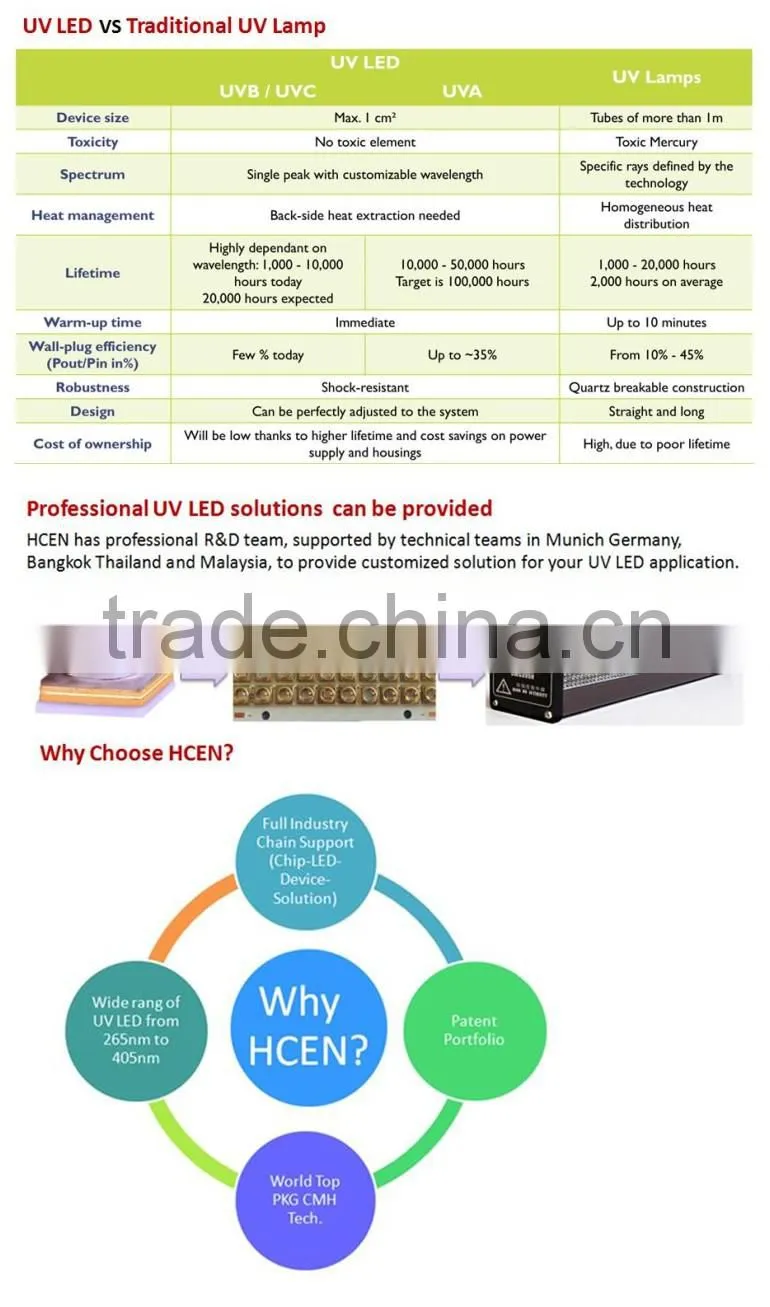

Our Advantages

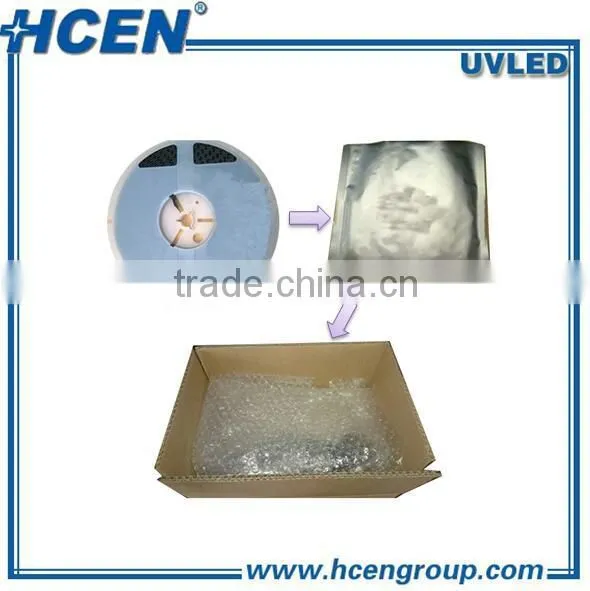

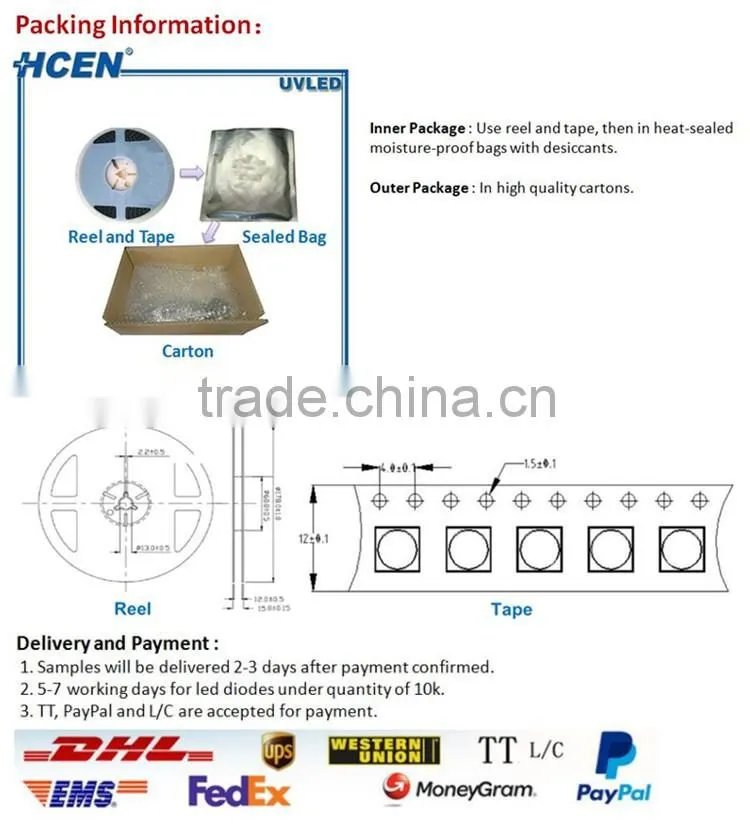

Packing & Delivery
Company Information

Shenzhen HCEN Technology CO.,LTD was registered in Shenzhen on October 17, 2014, with USD35 million registered capital. After two years of fast development, we have established branches in Shanghai, Beijing and Hong Kong, and have accumulated rich global customer resource.

HCEN is a manufacturer specialized in UV LED encapsulation and various kinds of UV LED application and solutions.We have professional R&D team, supported by technical teams in Munich Germany, Bangkok Thailand and Malaysia, to provide customized solution for your UV LED application.

HCEN Group pay a lot attention to technology research and development, we invested 10%-20% of sales volume as a R&D costs each year!

Certifications
Our Service

Professional UV LED Solution Team

HCEN is a professional UV LED solution provider, supported by 22 application engineers and R&D experts backing from Japan and Germany. They are experienced in UV LED encapsulation, optical design and led cooling solution. Tell us your application and then we provide you the tailored solutions.

Guarantees/Warranties/Terms and Conditions:

We guarantee that our products are of high quality and we offer 12 months-24 months warranty and free maintenance for the problem of our responsibility.

Sample Policy:


Samples can be offered upon customer's request. You'd better tell us the comprehensive information of your requirements, so that we can recommend the most suitable products for you.


After-sale Service:


Our customer service personnel are experienced product specialists who can answer your questions five days a week from 9am to 5pm. Any questions just feel free to contact.

FAQ
Q1: Are you a Factory or Trading Company?

Answer: Factory.

Q2: How can I visit your factory?

Answer: Since you come to Shenzhen, contact us before you come, we will pick you up directly to our company.

Q3: When can I get the price?

Answer: Within 24 hours we get your inquiry and confirm the needs and solution.
Q4: How can I get a sample to check your quality?

Answer: After price and payment confirmation, we are honored to send you.
Q5: Can you provide a solution for UV LED substitute for UV Lamp ?

Answer: Yes, pls provide UV Lamp data sheet, wavelength , required optical power or radiant intensity . radiant distance and curing area, more info. will help us to provide a exact solution for your application.
Q6: What’s the universal Lead-Time for order delivery?

Answer: 1)7-15 Working days for led diodes under quantity of 10k.
                  2)10-30 Working days for UVC LED module
                  3) 15-30 Working days for UVC application products

                  4) Samples will be delivered as soon as payment confirmed .
