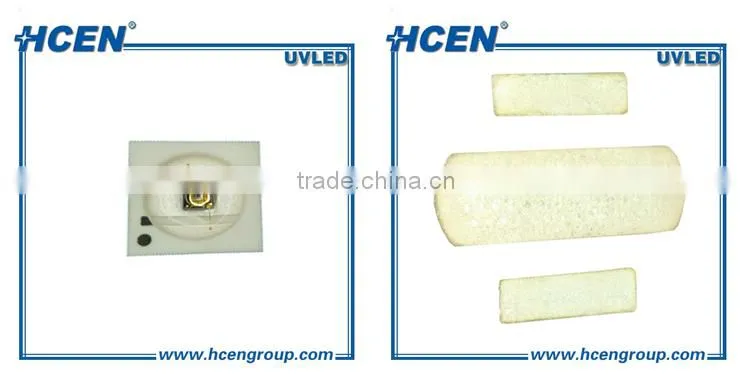

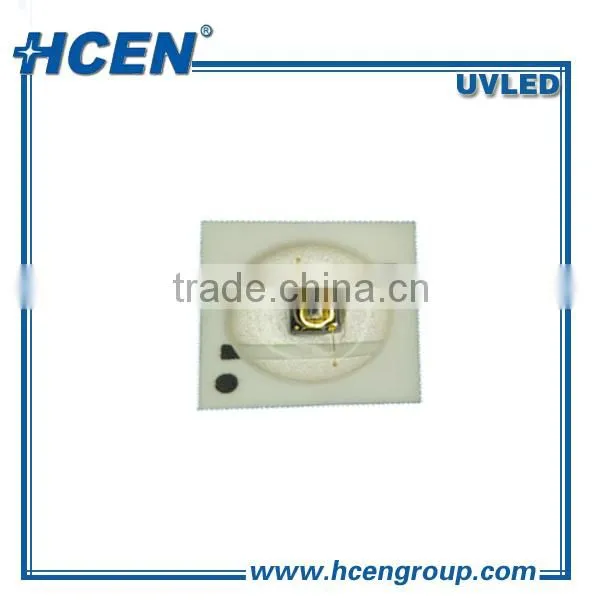

265nm (260-270nm) SMD Type Germicidal UVC LED for UV Disinfection
Features of UV265R50 UV LED
1. Organic Package
2. Dimension 5.0mm*5.0mm*1.0mm
3. Long Operating Life
4. RoHS Compliant
5. High Reliability
Applications
1. Fluorescent Spectroscopy
2. Sensors And Monitors
3. Currency Detector
4. Phototherapy
Characteristics of UV LED
(1) Electrial / Optical Characteristics ( Ta=25°C, RH=40%)
| Parameter | Symbol | Min. | Typ. | Max. | Units |
| Peak Wavelength[1] | λp | 260 | 265 | 270 | nm |
| Radiant Flux [2](20mA) | Φe[3] | 0.3 | — | 0.5 | mW |
| Forward Voltage[4] | VF | 5.5 |
— | 7 | V |
| Spectrum Half Width | Δλ | — | 10 | — | nm |
| View Angle | θ1/2 | — | 140 | — | deg |
Notes:
1. Peak wavelength measurement tolerance: ± 3nm
2. Radiant flux measurement tolerance: ± 10%
3. Φe is the total radiant flux as measured with an integrated sphere
4. Forward voltage measurement tolerance: ± 3%
(2) Absolute Maximum Ratings ( Ta=25°C)
| Parameter | Symbol | Rating | Units |
| Input Power | Pi | 0.2 | W |
| Operation Current plused <5μs, 1KHz Duty cycle is 5% | IF | 100 | mA |
| Operation Temperature Ranage | Topr | -30°C To +55°C | |
| Storage Temperature Range | Tstg | -30°C To +55°C | |

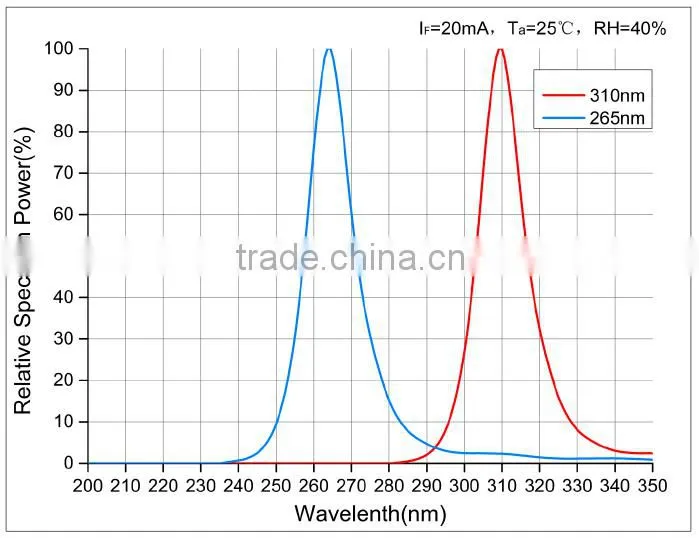

Relative Spectrum Power Distribution

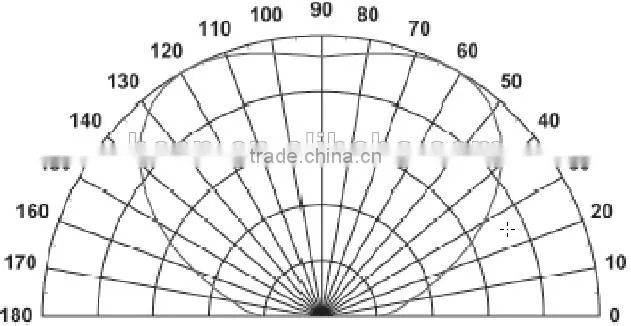

Spatial Distribution Graph

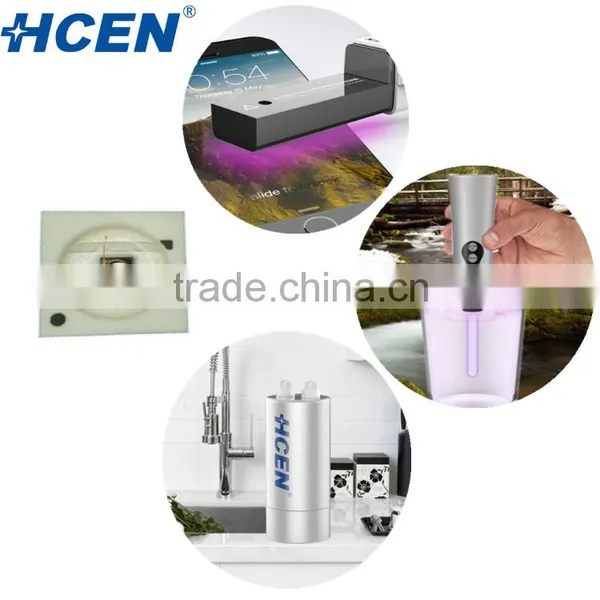

Product Application Information
UVC Appllication

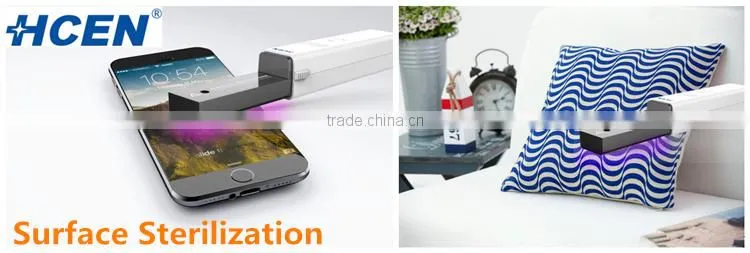

UVC LED can be used in a variety of applications, such as food, air and water sterilization&purification.

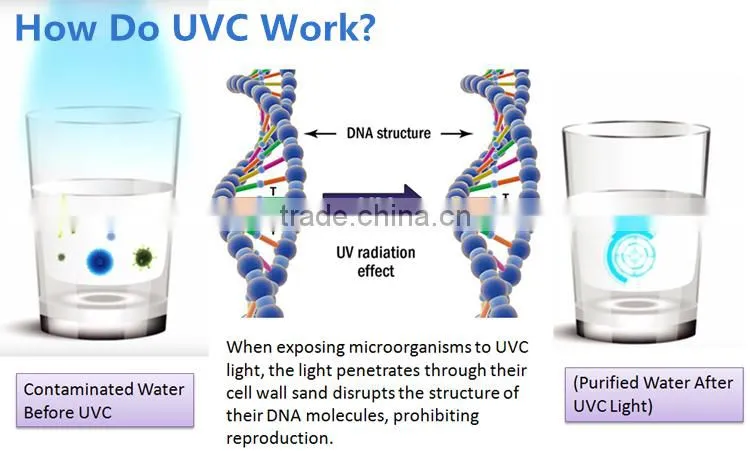

As short-wavelength ultraviolet light, UVC light can be used to kill or inactivate microorganisms by destroying nucleic acids and disrupting their DNA, leaving them unable to perform vital cellular functions.

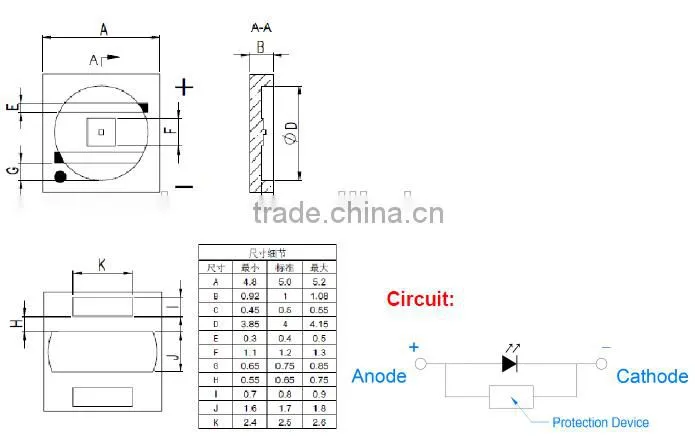

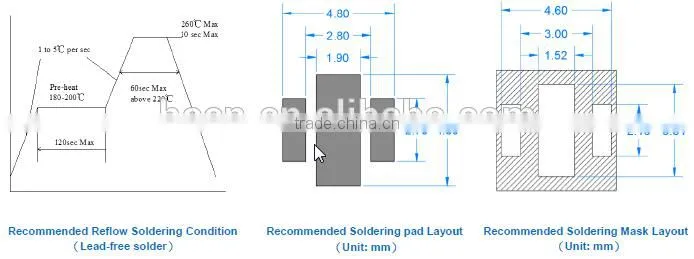

Package Dimensions
Shipping
The product will be shipped by international express, which is fast and safe.
UV LED Solution Team
HCEN is a professional UV solution provider, supported by 22 application engineers and R&D experts backing from Japan and Germany, they are experienced in UV encapsulation, optical design and LED cooling solution. Tell us your application and then we provide you the tailored solutions.
Sample Policy
Free sample is available for testing, clients only need to pay the sample shipping cost.
Guarantees/Warranties/Terms and Conditions
We offer 12-24 months warranty and maintenance for our products if it's quality problem caused by manufacturer.
After Sales Serivce
Our customers service personnel are experienced product specialists who answer your questions 9:00AM - 17:00PM from Monday to Friday.
Please feel free to contact us if you have any question.
HCEN group is the professional manufactuer of UV LED.
R&D team member back from Japan and Germany.
We can provide customized solution for your uv led applicaiton case.
