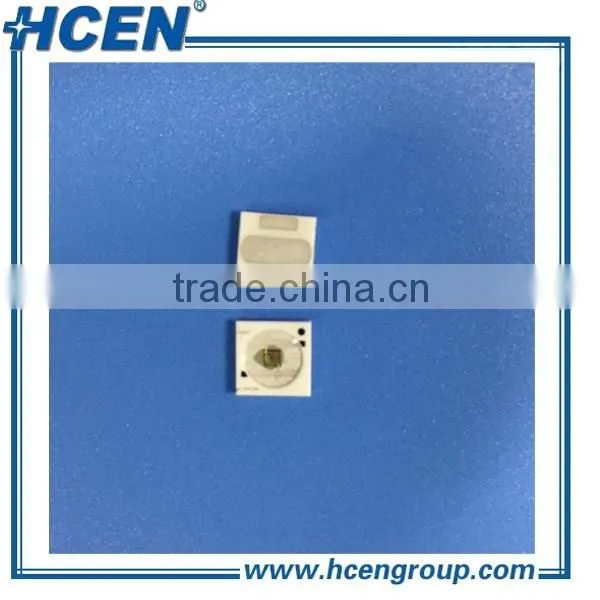

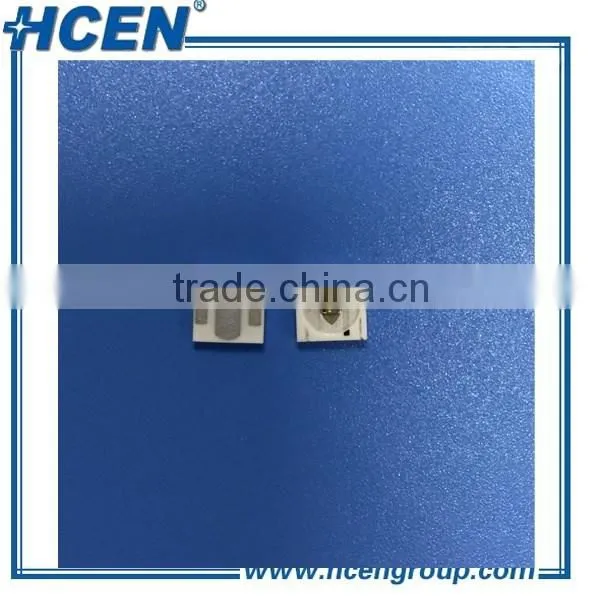

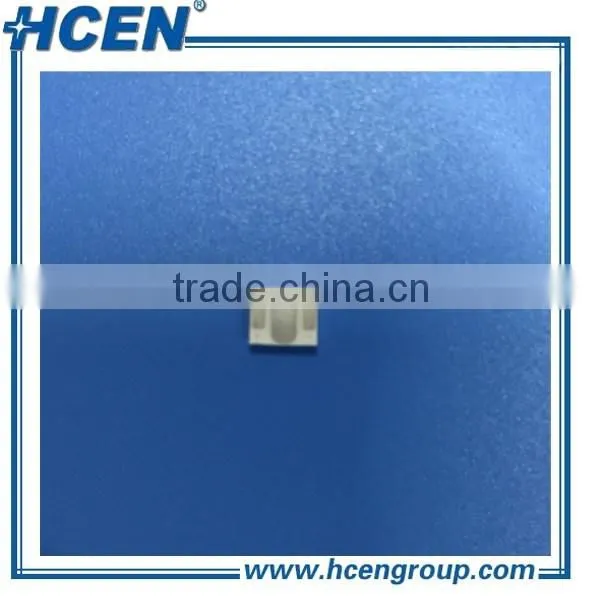

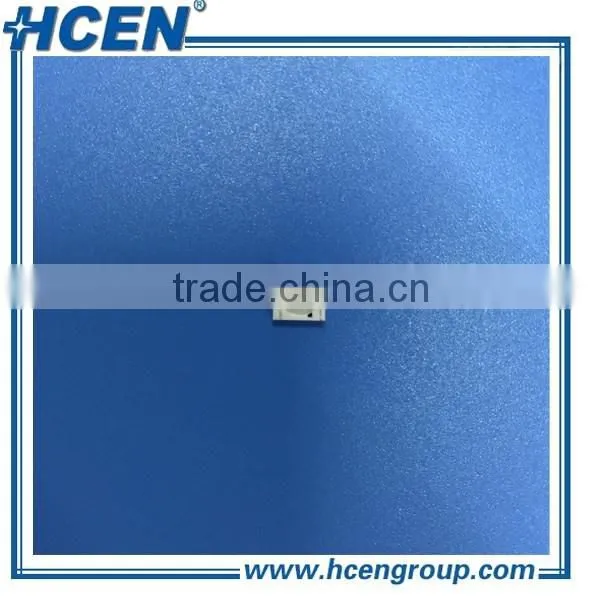

RoHs Compliant 5050 SMD Type Ultraviolet Diode Phototherapy 310nm UV LED
UV Diode SMD Type Phototherapy 310nm UV B LED
Features
1. 5050 SMD Type
2. Organic package
3. Dimension 5.0mm x 5.0mm x 1.0mm
4. Long operating life
5. High reliability
6. Superior ESD protection
7. RoHS compliant
Applications
1. Fluorescent spectroscopy
2. Sensors and monitors
3. Bio-analysis/detection
4. Phototherapy
5. Medical Equipment

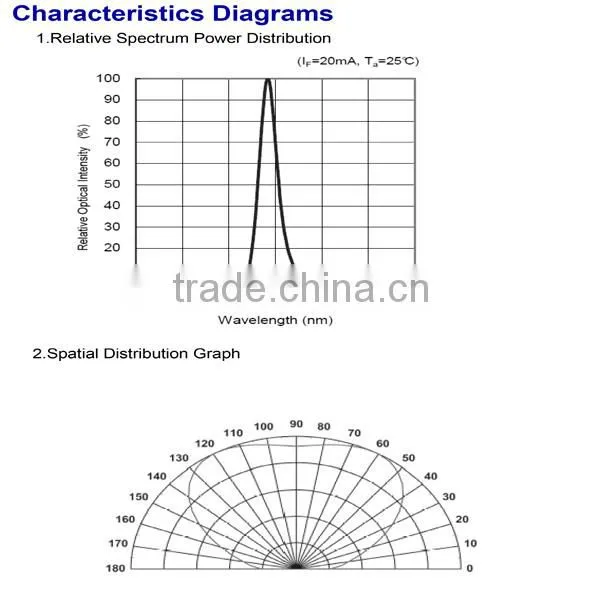

Characteristics of UV LED
(1) Absolute Maximum Ratings at TA=25°C
Parameter |
Symbol |
Rating |
Units |
Input Power |
Pi |
0.2 |
W |
|
DC Forward Current plused <5μs,1KHz Duty cycle is 5% |
IF |
100 |
mA |
Operating Temperature Range |
Topr |
-30°C To +55°C |
|
Storage Temperature Range |
Tstg |
-30°C To +55°C |
|
(2) Electrical / Optical Characteristics
Ta=25℃ RH=40%
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
Peak Wavelength[1] |
λp |
— |
310 |
— |
nm |
Radiation Flux [2](20mA) |
Φe[3] |
0.5 |
— |
3.0 |
mW |
Forward Voltage [4] |
VF |
4.5 |
— |
6.5 |
V |
Spectrum Half Width |
Δλ |
— |
10 |
— |
nm |
View Angle |
θ1/2 |
— |
140 |
— |
deg |
Notes:
1.Peak wavelength measurement tolerance:±2nm
2.Radiant flux measurement tolerance:±10%
3.Φe is the total radiant Flux as measured with an integrated sphere
4.Forward voltage measurement tolerance:±3%
UV LED Solution Team
HCEN is a professional UV LED solution provider,supported by 22 application engineers and R&D experts backing from Japan and Germany.They are experienced in UV LED encapsulation,optical design and led cooling solution. Tell us your application and then we provide you the tailored solutions.
Sample Policy:
We support free samples for testing! You just need to pay the shipping cost.
Guarantees/Warranties/Terms and Conditions:
We guarantee our products to be free from manufacturer defects.Warranty and free maintance
time about 12 month-24 month.
After Sales Service:
Our customer service personnel are experienced product specialists who can answer your questions five days a week from 9am to 5am. Any questions just feel free to contact.

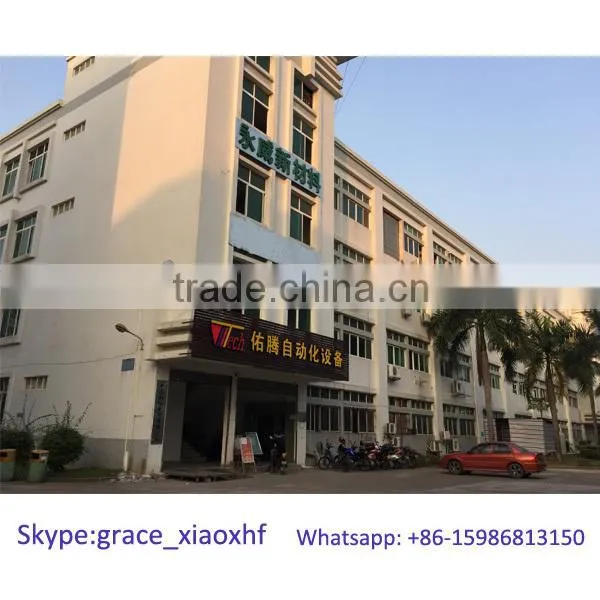

Shenzhen HCEN Technology CO.,LTD located in the east bank of the Pearl River Delta and near Hong Kong.
HCEN brand is registered in October 17, 2014, with registered capital is RMB200 million RMB.
Headquartered in Shenzhen, HCEN also have branch in Shanghai, Beijing and Hong Kong. We have marketing and technical supporting teams in Munich Germany, Bangkok Thailand and Malaysia .
HCEN aimed to be a global new technology producer and solution provider. We dedicated in UV (Ultraviolet) LED diode ,curing system and diverse application of UV LED .
As a promoter of UV LED technology, HCEN own professional UV LED R&D team ,souluiton engineers to give full support of our customer. HCEN invest about 10%-20% of the sales volume to develop new products
Q1:Are you a Factory or Trading Company?
Answer: Factory.
Q2:How can I visit your factory?
Answer:Since you come to Shenzhen,contact us before you come,we will pick you up directly to
our company.
Q3:When can I get the price?
Answer:Within 24 hours we get your inquiry and confirm the needs and solution.
Q4:How can I get a sample to check your quality?
Answer: After price and payment confirmation, we are honored to send you.
Q5:Can you provide a solution for UV LED substitute for UV Lamp ?
Answer: Pls provide UV Lamp data heet,wavelength,required optial power or radiant intensity . radiant distance and curing area,more info. will help us to provide a exact solution for your application.
Q6:What’s the universal Lead-Time for order delivery?
Answer:1)7-15 Working days for led diodes undering quantity of 10k.
2)10-30 Working days for curing system and UV LED module
3)Samples will be delivered as soon as payment confirmed .
Q7:What’s the payment terms?
Answer:We can accept T/T,and Paypal.
