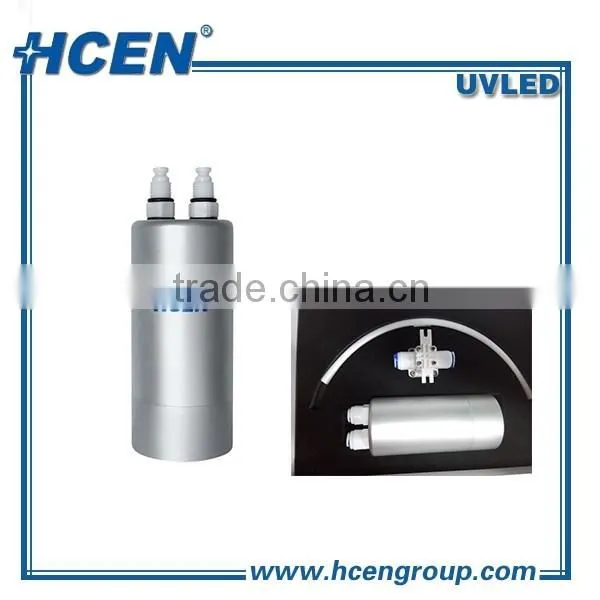

Small Flow Rate Uv Water Sterilizer Drinking Water
Features
1. UV LED 280nm High Efficiency Germicidal Module
2. Deep UV Killing 99.9% bacterial
3. Purify Both Fluid Water and Static Water
4. 1W Super low power consumption
5. Water Flow Rate -0.53Gallon Per Minute
6. Aluminum Alloy Housing
7. Cost Effective And Long LED Operation Life

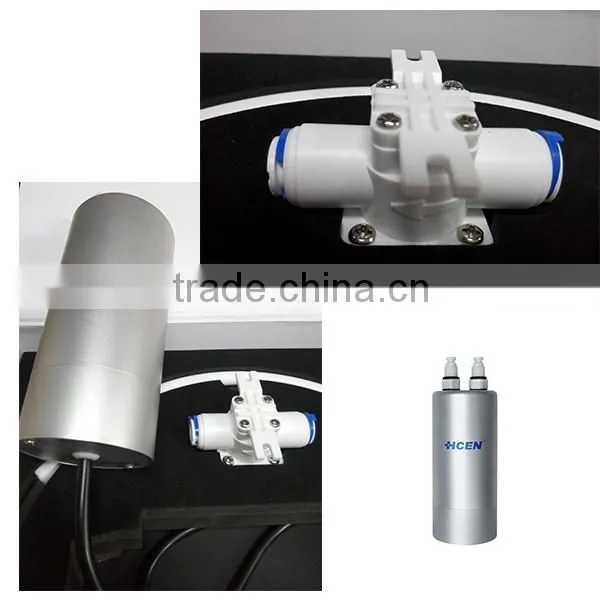

8. Easy to Install Directly
Application
1. Fluid Wate and Static Water
2. Residential Water
3. Home Drinking Water
4. Drinking Water Fountain /Dispenser
The UV LED water sterilizer use internationally advanced UVC led to sterilize; Sterilization rate
can reach 99.9%;
Technical characteristic
Items |
Symbol |
Min |
Typ. |
Max. |
Units |
Input Voltage |
Vi |
100 |
220 |
240 |
V |
Power Dissipation |
Pd |
--- |
0.7 |
--- |
W |
water-carrying capacity |
L |
--- |
1.5 |
--- |
L/min |
Total Length |
L |
--- |
158 |
--- |
mm |
Net Weight |
Wei. |
--- |
|
--- |
g |
Estimated Life |
Life |
--- |
3000 |
--- |
hour |
Install and Adjust
UVC band by the short wavelengths of ultraviolet ray, high energy, can destroy microbes
in a short time the body (such as bacteria, virus, spores pathogens) DNA or RNA in the
cells , the molecular structure of the cell cannot regenerate, bacteria and viruses lose
ability to replicate.
Characteristics of this kind of UV LED
(1) Absolute Maximum Ratings at TA=25°C
Parameter |
Symbol |
Rating |
Units |
Input Power |
Pi |
0.2 |
W |
|
DC Forward Current plused <5μs,1KHz Duty cycle is 5% |
IF |
100 |
mA |
Operating Temperature Range |
Topr |
-30°C To +55°C |
|
Storage Temperature Range |
Tstg |
-30°C To +55°C |
|
(2) Electrical / Optical Characteristics
Ta=25℃ RH=40%
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
Peak Wavelength[1] |
λp |
— |
280 |
— |
nm |
Radiation Flux [2](20mA) |
Φe[3] |
0.5 |
— |
2.2 |
mW |
Forward Voltage [4] |
VF |
5.0 |
— |
8.0 |
V |
Spectrum Half Width |
Δλ |
— |
10 |
— |
nm |
View Angle |
θ1/2 |
— |
117 |
— |
deg |
Sample Availability & Policy:
We will provide samples of products upon customer's request. To help us decide favorably on sample requests, we ask interested customers to send comprehensive buyer information for our review.
Guarantees/Warranties/Terms and Conditions:
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any products found to be defective under normal use.
Export/Import Processing Support:
We are according to your requirements and provide export services to your location via express delivery.
After Sales Service:
Our customer service personnel are experienced product specialists who can answer your questions five days a week from 9am to 5am. Please contact us today.
Skype:Rita_Zhl
HCEN group is the professional manufactuer of UV LED emiter.
R&D team member back from Japan and Germany.
we can provide customized solution for your uv led applicaiton case.
Feel free to contact:
Shenzhen HCEN Technology Co., Ltd.
Add:Rm 1704B-1705, Tower A, Times Bldg, Tian'an Cyber Park, Futian Distric ,Shenzhen, China
Tel: +86-(0)755-88323956
Email: rita_zeng(@)
Skype: Rita_Zhl
Web:
